Hardware Installation

First, insert the SFP transceiver into the SFP module cage. Notice that the triangle mark is at

the bottom of the module.

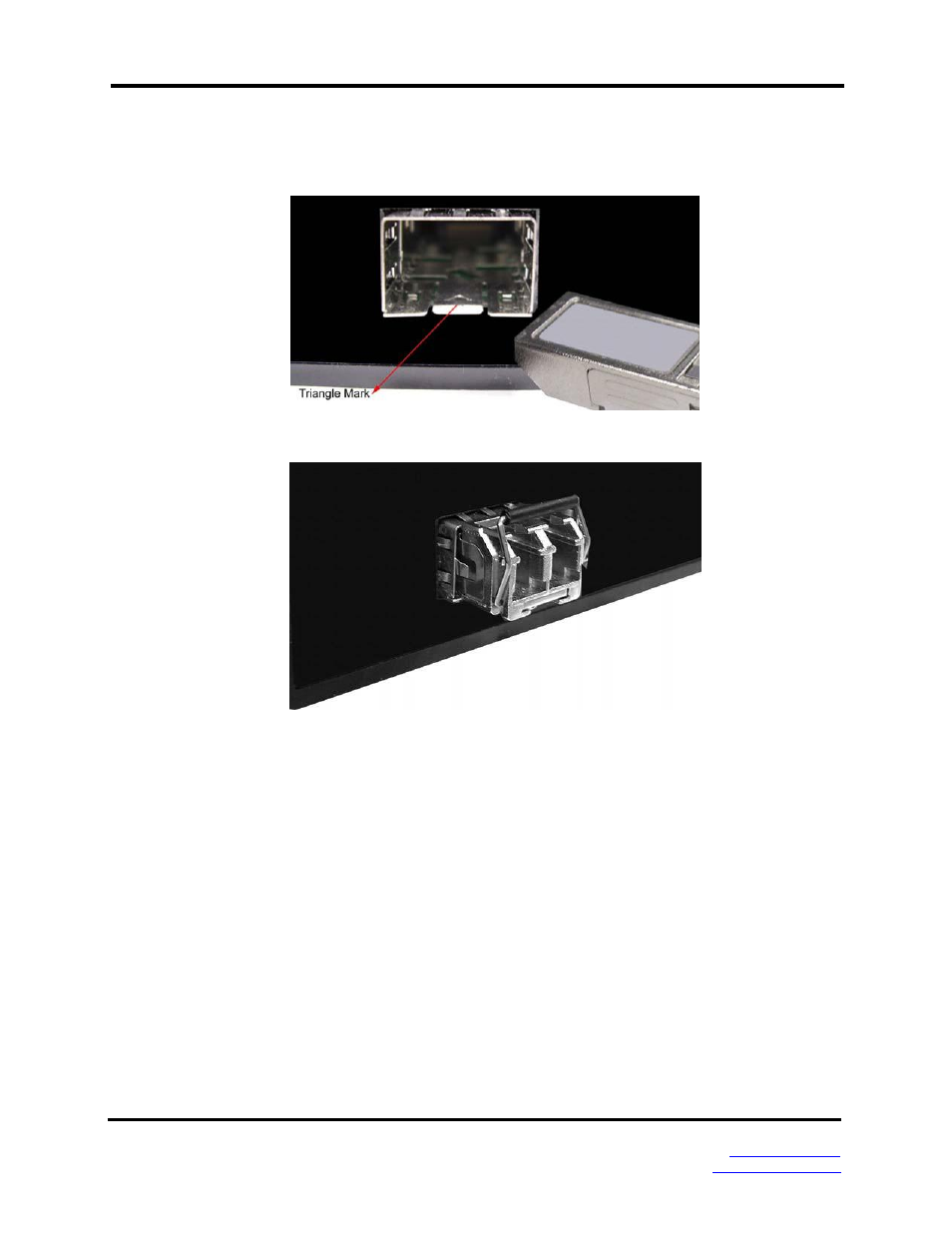

Transceiver to the SFP module

Transceiver Inserted

Make sure the module is aligned correctly and then slide the module into the SFP slot until

a click is heard.

Second, insert the fiber cable into the transceiver.
