Network Application

4.2 Coupling Ring Application

In the network, it may have more than one X-Ring group. By using the coupling ring

function, it can connect each X-Ring for redundant backup. It can ensure that data

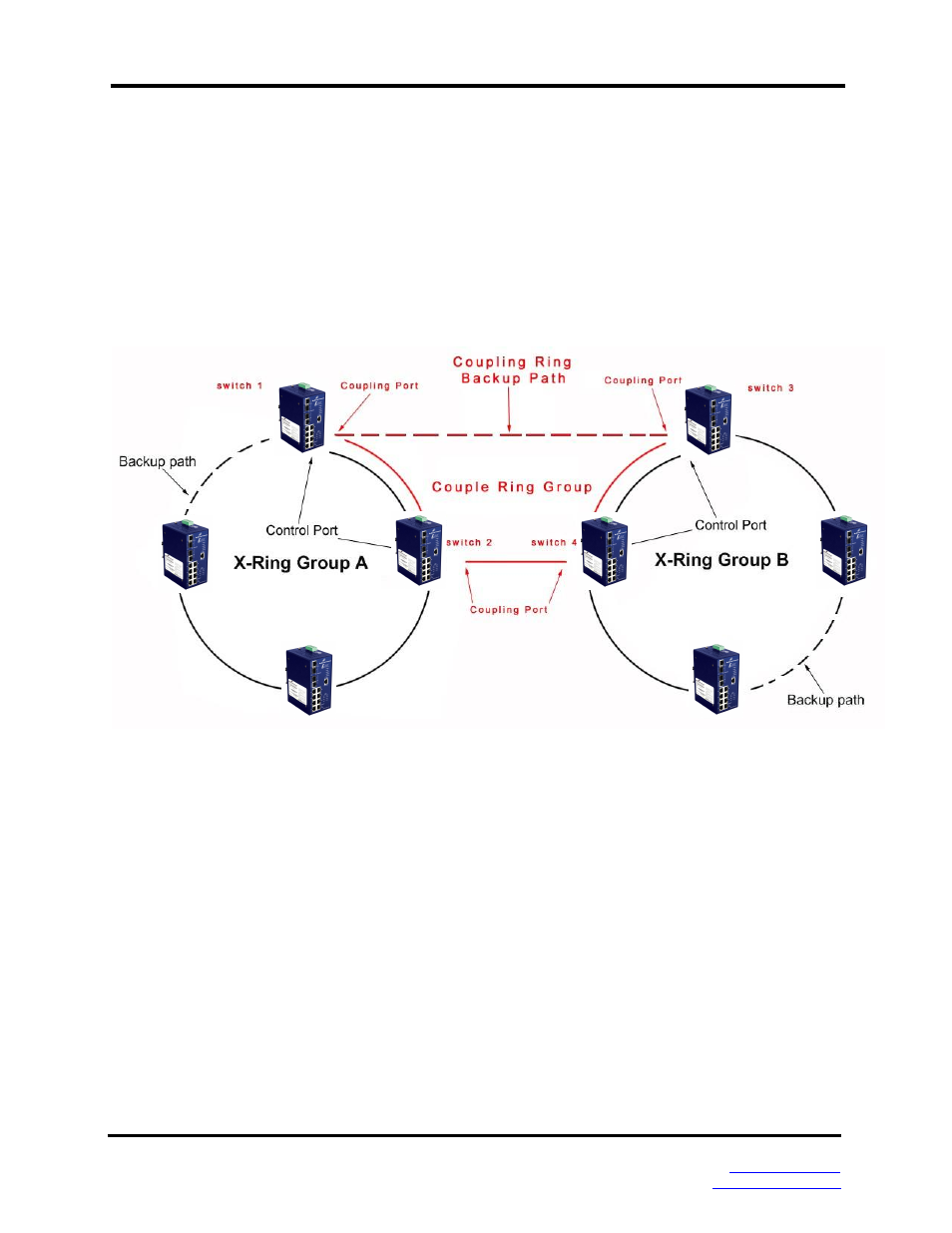

transmission between two ring groups does not fail. The following figure is a sample of

coupling ring application.
