Hardware Installation
3.5 Wiring the Fault Alarm Contact

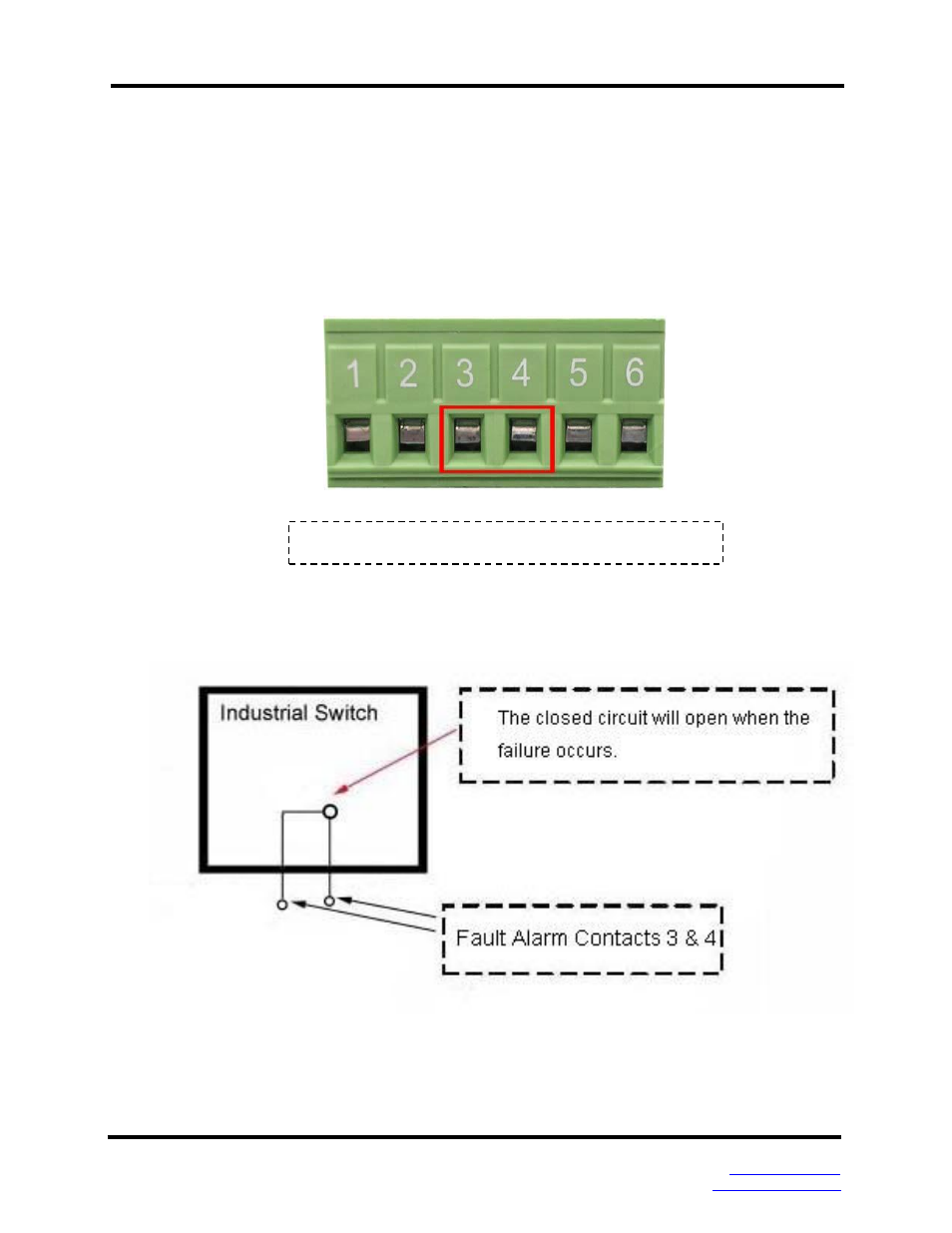

The fault alarm contact is in the middle of the terminal block connector as shown below. If
one of the power sources fails or a port link failure occurs a fault will be detected causing
the circuit to open. The following illustration shows an application example for wiring the
fault alarm contacts.
Insert the wires into the fault alarm contacts
[NOTE] The wire gauge for the terminal block should be 12 to 24 AWG.
