Hardware Installation

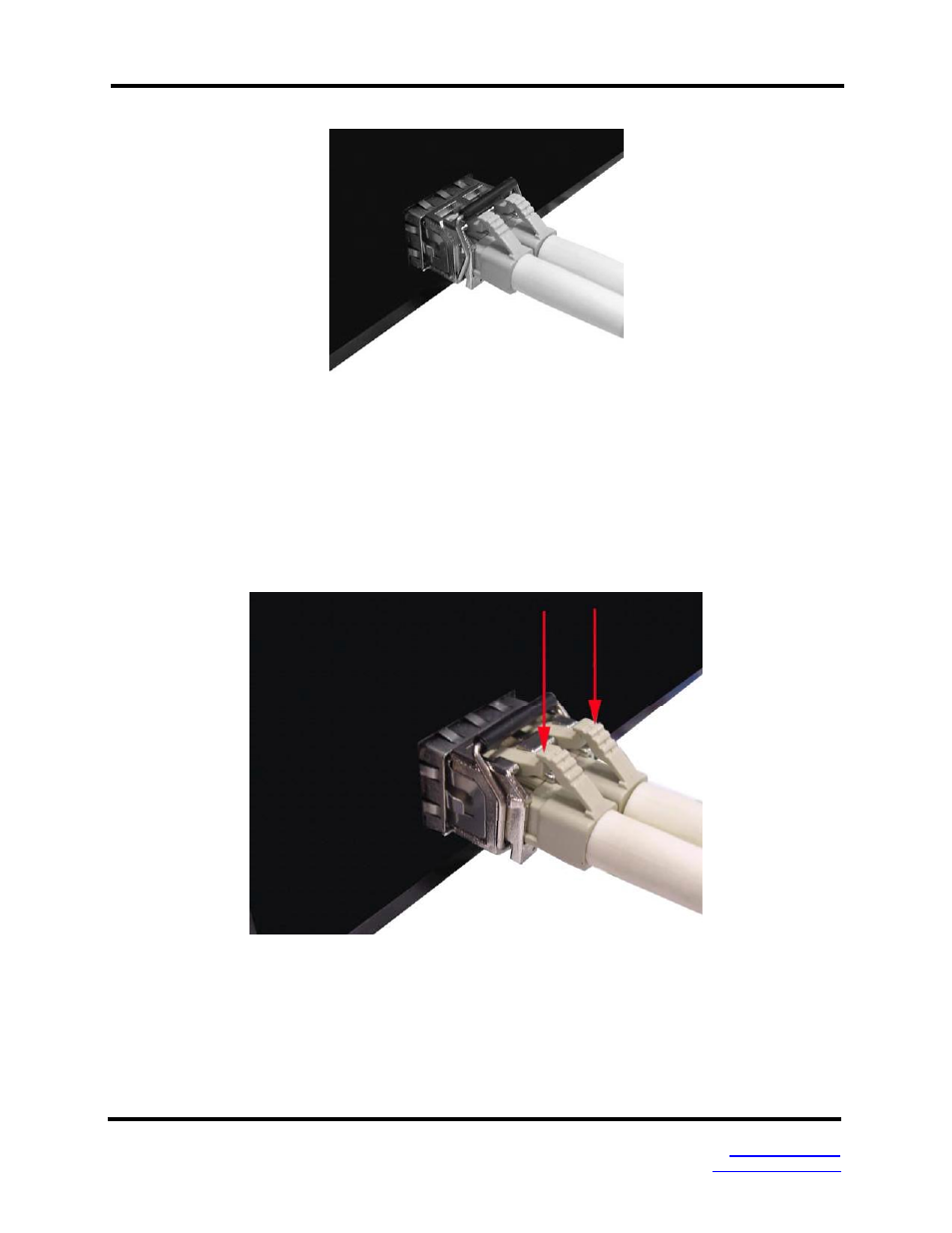

LC connector to the transceiver

To remove the LC fiber cable and SFP transceiver, follow the steps below:

First, press the upper side of the LC connector down and pull it out before releasing

Remove LC connector

Second, swivel the metal latch away from the switch and pull the transceiver out.

Manual Documentation Number EIRP610-2SFP-T

– 0912m
