6. Tower Roof
72 PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer
Eave Clip
Use 5/16" x 3/4" stainless steel whiz lock bolts and 5/16" nuts. (Galvanized could be substituted here.)
Snug bolt tabs of eave clips (over roof rubber seal) to outside of roof band. Use pairs of bolt holes at top
of roof band.
NOTE: Do not tighten bolts until after expansion ring is loosely installed to tower roof.

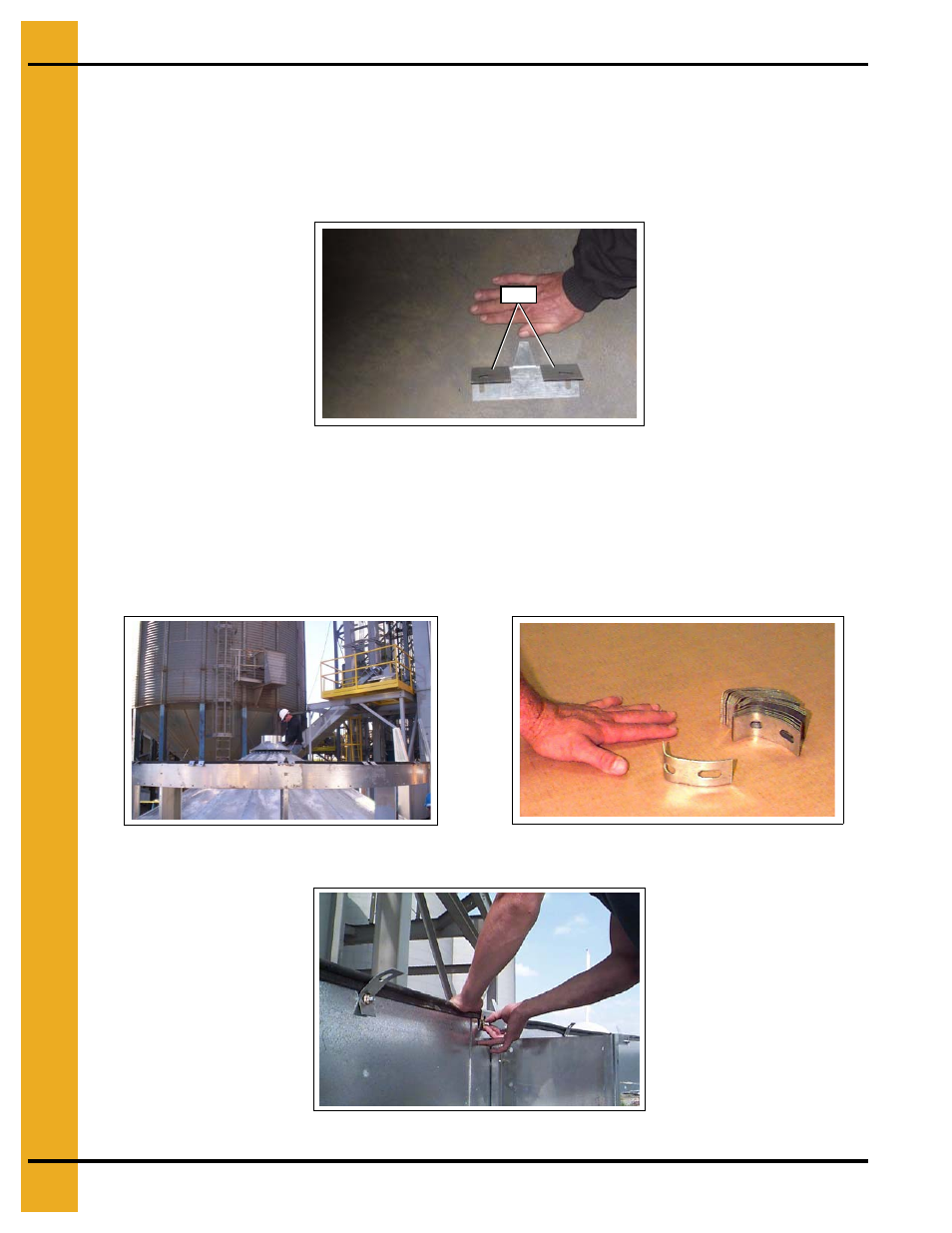

Figure 6H Eave Clip
Intermediate Eave Clip
See Figure 6A on Page 67, Figure 6B on Page 68 and Figure 6C on Page 69 .
Use 5/16" x 3/4" stainless steel whiz lock bolts and nuts.
Snug bolt Intermediate eave clips to inside of roof band. Use single holes at top of roof band.
NOTE: Do not tighten bolts until after expansion ring is loosely installed to tower roof.
Figure 6I Installing bulb seal, eave clips, and
intermediate eave clips to roof band.
Figure 6J Intermediate Eave Clip
Figure 6K Installing eave clip and intermediate eave clips.
Tabs
