22. Metering System
236
PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer
Metering System (Continued)
13. Slide gearbox set collar (2-3/8") up drive shaft until flush with gearbox. Tighten set screw.
Use 5/16" x 3/4" whiz lock bolts and nuts.
14. Fill gearbox lubricant reservoir with lubricant.
Gearbox lubrication: Gearbox requires amoco perma gear 220 (or equivalent lubricant). Remove
gearbox lubricant reservoir plug and fill reservoir 1" to 1-1/2" from top. Remove fill hose.
NOTE: This is a slow process.
IMPORTANT: It is very important that no air is left in reservoir. Remove fitting from top of gearbox.
Add a few more ounces of lubricant to gearbox lubricant reservoir, until lubricant
reaches fitting hole.
Replace plug and check for leaks.

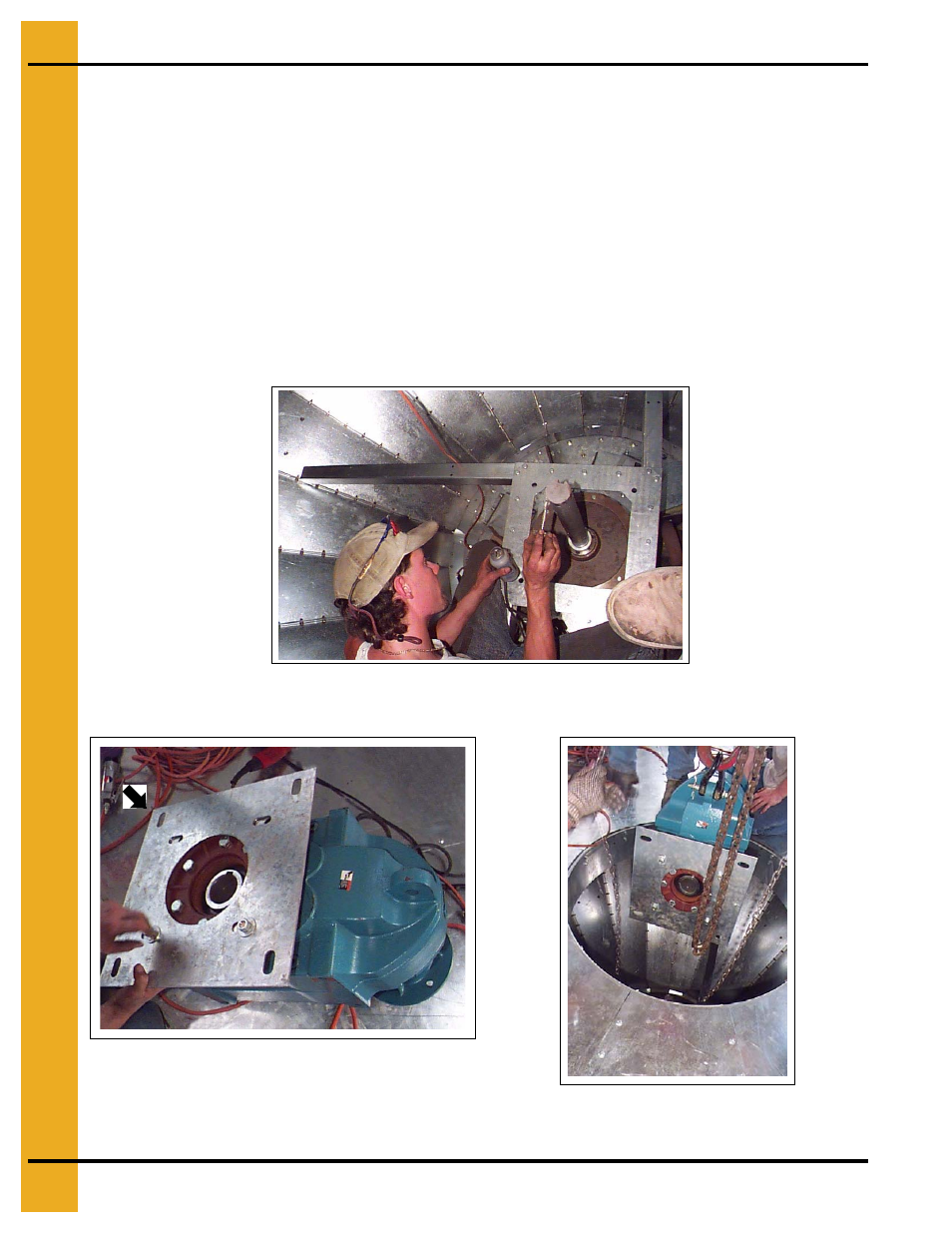

Figure 22T Applying anti-seize to top of metering
drum drive shaft before installing gearbox.
Figure 22U Bolting gearbox adjustment plate (arrow) to
metering drum gearbox.
Figure 22V Lowering metering drum gearbox
over metering drum.
