15. Fans, Divider Hopper, Reducer Walkway

160

PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer

See Orientation Section on Page 19

for dryer dimensions, components, wall sheet guidelines, etc.

See Appendix A on Page 435

for tools and equipment,

Appendix B on Page 437

for hardware, etc.

Fans (3), Divider Hopper, Reducer Walkway

Fan Parts

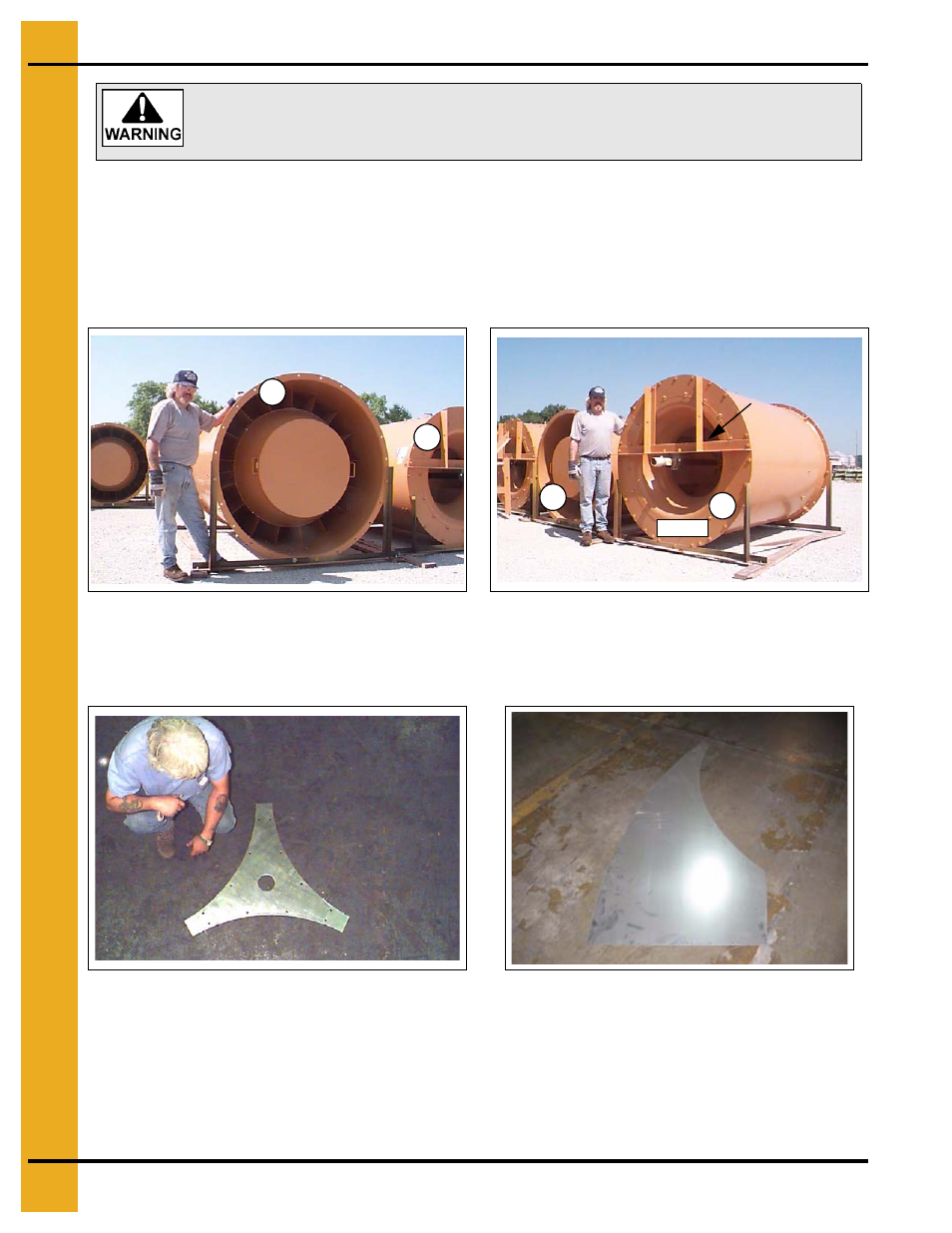

Figure 15G Fan (centrifugal fans). Top view of fan A.

Figure 15H Bottom view of fan A.

A. 490 Fan (3500 BPH and 4000 BPH dryers). Motor Mount Angles - pre-installed at factory (arrow).

B. 445 Fan (2500 BPH and 3000 BPH dryers). Venturi - is the curved inside wall of fan.

Figure 15I Fan Housing Splice

Figure 15J Fan Reducer Panel

Important Safety Precautions:
Dryer has sharp edges. These sharp edges may cause serious injury. Use
appropriate personal protective equipment. Use proper lifting techniques.

Venturi
