19. Tower Base
PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer 209
Compression Angle Weldments
See Figure 19A on Page 204 and Figure 19B on Page 205 for placement of compression angle weldments.
From outside dryer, bolt compression angle weldment to sealing strip. (See Figure 19L, Figure 19M and
Figure 19N on Page 210.)
Use 5/16" x 1" bolts, nuts, and washers.

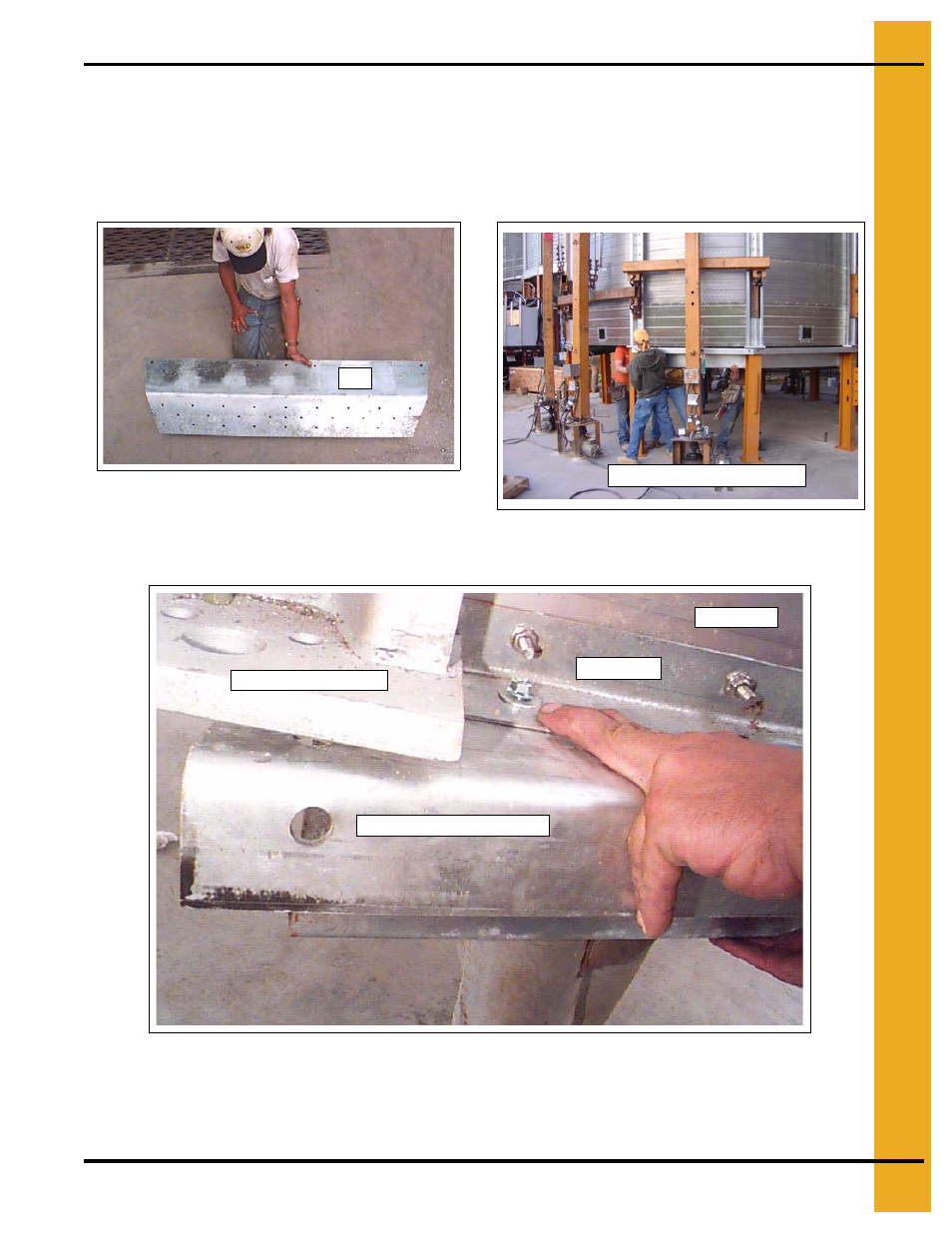

Figure 19K Compression Angle Weldment
Figure 19L Bolting compression angle weldments to
bottom of sealing strip.
Figure 19M Close Up - Bolting compression angle weldments
to sealing strip. Trim sealing strip if required.
Top
Compression angle weldment
Base stiffener weldment
Sealing strip
Compression angle weldment
Solid sheet
