PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer

219

20. Cool Section Floor

See Orientation Section on Page 19

for dryer dimensions, components, wall sheet guidelines, etc.

See Appendix A on Page 435

for tools and equipment,

Appendix B on Page 437

for hardware, etc.

Rolled Plenum Channels

Bolt last ring of rolled plenum channels on inside solid wall sheet, above cool section floor beam brackets
in pre-drilled bolt holes.

(See Figure 20A.)

NOTE: This ring of rolled plenum channels is outer edge of support for cool section floor sheets.

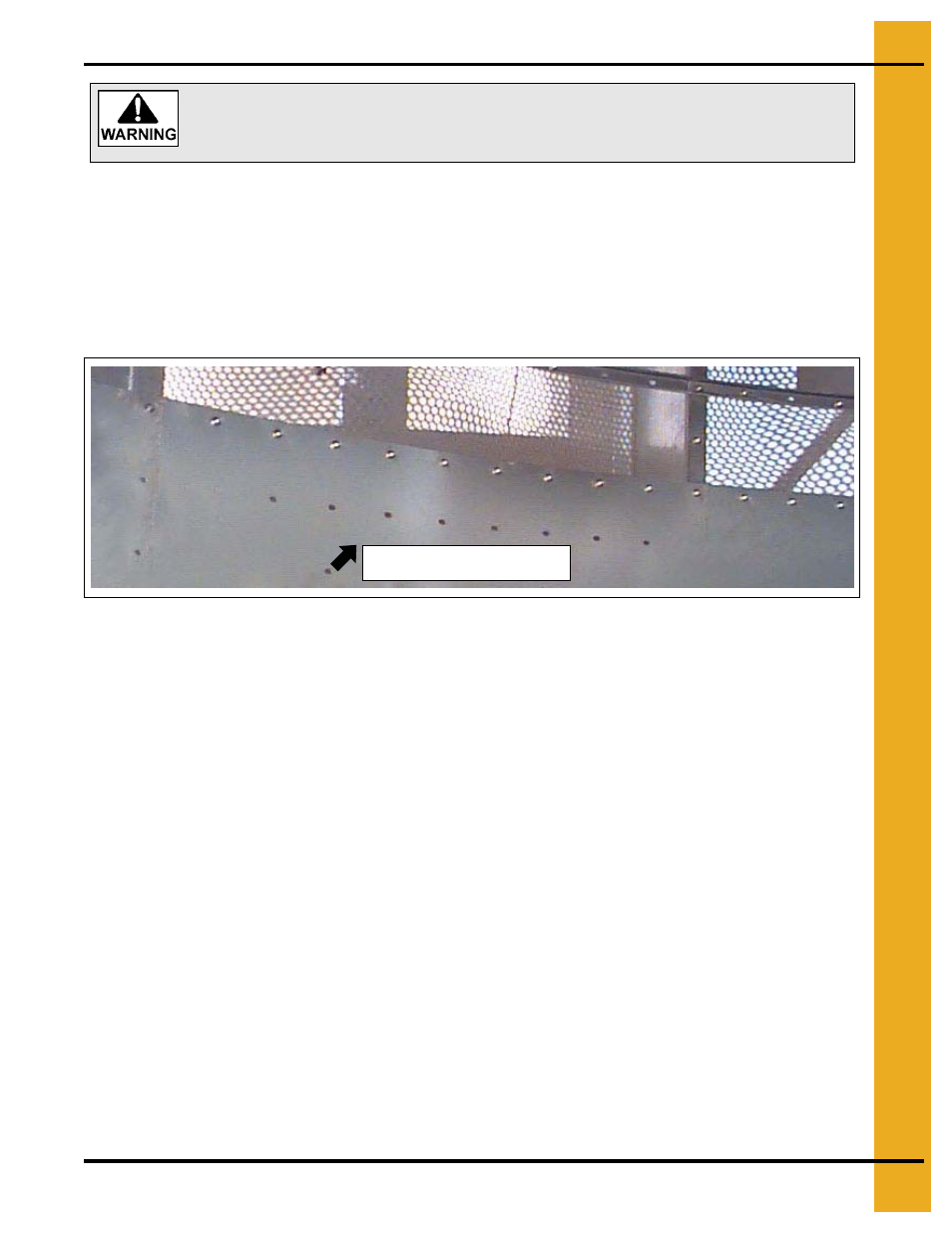

Figure 20A

NOTE: Tighten bolts in cool section floor after hopper and metering drum are installed.

When tightening bolts in cool section floor, start at center of each floor sheet and work to edges to
avoid buckling.

Important Safety Precautions:
Dryer has sharp edges. These sharp edges may cause serious injury.
Use appropriate personal protective equipment. Use proper lifting techniques.

Install rolled plenum channels in
pre-drilled bolt holes.
