10. Catwalks and Platforms
126 PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer
Outside Catwalk (Continued)

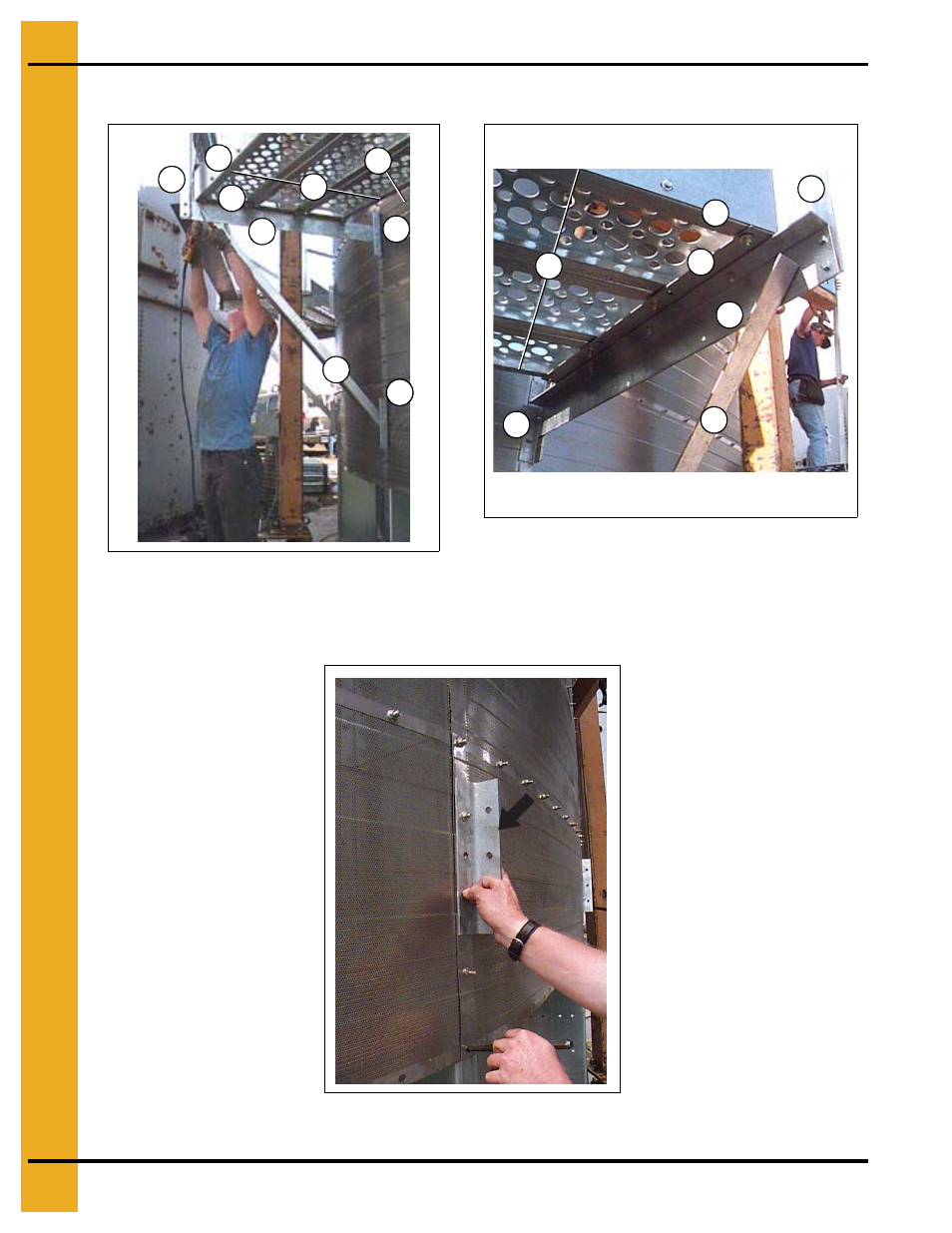

Figure 10Q Parts are listed on Page 125 .
Figure 10R Parts are listed on Page 125 .
Use 5/16" x 3/4" whiz lock bolts and nuts to install catwalk flooring.
Use 3/8" x 1" whiz lock bolts and nuts to install handrails and supports.
Figure 10S Catwalk support clip is installed
with angle up on R.H. side.
