24. Fuel Train
PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer 245
See Orientation Section on Page 19 for dryer dimensions, components, wall sheet guidelines, etc.
See Appendix A on Page 435 for tools and equipment, Appendix B on Page 437 for hardware, etc.
Natural Gas or Liquid Propane
NOTE: Electrical wiring and pilot fuel line installation are done by electricians.

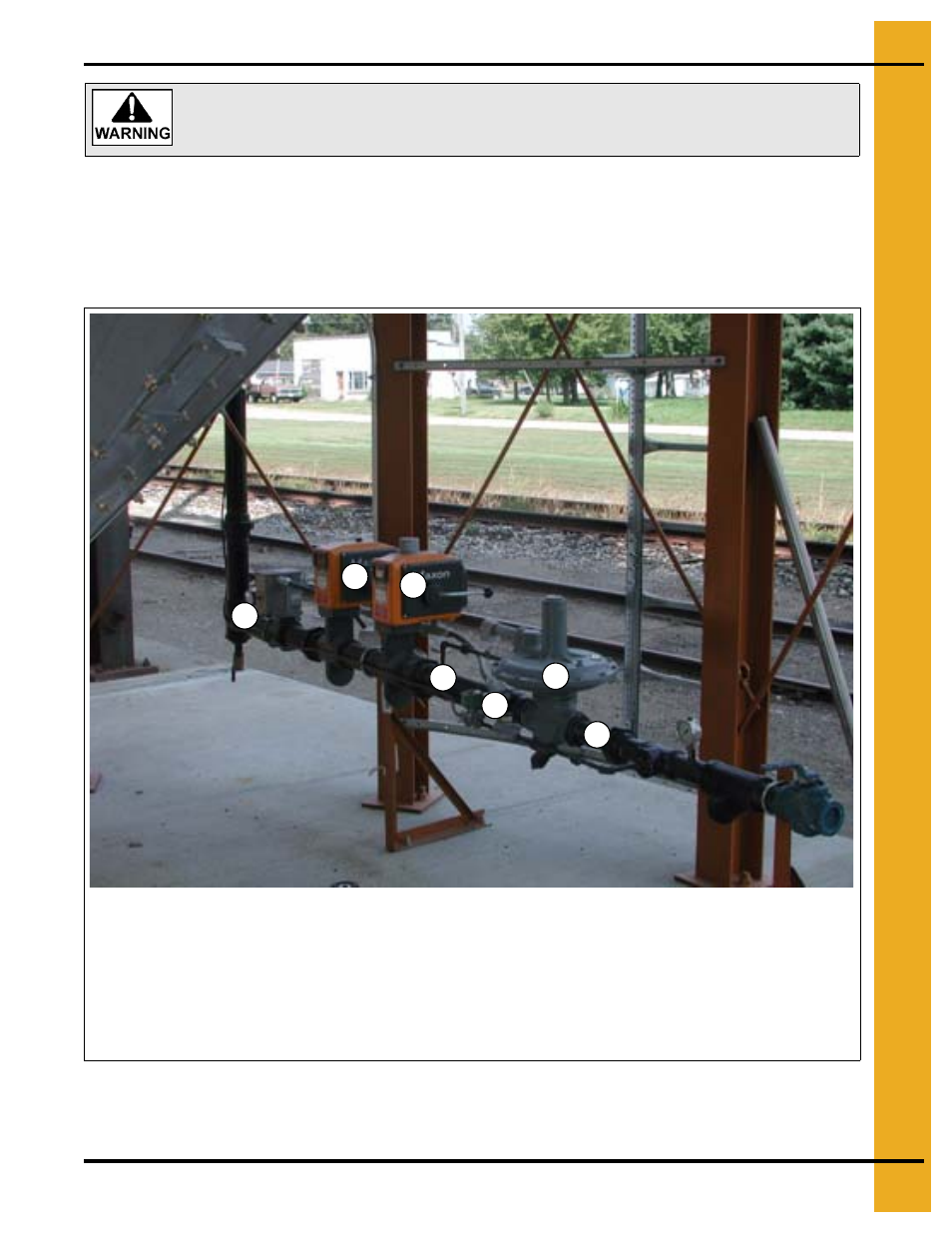

Figure 24B Example - Fuel train installed.
Important Safety Precautions:
Dryer has sharp edges. These sharp edges may cause serious injury. Use
appropriate personal protective equipment. Use proper lifting techniques.
A
B
C
D
E
F
G
A. Pilot fuel line
B. Pilot regulator on pilot fuel train
C. Pilot solenoid on pilot fuel train
D. Maxon fuel shut off valve - primary
E. Maxon fuel shut off valve - secondary
F. Modutrol motor
G. Main fuel regulator
