9. Lift Dryer
110
PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer
Example: Lifting Roof Section
1. Pre-install vertical channel splice plates to vertical channels to be installed after lift. Move vertical
channels near to dryer.
2. It is recommended to place six (6) jacks around dryer as explained in lifting dryer guidelines
in Orientation Section on Page 42
3. Attach hoisting tackle from each jack to two (2) lift brackets according to jack manufacturer’s
instructions. Span two (2) lift brackets with lift bar so jacks do not block vertical rows of bolt holes.

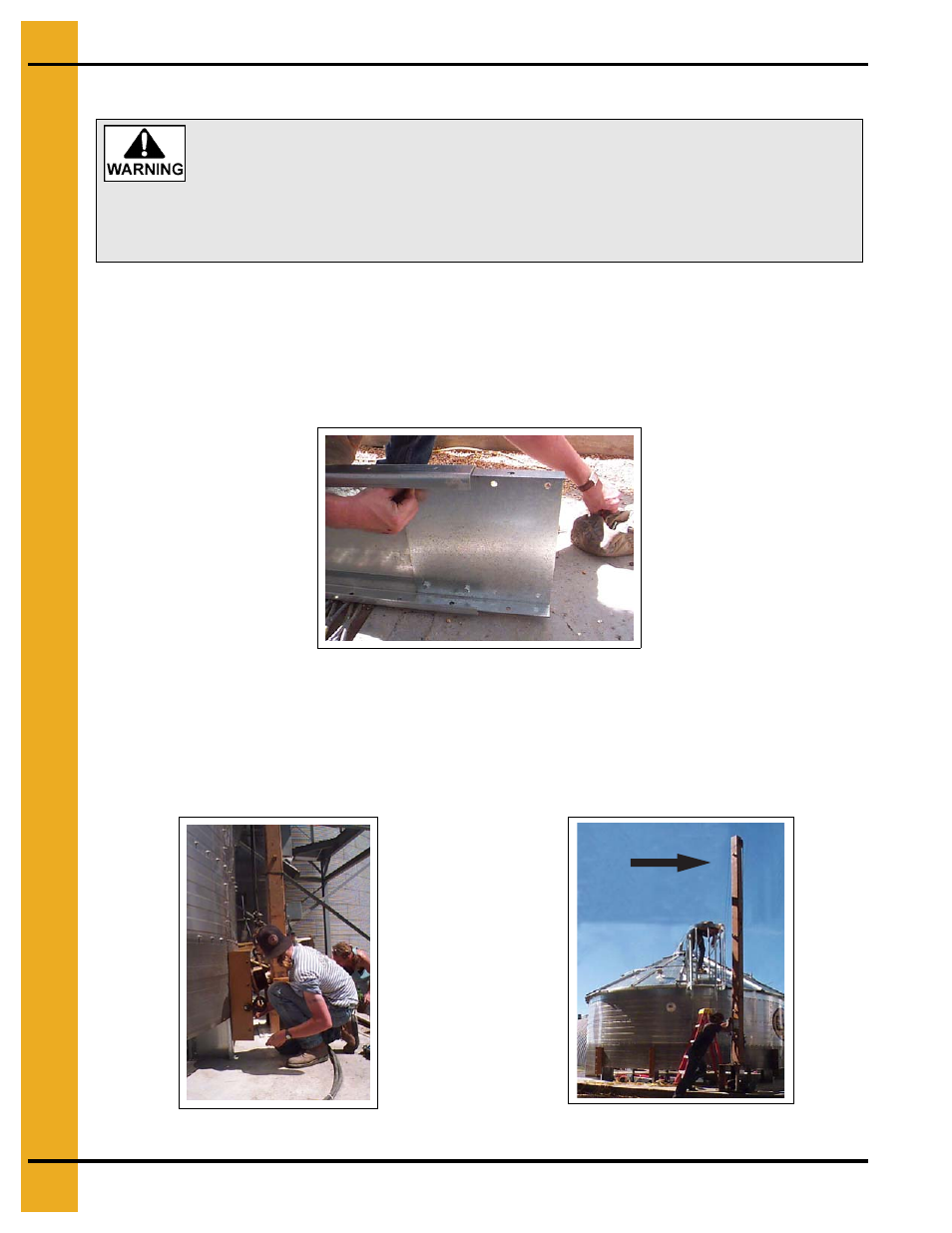

Figure 9C Splicing vertical channels.
4. Unbolt dryer from jig clips. Lift dryer to clear next set of 80" vertical channels. Operate jacks
according to jack manufacturer’s instructions.
5. Slide each pre-spliced vertical channel (splice end up) to a vertical channel already on dryer, and
position with alignment punches. Snug up lower vertical channel into upper vertical channel as
tightly and evenly as possible.
Figure 9D Installing lift brackets.
Figure 9E Placing jacks around dryer (arrow).
Before lifting roof of dryer, do safety check for wind or electrical hazards,
clearance, etc.
(See Orientation Section on Page 19.)
Tighten all bolts on dryer (except lower ladder parts).
Apply GSI decal.
