16. Fan Motors

182

PNEG-707 12', 18', 24' and 30' GSI Commercial Tower Dryer

Fan Belts

1. For each fan, run fan belts from motor sheave to fan sheave.

2. To tighten fan belts, tighten adjusting nuts on two (2) rods on motor mount. Do not overtighten

fan belts.

Check fan belt tension. Fan belts will press down one fan belt width.

(See Figure 16AC on Page 183.)

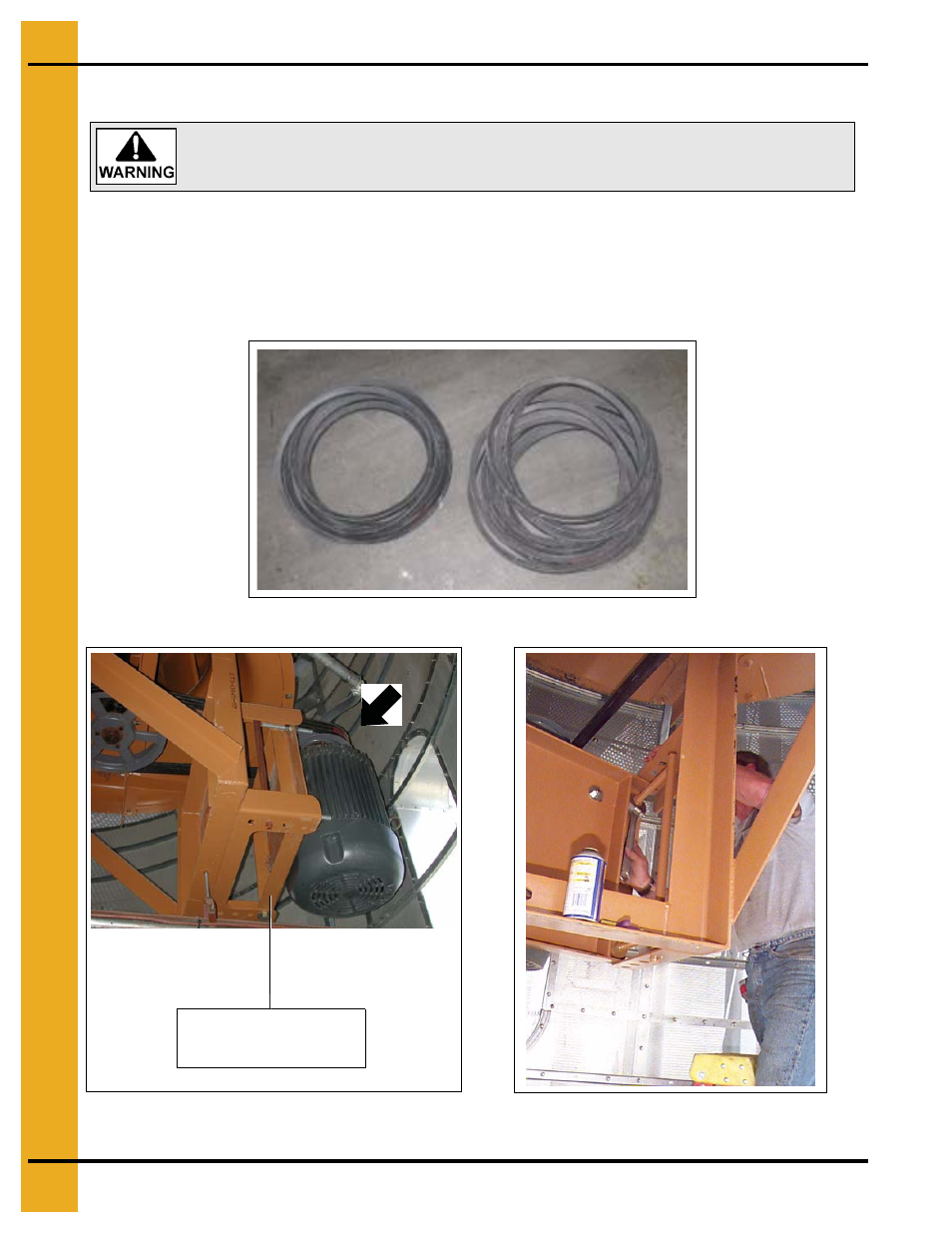

Figure 16Y Fan belts

Figure 16Z Running fan belts in grooves on sheaves.

Figure 16AA (To tighten fan belts) tightening adjusting

nuts on top rod of motor mount.

When installing fan belts, do not catch fingers in fan belts.

Adjust motor mount in and
out as necessary to achieve
good belt tension.
