GS-4012F/4024 User’s Guide
208 Chapter 31 VRRP

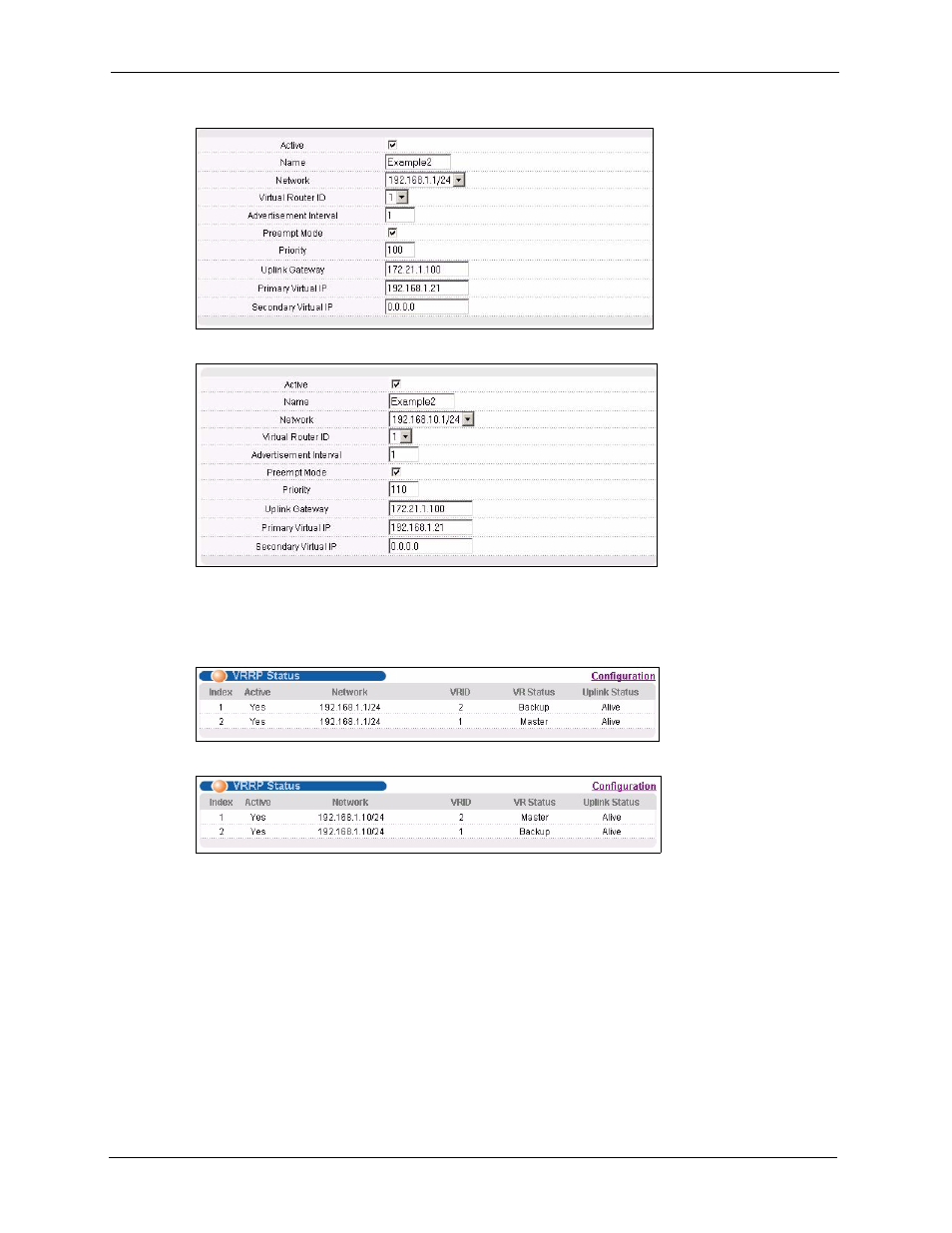

Figure 117 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch A
Figure 118 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
Figure 119 VRRP Example 2: VRRP Status on Switch A
Figure 120 VRRP Example 2: VRRP Status on Switch B
