Xerox 4090 User Manual
Page 106
PRINTER MAINTENANCE
The following materials are required:
•
New pressure roll wiper and drip pan pad
•
Gloves
•
Cleaning cloth
•
Drop cloth for the floor.
WARNING: Perform this task only when the fuser is cool.
Exercise care to prevent burns when working in this area. Do
not perform this task if the fuser is hot.
1. Power off the printer.
2. Open the printer doors.
3. Open the fuser drawer.

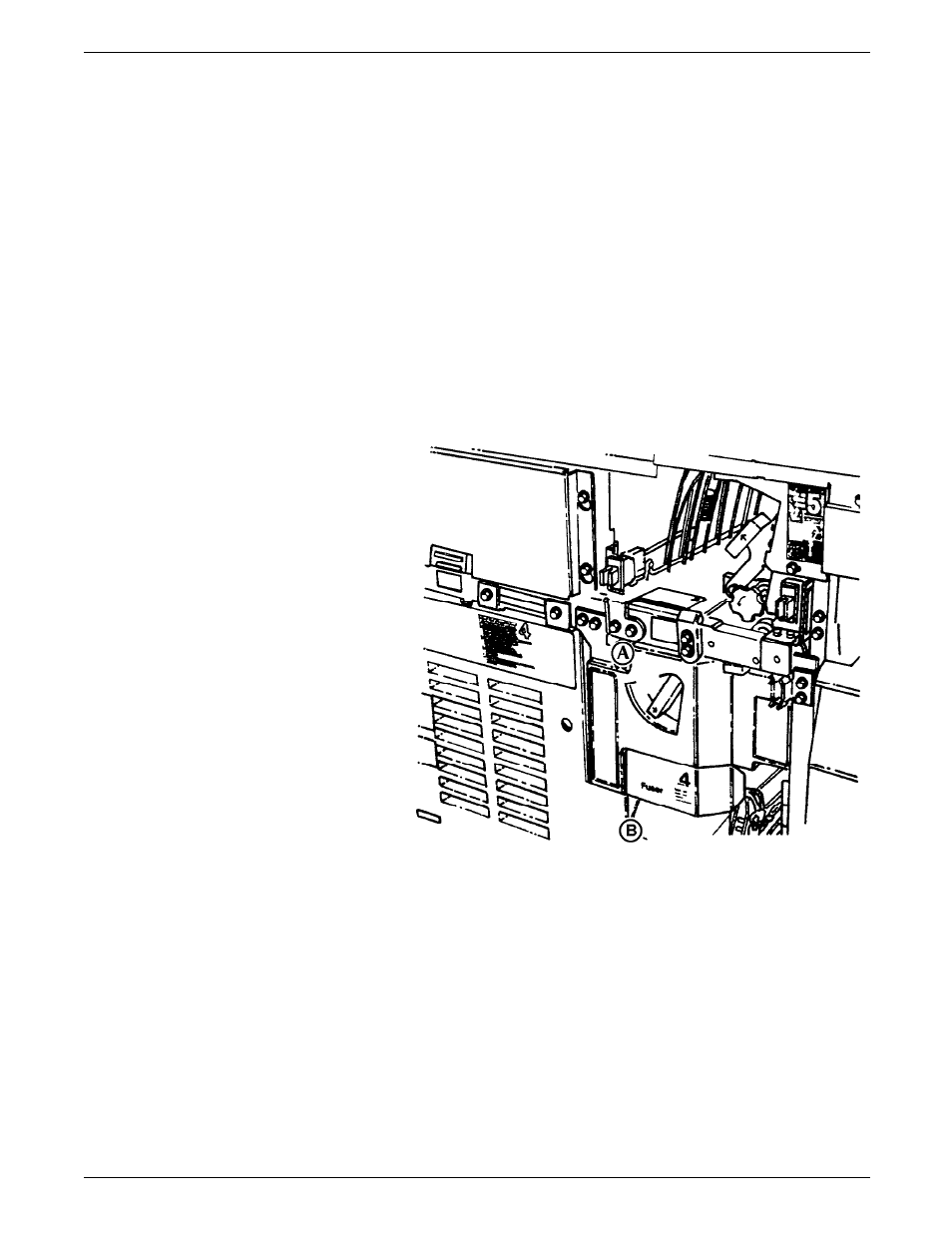

a. Locate the fuser drawer.
b. Move the green lever (A) counterclockwise.
c. Grasp the green handle on the fuser drawer (B) and pull
it out until it stops.
4. Determine if the fuser is cool.
6-18
XEROX 4050/4090/4450/4650 LPS OPERATOR GUIDE
