Image misregistration
The printed image is
mispositioned on the
page.
1. Paper improperly loaded into
paper tray
2. Wrong paper size for
application
1. Check trays for proper paper loading
(see
Chapter 2 ).
2. Check paper stock and printer
configuration.
3. If problem is not resolved, contact your
dealer or Xerox / Rank Xerox.
Produce a Test Print (see Chapter 3 )
• Fold and crease the Test Print as shown.
• Both horizontal and vertical folds
should fall within plus or minus two
lines.
If the pattern registers OK, the problem may
be in your software application.
Damaged prints
Prints are wrinkled,
creased, or torn.
1. Poor paper condition
2. Paper improperly loaded into
paper tray
3. Obstructed paper path
4. Defective Fuser Module
1. Inspect/replace paper stock.
2. Check trays for proper paper loading
(see
Chapter 2 ).
3. Inspect paper path for obstructions
(torn pieces of paper, etc.).
4. Contact your dealer or Xerox / Rank
Xerox.

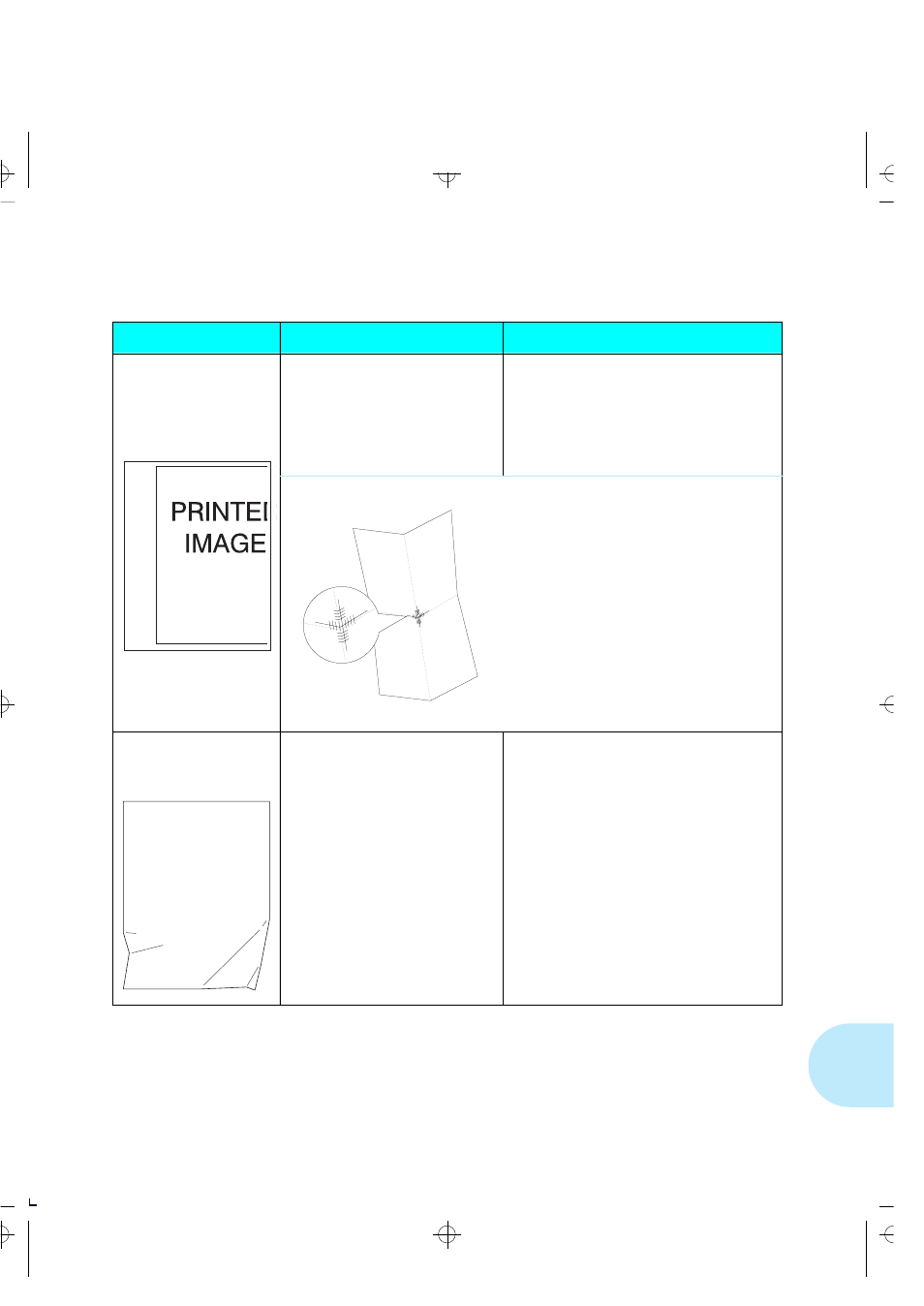

Figure 7.5 Print Quality Problems (continued)
