I n s t a l l i n g a S I M M
C h a p t e r 5 : A d d i n g P r i n t e r O p t i o n s ❖ 5-13
16 Ensure that the
controller board is
touching the rear of
the printer chassis.
There must be no
space between the
controller board and
the chassis.
Use only finger pressure to tighten the thumbscrews. Do not
use a screwdriver because the threads will be stripped if
excessive torque is applied. The screwdriver slot in the
thumbscrew is only there to start the disengagement of the
controller board after an extended period of time when
fingers may not be able to disengage it.

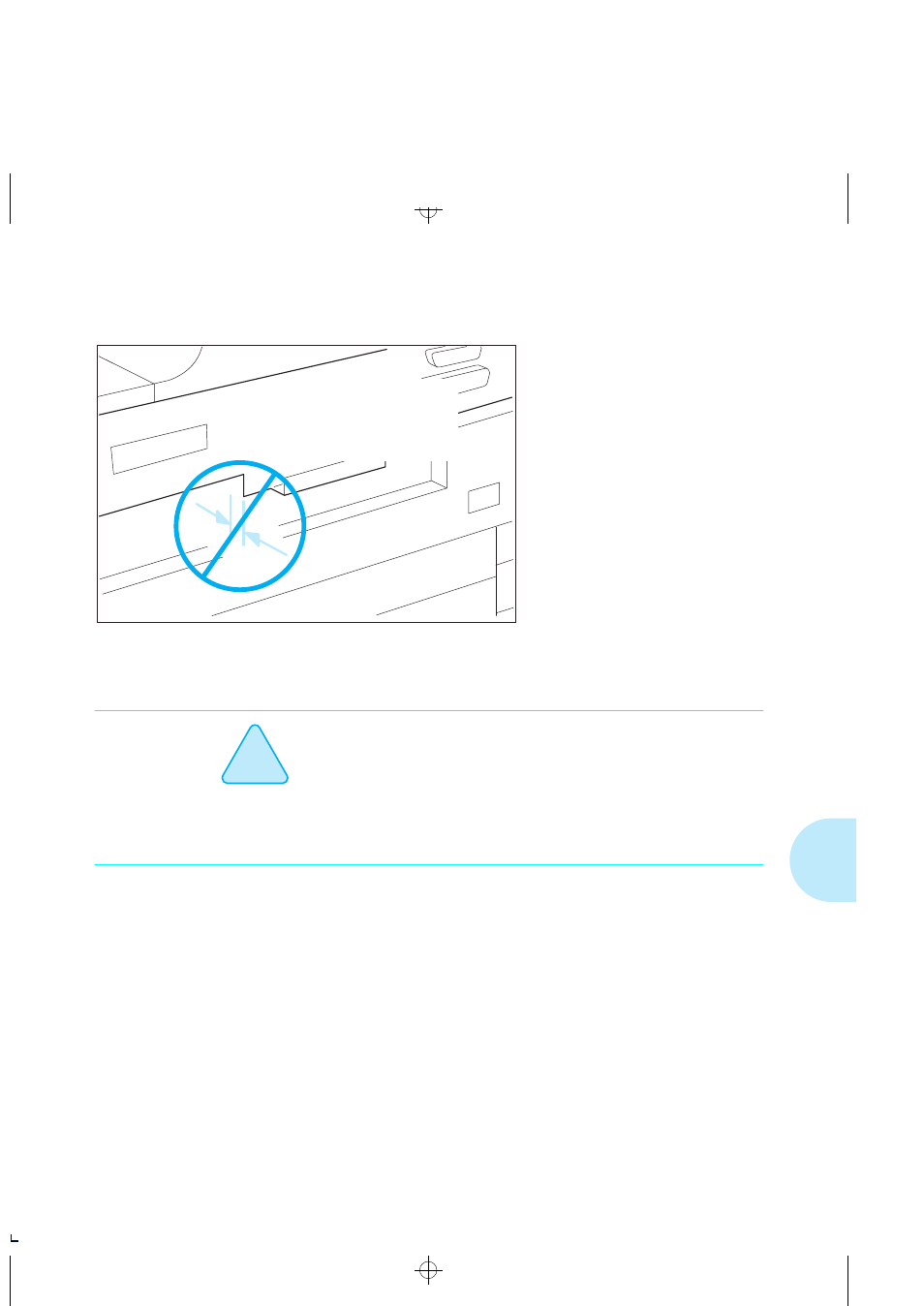

Inspect this area to verify
that there is no gap between
the printer controller board
and the chassis.
!
Caution
