R e p l a c i n g t h e E P C a r t r i d g e
6-4 ❖ 4 5 0 5 / 4 5 0 5 p s o r 4 5 1 0 / 4 5 1 0 p s U s e r ’ s G u i d e

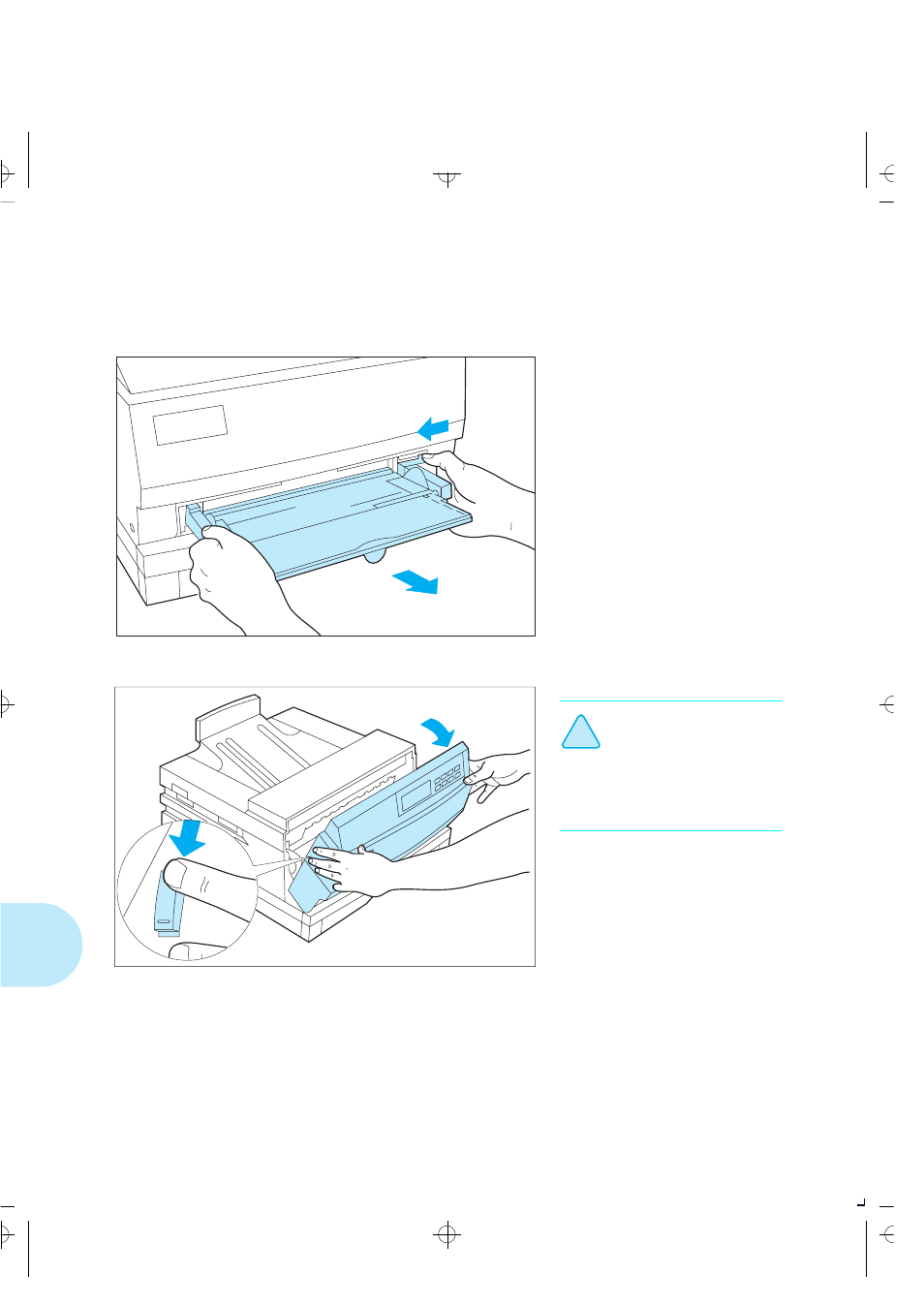

To replace the EP cartridge, follow the steps below:
1 Remove the
Multipurpose (MP)
tray, if installed.
To avoid damaging the
hinge, support the front
cover with your hands
while opening it. Do not
allow the cover to fall
open.
2 Press the side latches
down to release and
open the front cover.
!
Caution
