P a p e r J a m s
7-20 ❖ 4 5 0 5 / 4 5 0 5 p s o r 4 5 1 0 / 4 5 1 0 p s U s e r ’ s G u i d e

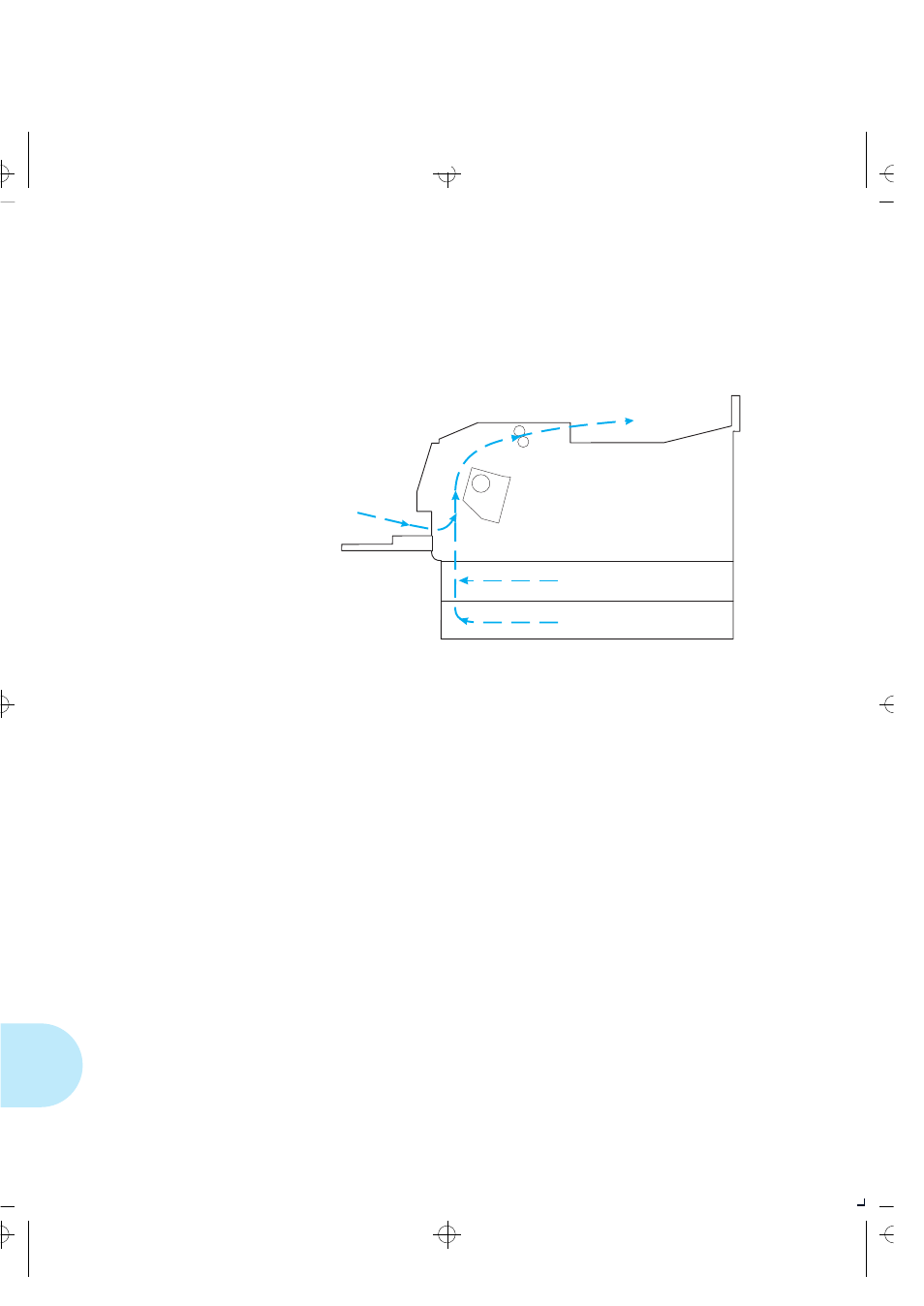

The paper path is depicted in Figure 7.3. (The figure includes
the optional lower base.)
Figure 7.3 Printer paper path
The following section provides detailed step-by-step
procedures for clearing paper jams as well as some tips to
help troubleshoot reoccurring jams.
