Chapter 5 WAN Setup
P-660HWP-Dx User’s Guide
49
5.7 Traffic Redirect
Traffic redirect forwards traffic to a backup gateway when the P-660HWP-Dx cannot connect
to the Internet. An example is shown in the figure below.

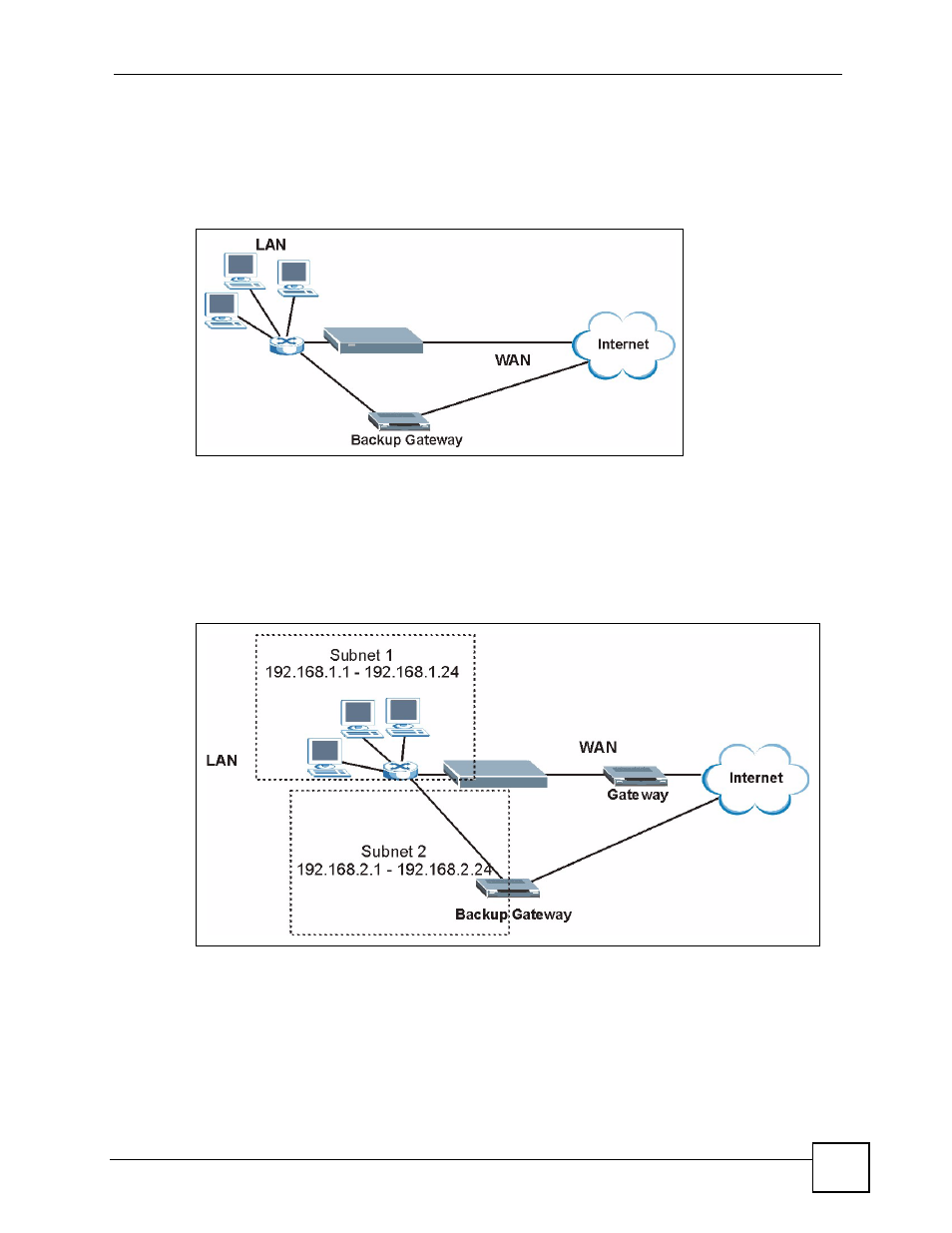

Figure 50 Traffic Redirect Example
The following network topology allows you to avoid triangle route security issues when the
backup gateway is connected to the LAN. Use IP alias to configure the LAN into two or three
logical networks with the P-660HWP-Dx itself as the gateway for each LAN network. Put the
protected LAN in one subnet (Subnet 1 in the following figure) and the backup gateway in
another subnet (Subnet 2). Configure filters that allow packets from the protected LAN
(Subnet 1) to the backup gateway (Subnet 2).
Figure 51 Traffic Redirect LAN Setup
5.8 Configuring WAN Backup
To change your P-660HWP-Dx’s WAN backup settings, click Network > WAN > WAN
Backup Setup. The screen appears as shown.
