Chapter 2 Introducing the Web Configurator
P-660HWP-Dx User’s Guide
44
The following table describes the labels in this screen.
2.4.4 Status: WLAN Status
Click the WLAN Status hyperlink in the Status screen to view the wireless stations that are
currently associated to the P-660HWP-Dx.

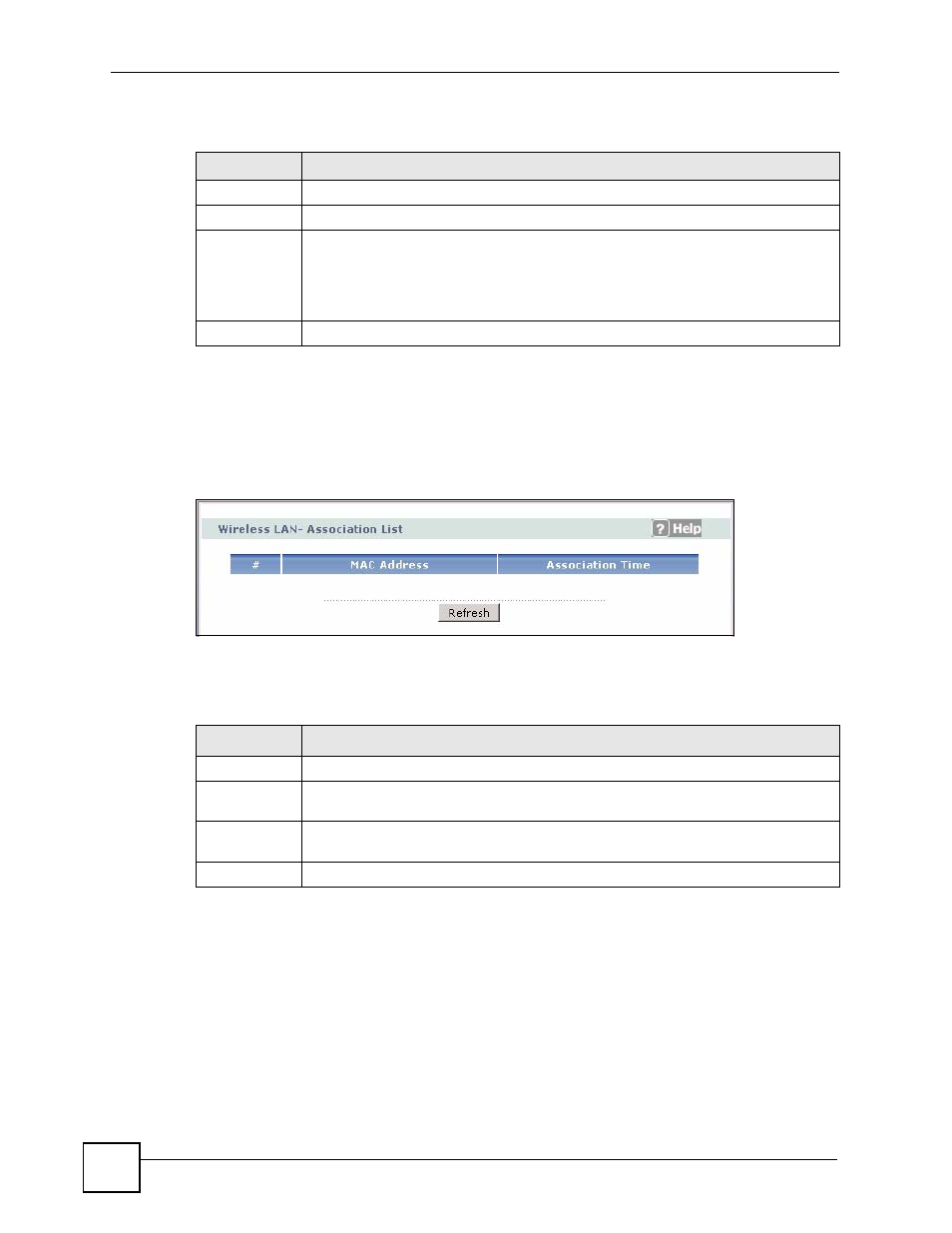

Figure 15 Status: WLAN Status
The following table describes the labels in this screen.
2.4.5 Status: Bandwidth Status
Click the Bandwidth Status hyperlink in the Status screen. Select an interface from the drop-
down list box to view the bandwidth usage of its bandwidth rules. The gray section of the bar
represents the percentage of unused bandwidth and the blue color represents the percentage of
bandwidth in use.
Table 5 Status: Any IP Table
LABEL DESCRIPTION
# This is the index number of the host computer.
IP Address This field displays the IP address of the network device.
MAC Address This field displays the MAC (Media Access Control) address of the computer with the
displayed IP address.
Every Ethernet device has a unique MAC address. The MAC address is assigned at
the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
Refresh Click Refresh to update this screen.
Table 6 Status: WLAN Status
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC (Media Access Control) address of an associated wireless
station.
Association
TIme
This field displays the time a wireless station first associated with the P-660HWP-Dx.
Refresh Click Refresh to reload this screen.
