Chapter 1 Introducing the P-660HWP-Dx
P-660HWP-Dx User’s Guide
38

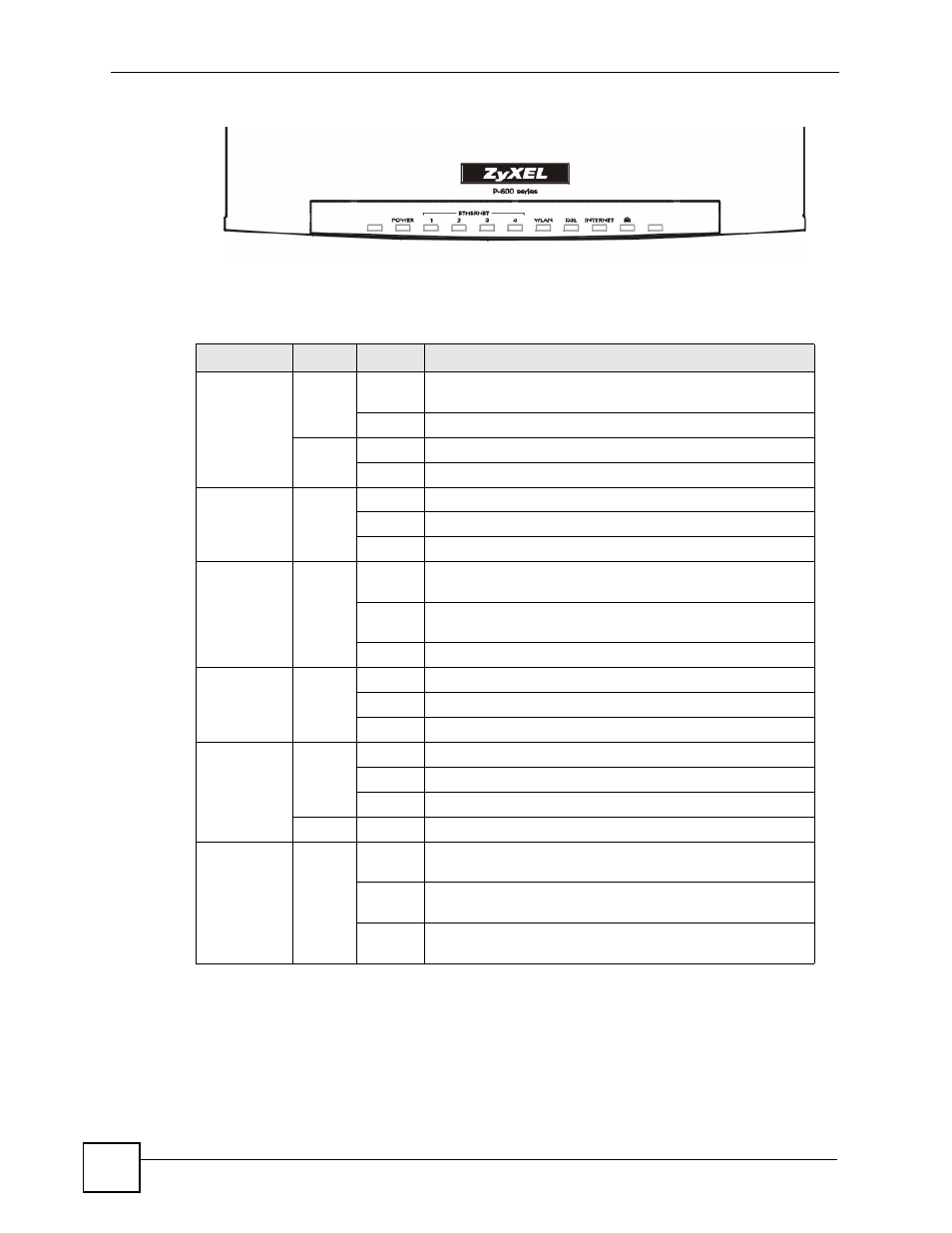

Figure 3 Front Panel
The following table describes the LEDs.
1.5 Hardware Connections
Refer to the Quick Start Guide for information on hardware connections.
Table 2 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
POWER Green On The P-660HWP-Dx is receiving power and functioning
properly.
Blinking The P-660HWP-Dx is rebooting or performing diagnostics.
Red On Power to the P-660HWP-Dx is too low.
Off The system is receiving power but has malfunctioned.
ETHERNET Green On The P-660HWP-Dx has a successful Ethernet connection.
Blinking The P-660HWP-Dx is sending/receiving data.
Off The LAN is not connected.
WLAN Green On The P-660HWP-Dx is ready, but is not sending/receiving data
through the wireless LAN.
Blinking The P-660HWP-Dx is sending/receiving data through the
wireless LAN.
Off The wireless LAN is not ready or has failed.
DSL Green On The DSL line is up.
Blinking The P-660HWP-Dx is initializing the DSL line.
Off The DSL line is down.
INTERNET Green On The Internet connection is up but there is no traffic.
Blinking The P-660HWP-Dx transmitting data on the DSL line.
Off There is no connection.
Red On The P-660HWP-Dx attempted to connect and failed.
POWERLINE Green On The P-660HWP-Dx detects another power line Ethernet
adapter.
Blinking The P-660HWP-Dx is transmitting data. (When the device is
managing the network, the LED does not blink.)
Off The P-660HWP-Dx does not detect another power line
Ethernet adapter.
