Chapter 2 Introducing the Web Configurator
P-660HWP-Dx User’s Guide
43
2.4.3 Status: Any IP Table
Click the Any IP Table hyperlink in the Status screen. The Any IP table shows current read-
only information (including the IP address and the MAC address) of all network devices that
use the Any IP feature to communicate with the P-660HWP-Dx.

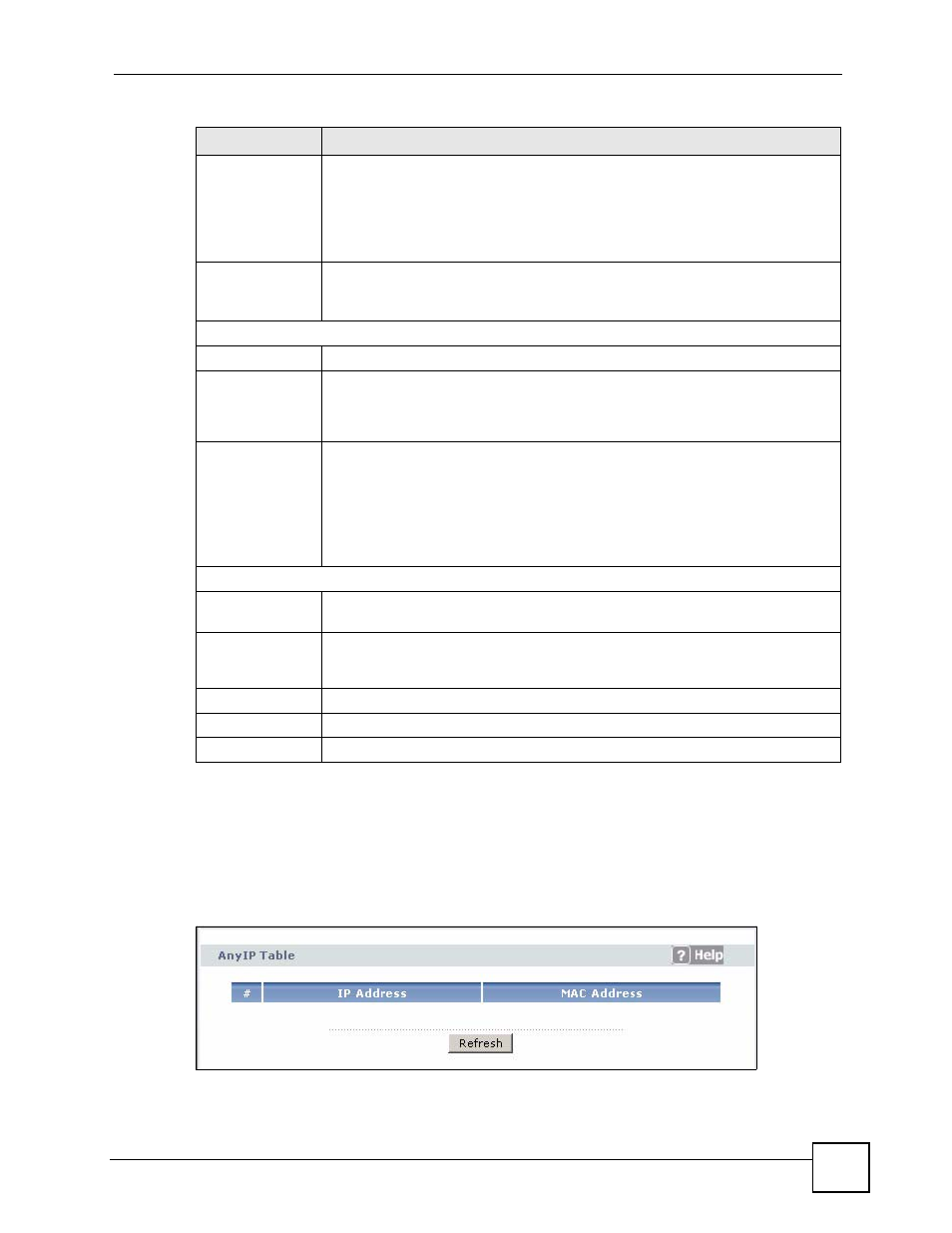

Figure 14 Status: Any IP Table
CPU Usage This number shows how many kilobytes of the heap memory the P-660HWP-Dx is
using. Heap memory refers to the memory that is not used by ZyNOS (ZyXEL
Network Operating System) and is thus available for running processes like NAT,
VPN and the firewall.
The bar displays what percent of the P-660HWP-Dx's heap memory is in use. The
bar turns from green to red when the maximum is being approached.
Memory Usage This number shows the P-660HWP-Dx's total heap memory (in kilobytes).
The bar displays what percent of the P-660HWP-Dx's heap memory is in use. The
bar turns from green to red when the maximum is being approached.
Interface Status
Interface This displays the P-660HWP-Dx port types.
Status This field displays Down (line is down), Up (line is up or connected) if you're using
Ethernet encapsulation and Down (line is down), Up (line is up or connected), Idle
(line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're
using PPPoE encapsulation.
Rate For the LAN ports, this displays the port speed and duplex setting.
Ethernet port connections can be in half-duplex or full-duplex mode. Full-duplex
refers to a device's ability to send and receive simultaneously, while half-duplex
indicates that traffic can flow in only one direction at a time. The Ethernet port
must use the same speed or duplex mode setting as the peer Ethernet port in
order to connect.
For the WAN port, it displays the downstream and upstream transmission rate.
Summary
Any IP Table Use this screen to view a list of IP addresses and MAC addresses of computers,
which are not in the same subnet as the P-660HWP-Dx.
WLAN Status
(Wireless devices
only)
This screen displays the MAC address(es) of the wireless stations that are
currently associating with the P-660HWP-Dx.
Bandwidth Status Use this screen to view the P-660HWP-Dx’s bandwidth usage and allotments.
Packet Statistics Use this screen to view port status and packet specific statistics.
Powerline Status This screen indicates the status of your Powerline network connection.
Table 4 Status Screen (continued)
LABEL DESCRIPTION
