Chapter 15 Bandwidth Management
P-660HWP-Dx User’s Guide
41
15.9 Bandwidth Management Rule Setup
You must use the Bandwidth Management Summary screen to enable bandwidth
management on an interface before you can configure rules for that interface.
Click Advanced > Bandwidth MGMT > Rule Setup to open the following screen.

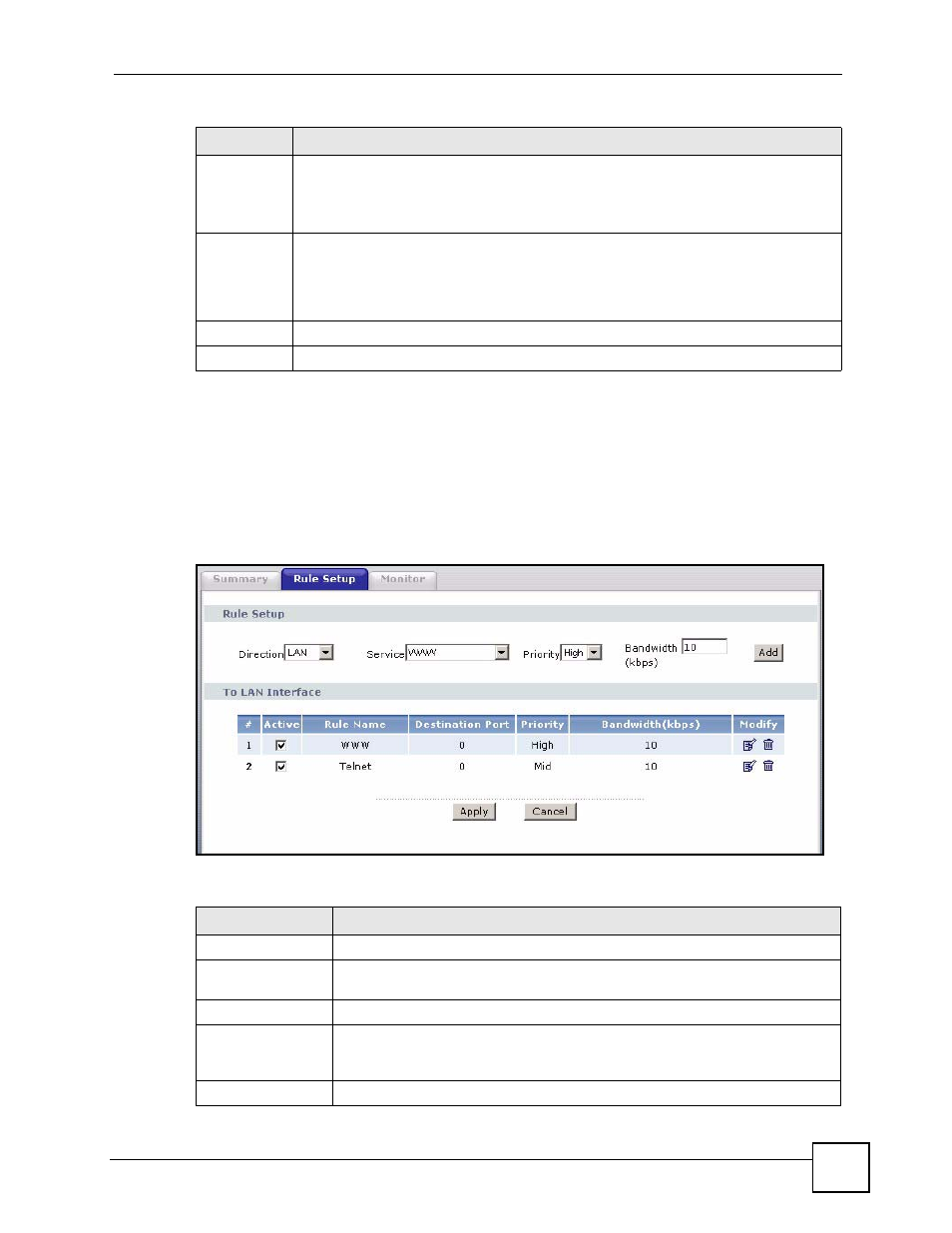

Figure 131 Bandwidth Management: Rule Setup
The following table describes the labels in this screen.
Scheduler Select either Priority-Based or Fairness-Based from the drop-down menu to control
the traffic flow.
Select Priority-Based to give preference to bandwidth classes with higher priorities.
Select Fairness-Based to treat all bandwidth classes equally.
Max
Bandwidth
Usage
Select this check box to have the P-660HWP-Dx divide up all of the interface’s
unallocated and/or unused bandwidth among the bandwidth classes that require
bandwidth. Do not select this if you want to reserve bandwidth for traffic that does not
match a bandwidth class or you want to limit the speed of this interface (see the Speed
field description).
Apply Click Apply to save your settings to the P-660HWP-Dx.
Cancel Click Cancel to begin configuring this screen afresh.
Table 91 Media Bandwidth Management: Summary (continued)
LABEL DESCRIPTION
Table 92 Bandwidth Management: Rule Setup
LABEL DESCRIPTION
Direction Select the direction of traffic to which you want to apply bandwidth management.
Service Select a service for your rule or you can select User Defined to go to the screen
where you can define your own.
Priority Select a priority from the drop down list box. Choose High, Mid or Low.
Bandwidth (kbps) Specify the maximum bandwidth allowed for the rule in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
rule.
Add Click this button to add a rule to the following table.
