Chapter 1 Introducing the P-660HWP-Dx
P-660HWP-Dx User’s Guide
40

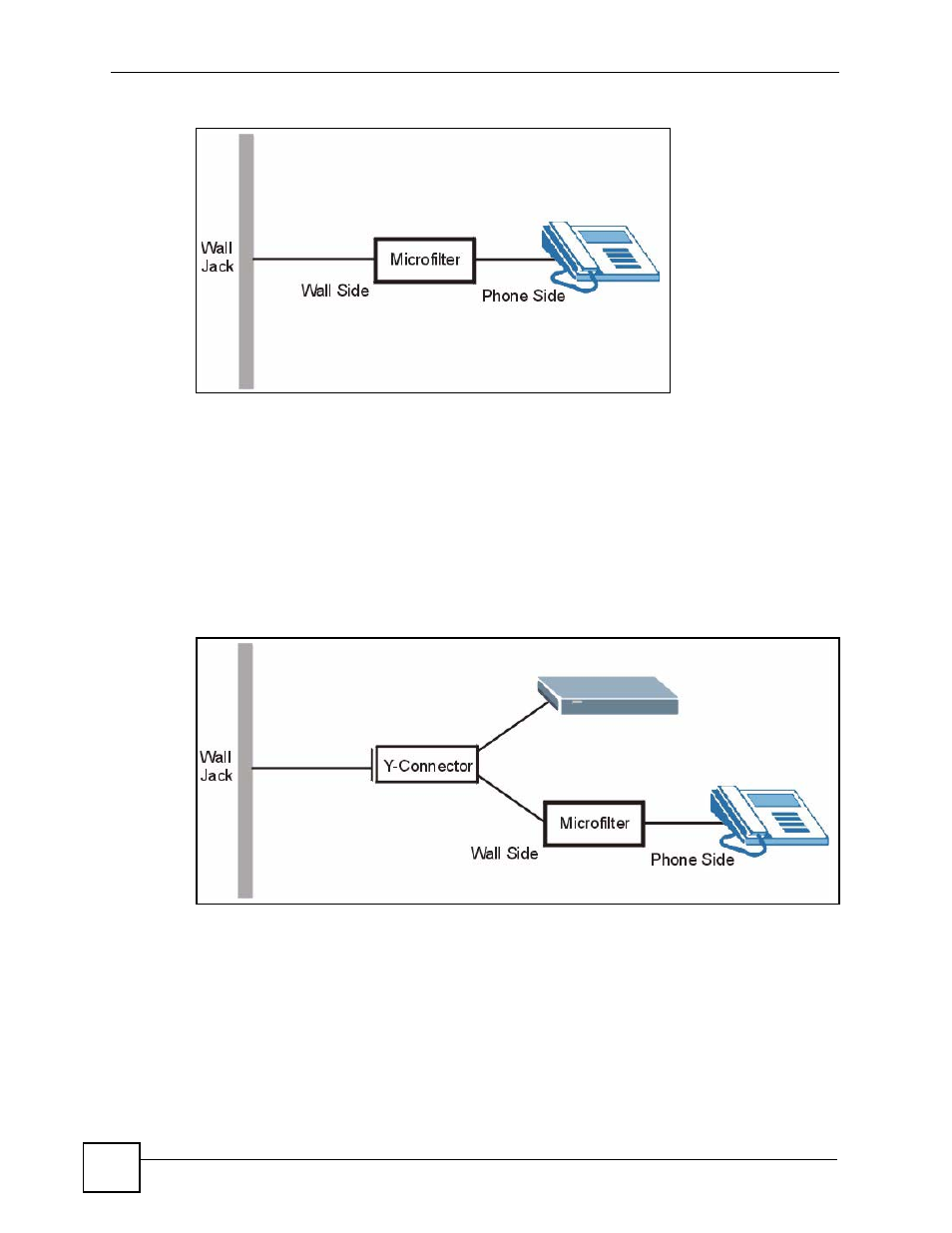

Figure 5 Connecting a Microfilter
You can also use a Y-Connector with a microfilter in order to connect both your modem and a
telephone to the same wall jack without using a POTS splitter.
1 Connect a phone cable from the wall jack to the single jack end of the Y-Connector.
2 Connect a cable from the double jack end of the Y-Connector to the “wall side” of the
microfilter.
3 Connect another cable from the double jack end of the Y-Connector to the P-660HWP-
Dx.
4 Connect the “phone side” of the microfilter to your telephone as shown in the following
figure.
Figure 6 Connecting a Microfilter and Y-Connector
1.5.3 P-660HWP-Dx With ISDN
This section relates to people who use their P-660HWP-Dx with ADSL over ISDN (digital
telephone service) only. The following is an example installation for the P-660HWP-Dx with
ISDN.
