Chapter 2 Introducing the Web Configurator

P-660HWP-Dx User’s Guide

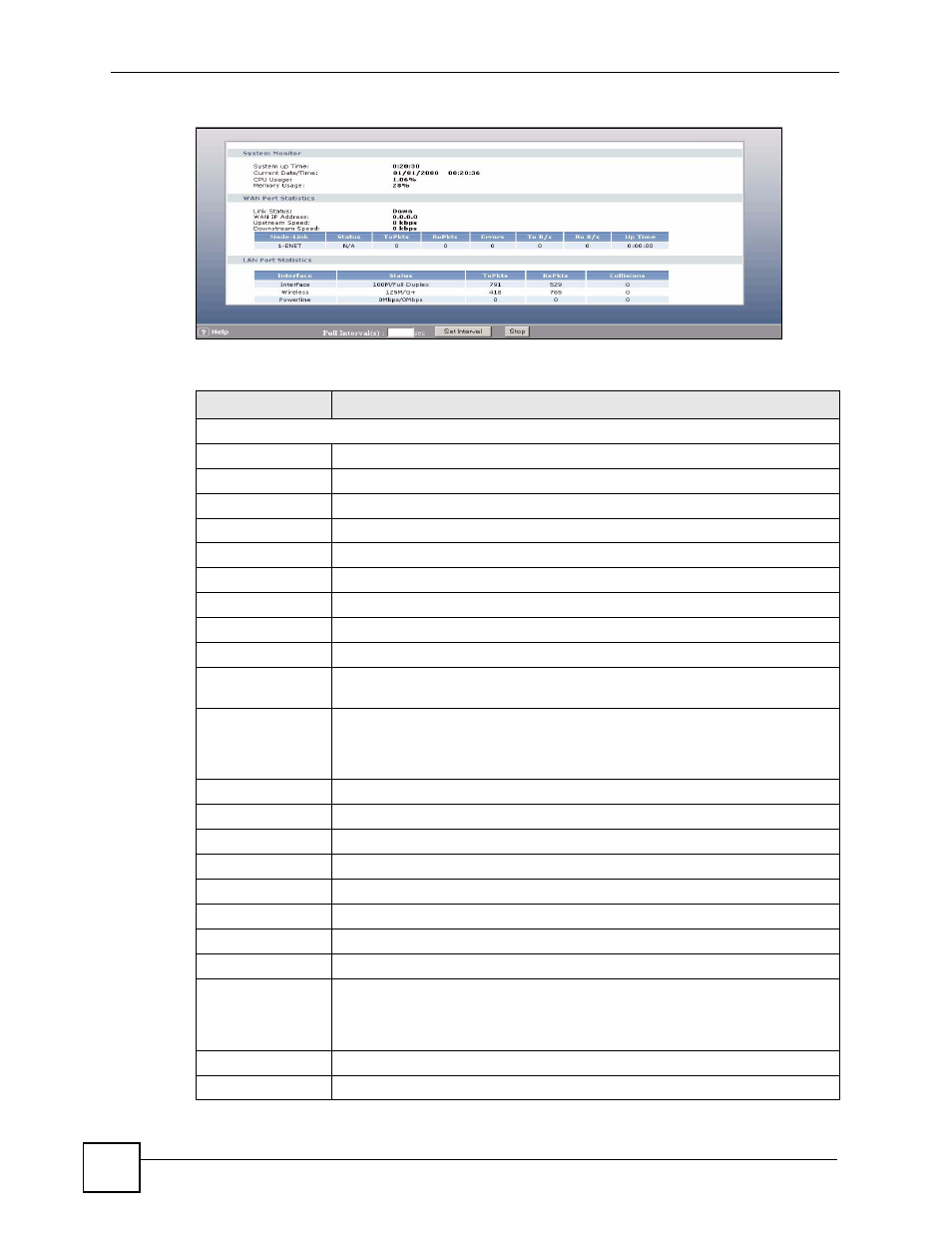

Figure 18 Status: Packet Statistics

The following table describes the fields in this screen.

Table 7 Status: Packet Statistics

LABEL

DESCRIPTION

System Monitor

System up Time

This is the elapsed time the system has been up.

Current Date/Time

This field displays your P-660HWP-Dx’s present

date and time.

CPU Usage

This field specifies the percentage of CPU utilization.

Memory Usage

This field specifies the percentage of memory utilization.

WAN Port Statistics

Link Status

This is the status of your WAN link.

WAN IP Address

This is the IP address of your WAN.

Upstream Speed

This is the upstream speed of your P-660HWP-Dx.

Downstream Speed This is the downstream speed of your P-660HWP-Dx.

Node-Link

This field displays the remote node index number and link type. Link types are

PPPoA, ENET, RFC 1483 and PPPoE.

Status

This field displays Down (line is down), Up (line is up or connected) if you're

using Ethernet encapsulation and Down (line is down), Up (line is up or

connected), Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop

(dropping a call) if you're using PPPoE encapsulation.

TxPkts

This field displays the number of packets transmitted on this port.

RxPkts

This field displays the number of packets received on this port.

Errors

This field displays the number of error packets on this port.

Tx B/s

This field displays the number of bytes transmitted in the last second.

Rx B/s

This field displays the number of bytes received in the last second.

Up Time

This field displays the elapsed time this port has been up.

LAN Port Statistics

Interface

This field displays the type of port.
