Chapter 2 Introducing the Web Configurator

P-660HWP-Dx User’s Guide

45

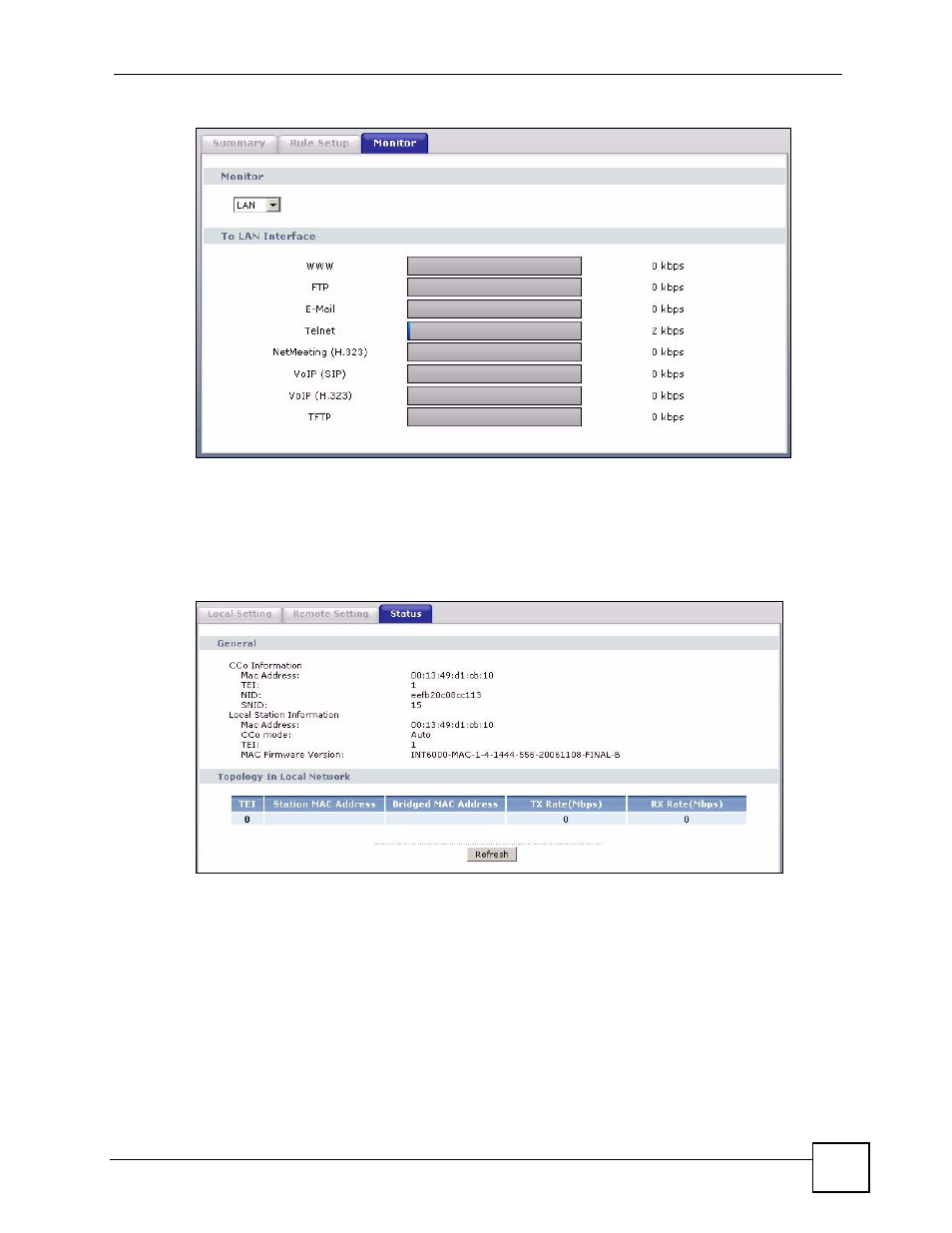

Figure 16 Status: Bandwidth Status

2.4.6 Status: Powerline Statistics

Click the Powerline Statistics hyperlink in the Status screen. The following screen will
appear.

Figure 17 Status: Powerline

See

Figure 46 on page 140

for information on the headings on this screen.

2.4.7 Status: Packet Statistics

Click the Packet Statistics hyperlink in the Status screen. Read-only information here
includes port status and packet specific statistics. Also provided are "system up time" and "poll
interval(s)". The Poll Interval(s) field is configurable. Not all fields are available on all
models
