Chapter 15 Bandwidth Management
P-660HWP-Dx User’s Guide
46
15.11 Bandwidth Monitor
To view the P-660HWP-Dx’s bandwidth usage and allotments, click Advanced > Bandwidth
MGMT > Monitor. The screen appears as shown. Select an interface from the drop-down list
box to view the bandwidth usage of its bandwidth rules. The gray section of the bar represents
the percentage of unused bandwidth and the blue color represents the percentage of bandwidth
in use. The screen refreshes every few seconds.

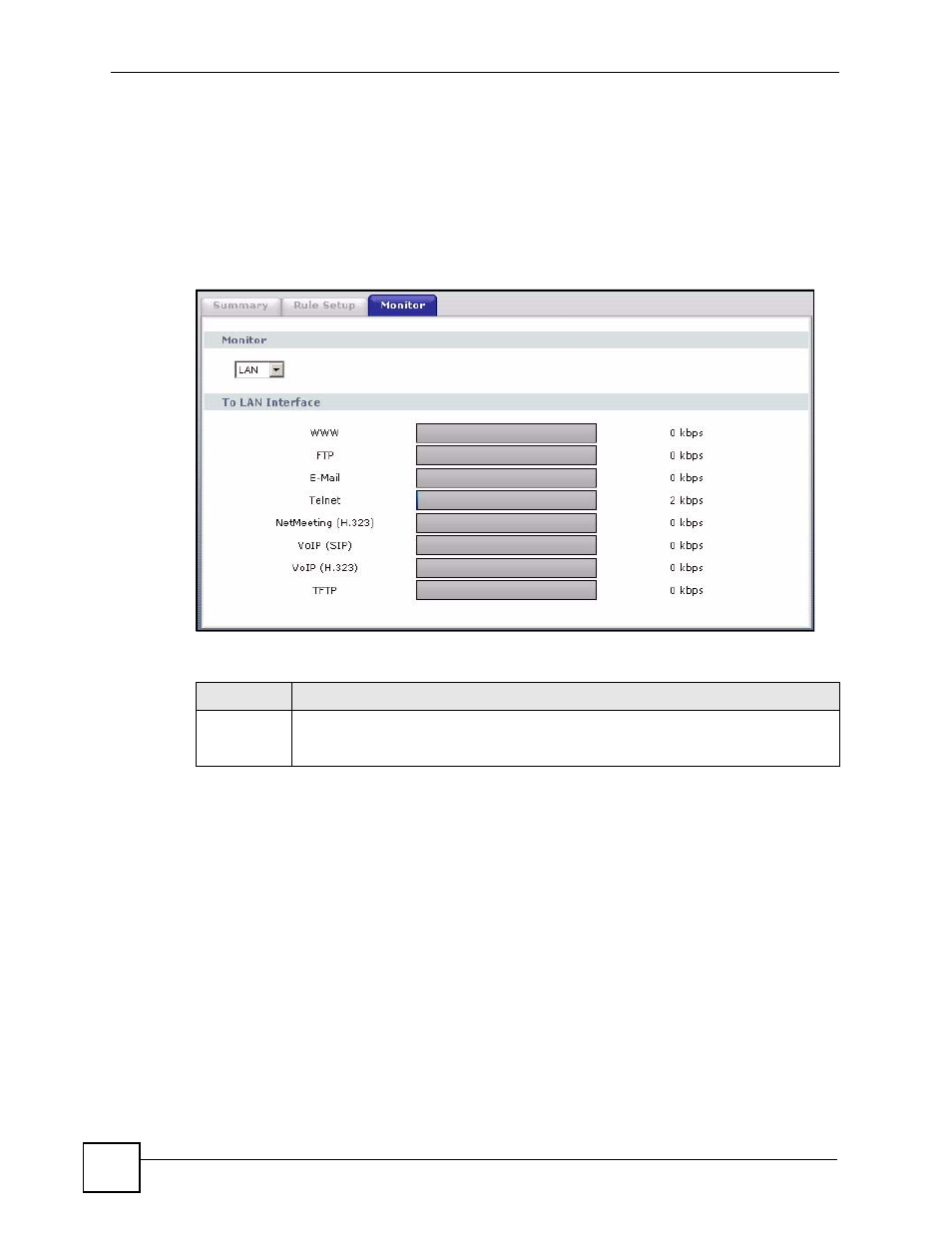

Figure 134 Bandwidth Management: Monitor
Table 96 Bandwidth Management Monitor
LABEL DESCRIPTION
Monitor This section allows you to select which network to monitor. You may select either a
LAN, WLAN, or WAN. After selecting a network to monitor, information on active
services and their bandwidth usage appears.
