iTherm ® 280 Programmer’s Guide Programming Codes
28-07764 Rev C Page 119
Function Set Printed Area in Page Mode Enhanced
ASCII [ESC] [SUB] W
L
>
H
><
L
>
H
>
L
>
H
>< H
L
>
H
>
Hexadecimal 1BH 1AH 57H
L
>
H
><
L
>
H
>
L
>
H
>< H
L
>
H
>
Decimal <27><26><87>
L
>
H
><
L
>
H
>
L
>
H
>< H
L
>
H
>
IPCL None
EPOS [ESC] W
Description This command is similar Set Print Area in Page Mode command above,
however it will force the complete page to be printer rather than only what
is used. It will define sub pages, however is intended to set the initial
page size.
Where:
L
>
H
> the x direction offset Min 0
L
>
H
> the y direction offset Min 0
L
>
H
> the width in dots Max(576)
< H
L
>
H
> the height in dots Max(3000)
This command should always be sent before or immediately after select page mode
command and will define the initial page size. This command differs from the Set Print
Area in Page Mode command in that it does not allow the page to be shortened. The
complete page is printed even if it is not used.

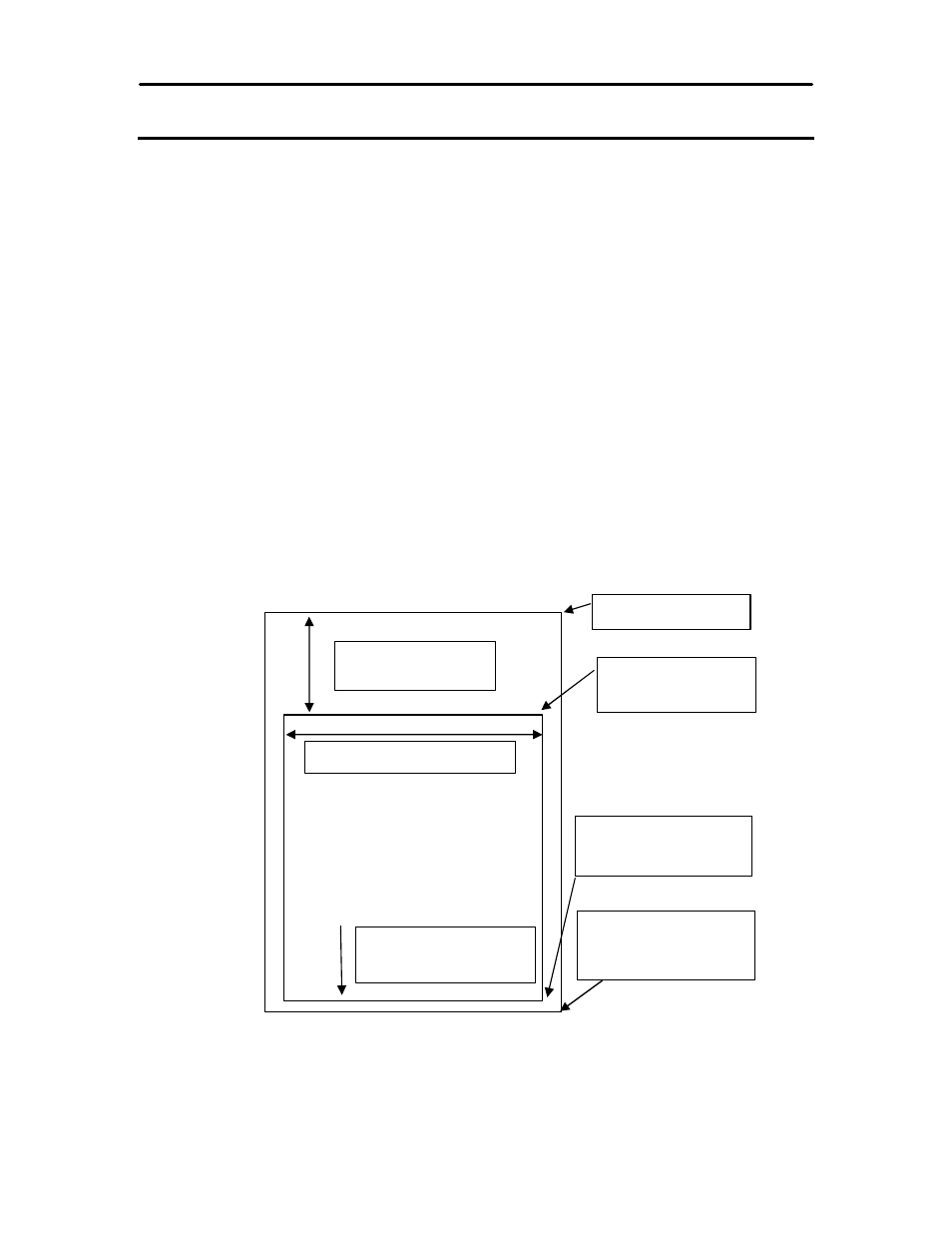

Figure 13 Defined Page mode printed area
Previous cut
edge
Start of page
definition
Max width is 576 dots
End of page
definition
Cut point after
bottom of page
definition
Cut to print offset
0.7 in or 18mm
Bottom most print data
Unused page area
is not printed
