R0E530640MCU00 User’s Manual 5. Debugging Functions
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 97 of 229
5.4.2 Showing
the Emulator Status in the Status Bar
The status of the emulator can be displayed in the status bar.
By right clicking on the status bar, the items are shown. Check the items you want to show in the status bar.

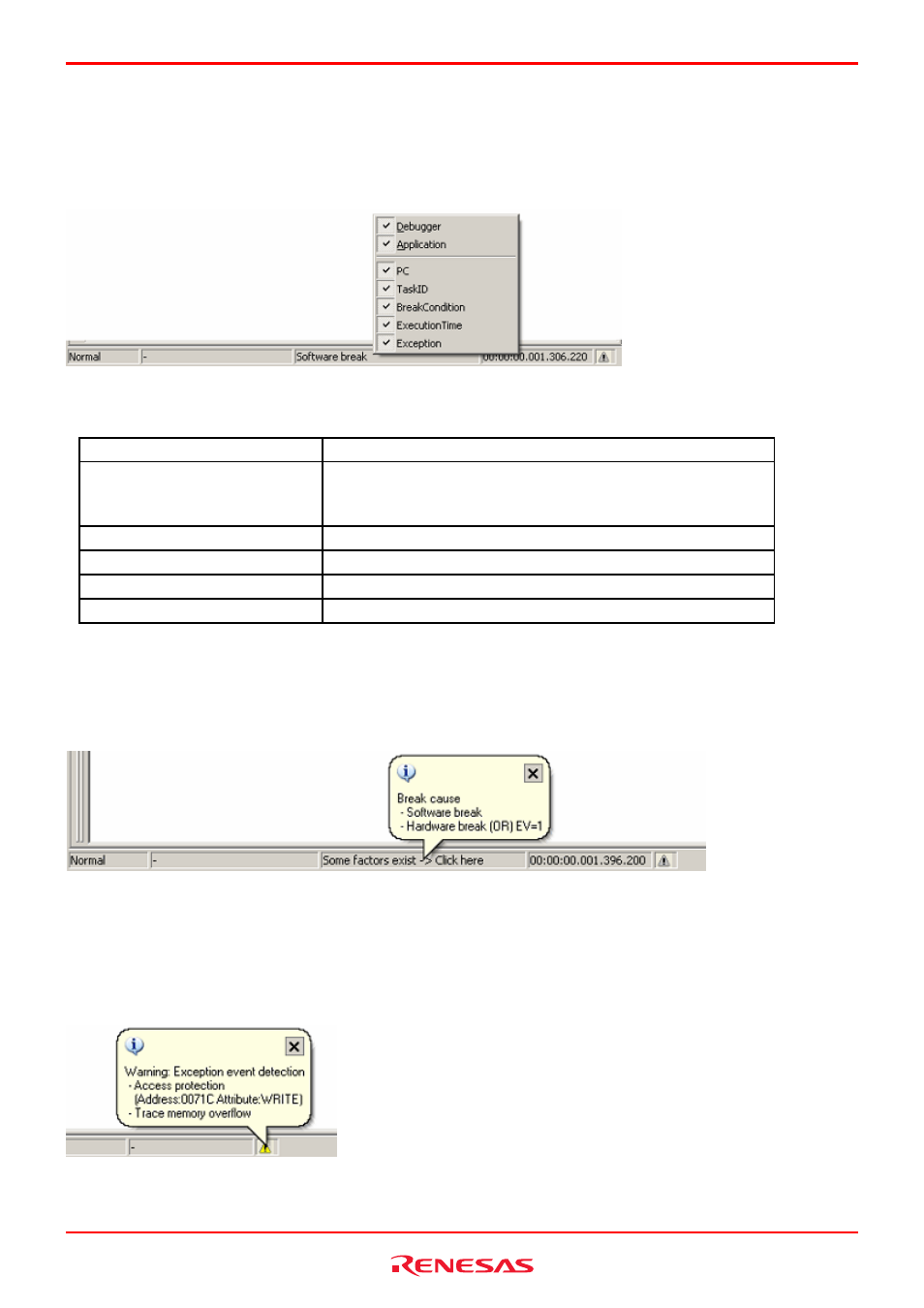

Figure 5.14 Status bar
Table 5.8 Items list of the emulator status shown in the status bar
Item Description
PC PC value
During execution: PC value
During Break: Normal
Task ID Task ID, task entry label
BreakCondition Break factors of the user program
ExecutionTime Result of time measurement
Exception Status of the exception event
(1) When more than one break factors occur.
When you click on the status bar area where the break factor is shown, a balloon is shown.
You can check the break factors being occurred in the balloon.
Figure 5.15 Example of break factors display when break factors occur
(2) When an exception event occurs.
When an exception event occurs, a warning is displayed in a status bar balloon.
The exception event that is not checked on the Exception Warning page of the Configuration Properties dialog box is not
shown.
Figure 5.16 Example of warning display when exceptional events occur
