R0E530640MCU00 User’s Manual

3. Tutorial

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 57 of 229



(2) Set a software break in a line of the tutorial function where p_sam ->s0=a[0]; is written.

(3) Choose Reset Go from the Debug menu. Processing will be halted by a break, and the trace information from start to break

will be displayed in the Trace window.

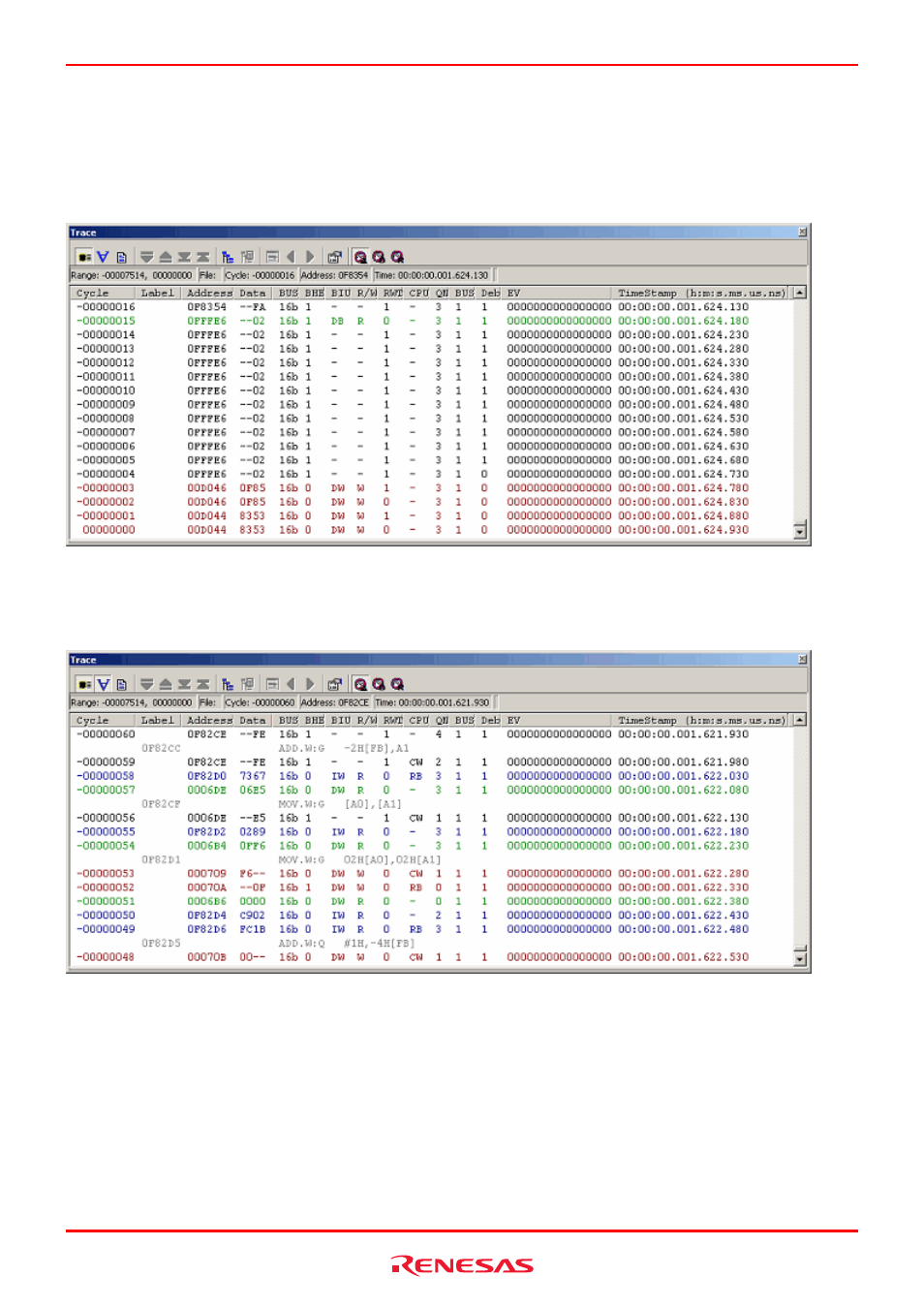

Figure 3.31 Trace window (free trace)


(4) A mixed display of bus, disassemble and/or source display is possible. Choosing Display Mode

−> DIS from the context

menu, you can display trace information in a bus and disassemble mixed mode.

Figure 3.32 Trace window (bus and disassemble mixed display)
