R0E530640MCU00 User’s Manual 5. Debugging Functions
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 168 of 229
5.11.20 Showing Code Coverage Results in the Editor Window
When the Editor window is displayed in source mode, coverage results are displayed in its code coverage column.
The positions corresponding to the source lines that have had instructions executed are highlighted in yellow.
If coverage related settings are changed in the Code Coverage window, the display of the corresponding code coverage column
is also updated.

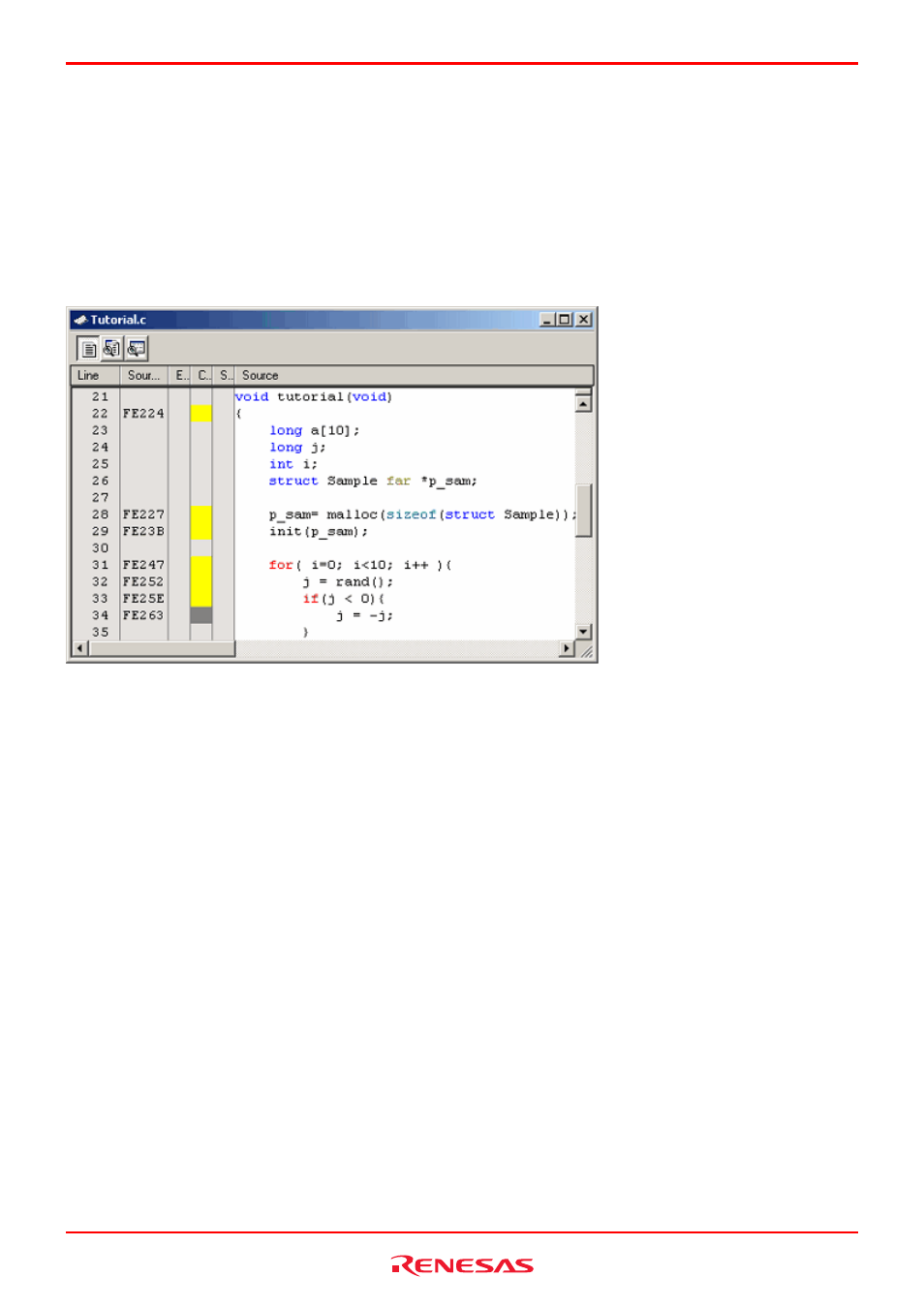

Figure 5.102 Example of code coverage results
