R0E530640MCU00 User’s Manual 3. Tutorial
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 55 of 229
3.17 Trace Facility
The trace facility of the E100 emulator has a special memory known as “trace memory” that can hold an execution record of
up to 4M bus cycles, which is always updated during program execution. The content of trace memory is displayed in the
Trace window.
Choose Code
−> Trace from the View menu or click the Trace toolbar button .
The Trace window shown below will be displayed.

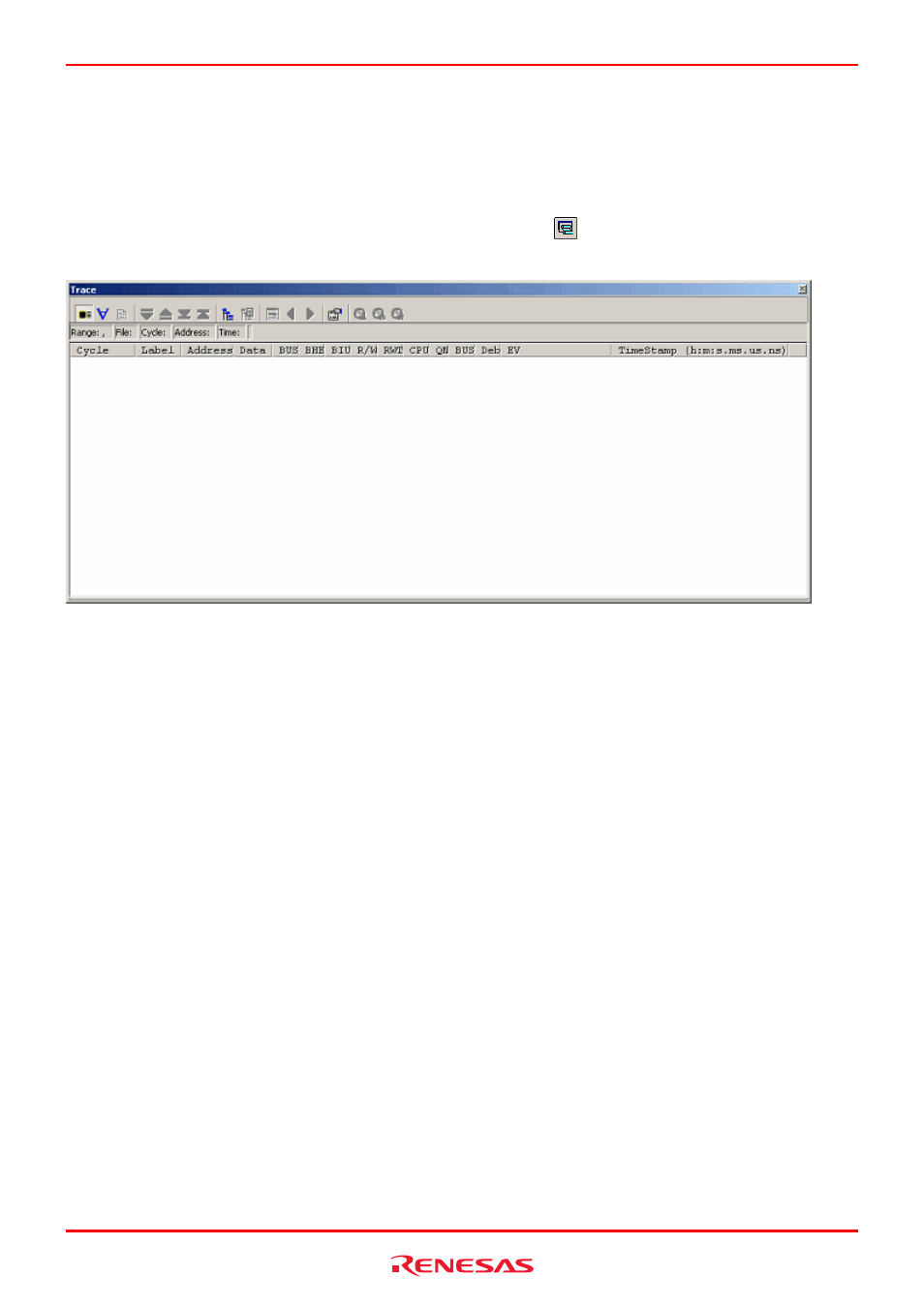

Figure 3.29 Trace window
The following outlines the trace facility and describes how to set.
