R0E530640MCU00 User’s Manual

5. Debugging Functions

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 102 of 229



5.6.3 Enabling/Disabling Software Breakpoints
Follow one of the following methods to enable or disable software breakpoints.

- From the Editor or the Disassembly window
- From the Breakpoints dialog box
- From the command line

(1) From the Editor or the Disassembly window

1. Place the cursor at the line where a software breakpoint exists and then select Enable/Disable Breakpoint from the context

menu. Or press the Ctrl and F9 keys together.

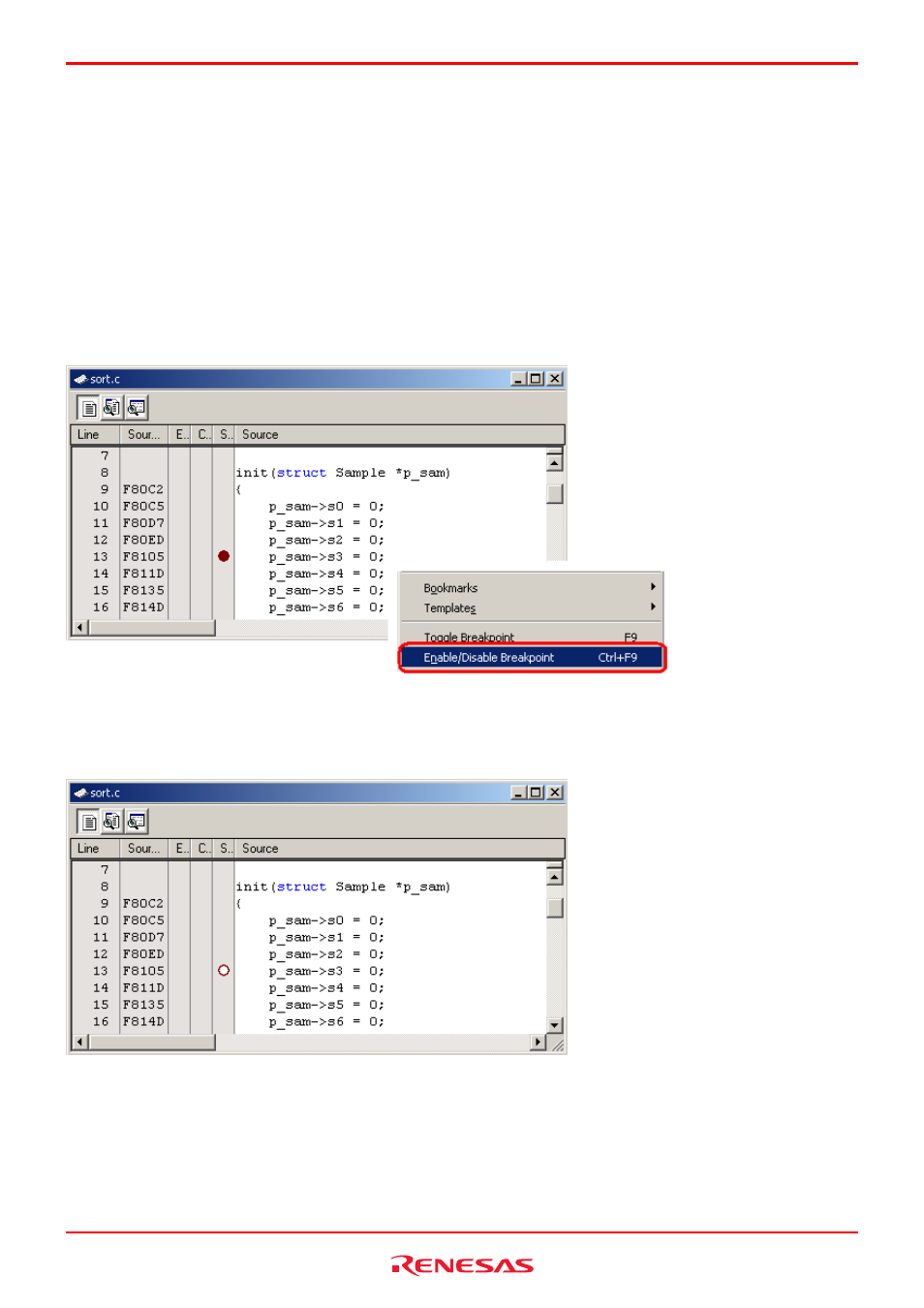

Figure 5.21 Editor window and popup menu


2. The software breakpoint is enabled or disabled alternately.

Figure 5.22 Editor window
