R0E530640MCU00 User’s Manual 5. Debugging Functions
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 133 of 229
5.9.8 Showing Trace Results
To check trace results, look at the Trace window. Trace results can be shown in one of the following display modes.
These display modes can be switched using Display Modes on the context menu of the Trace window.
There are five trace result display modes: Bus Display, Disassembled Display, Source Display and Mixed Display.
(1) Bus Display Mode
In the context menu, select Display Modes -> BUS. Bus information on each cycle traced are displayed. (Default display
mode)

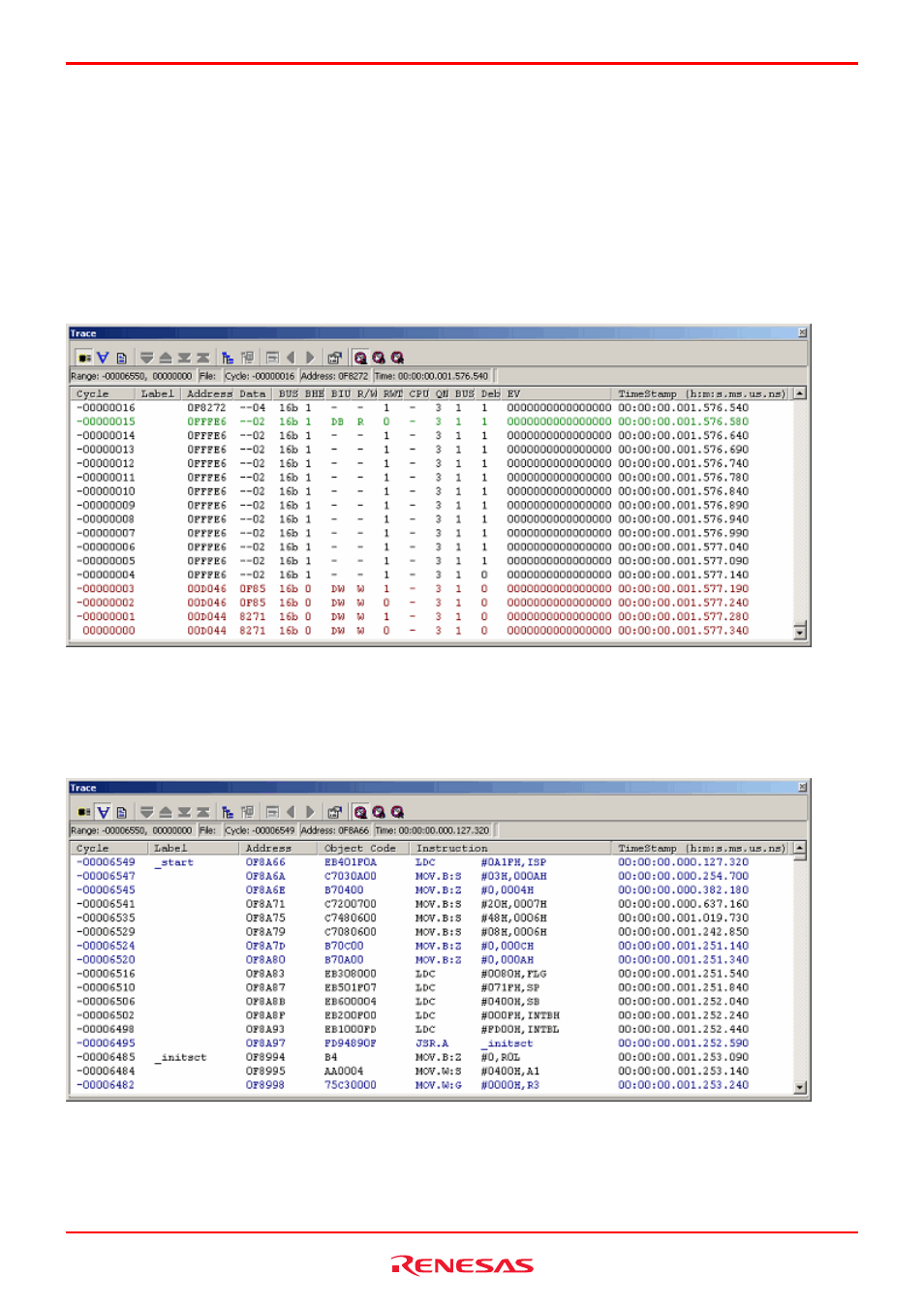

Figure 5.57 Trace window
(2) Disassembled Display Mode
From the context menu, choose Display Modes -> DIS. This display mode allows you to inspect the machine language
instructions executed.
Figure 5.58 Trace window
