R0E530640MCU00 User’s Manual 2. Setup
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 27 of 229
2.5 Connecting the Emulator Power Supply
Power is supplied from the included AC adapter to the emulator. The following shows how to connect the AC adapter.
(1) Turn OFF the emulator.
(2) Connect the DC cable of the AC adapter to the emulator.
(3) Connect the AC power cable to the AC adapter.
(4) Connect the AC power cable to the outlet.

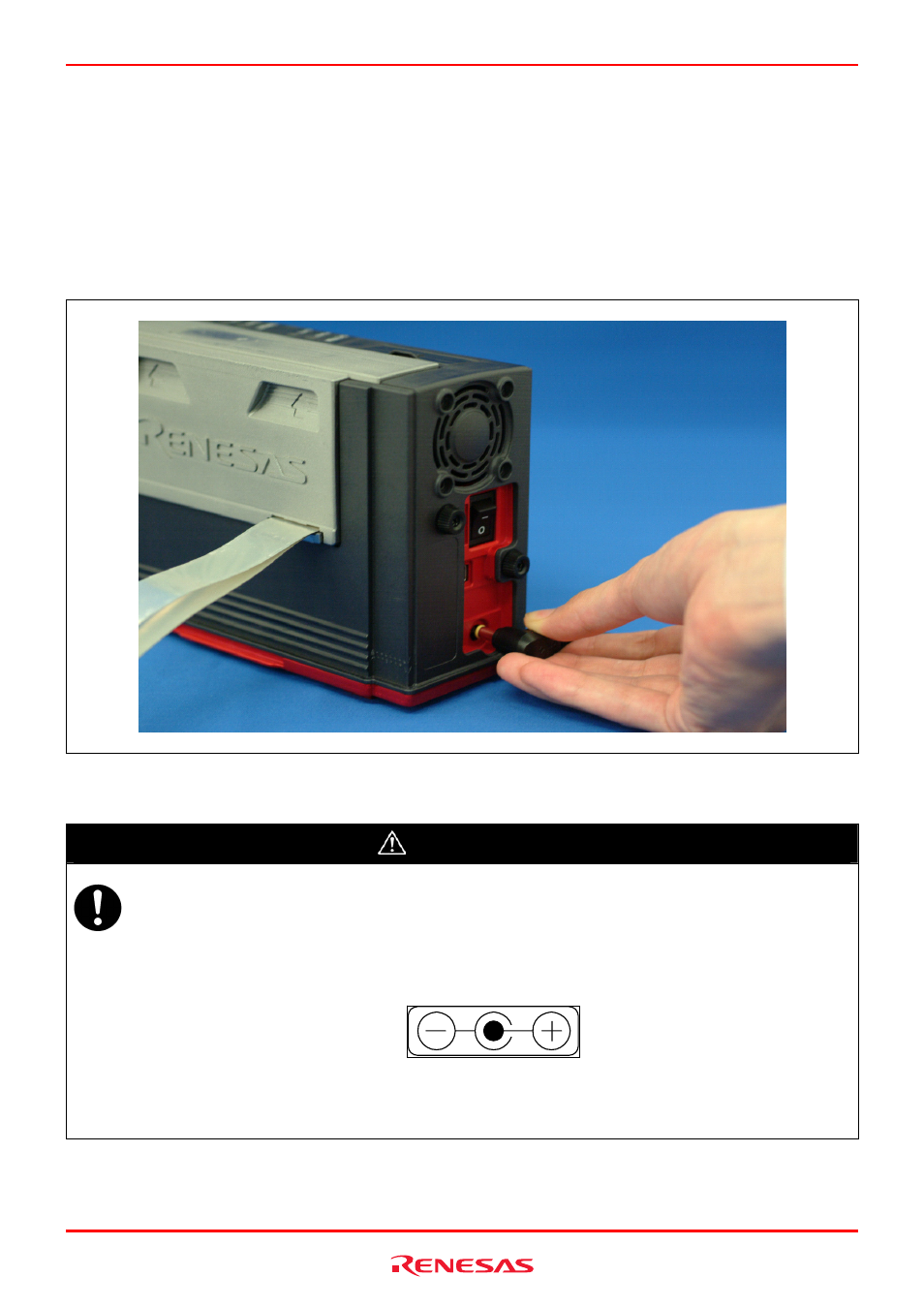

Figure 2.5 Connecting the emulator power supply
CAUTION
Cautions for AC Adapter:
z Use only the AC adapter included in the E100 package.
z The included AC adapter is exclusively for the E100 emulator main unit. Do not use it for other products.
z Before installing this product or connecting it to other equipment, disconnect the AC power cable from the
outlet to prevent injury or accident.
z The DC plug of the included AC adapter has the below polarity.
z
The included AC adapter has no power supply switch. The AC adapter is always active while connecting to the
AC power cable.
