R0E530640MCU00 User’s Manual

3. Tutorial

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 45 of 229

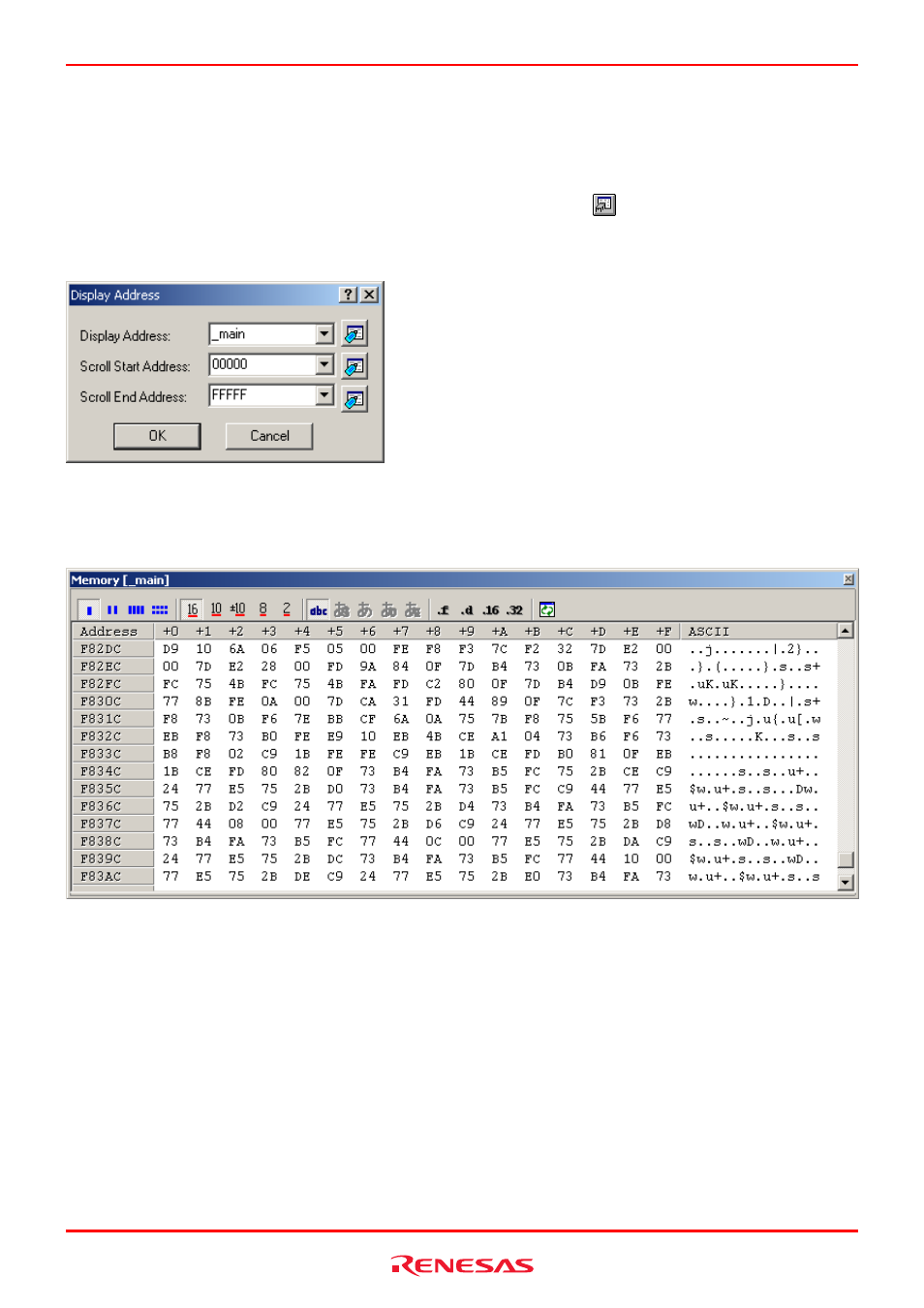

3.10 Checking Memory Contents

Specifying a label name, you can check in the Memory window the content of memory where the label is registered. For
example, you can check the content of memory corresponding to _main in byte size, as shown below.
Choose CPU

−> Memory from the View menu or click the Memory toolbar button

to display the Display Address dialog

box.
Enter “_main” in the edit box of the Display Address dialog box.

Figure 3.11 Display Address dialog box


Click the OK button. The Memory window will be displayed, showing a specified memory area.

Figure 3.12 Memory window
