R0E530640MCU00 User’s Manual

5. Debugging Functions

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 191 of 229



5.13.7 Measuring Task Profiles
Measure execution performance one task at a time.

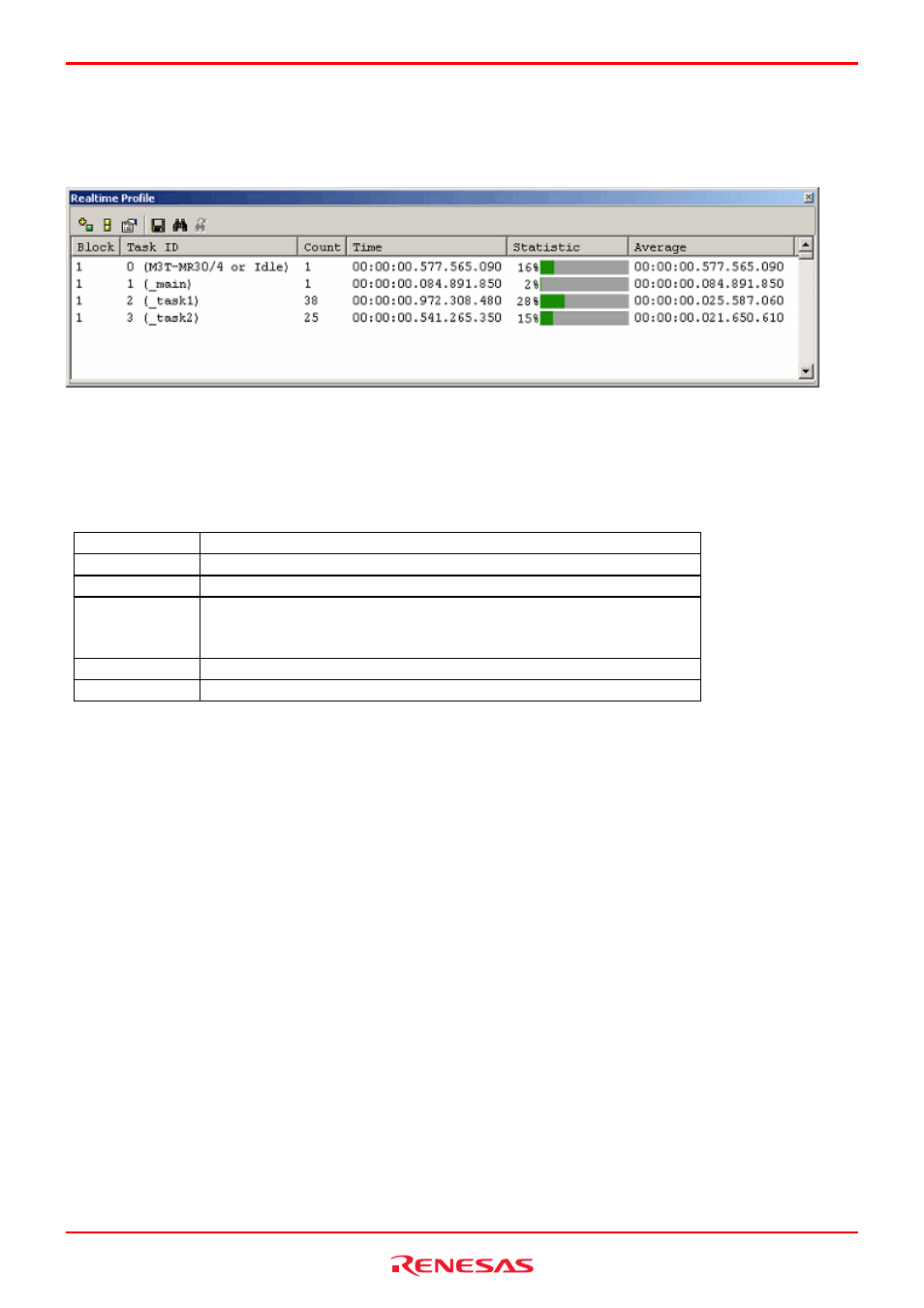

Figure 5.133 Realtime Profile dialog box (task profile):


The following shows detail information in each column.

Table 5.42 Details on each column

Block Block

number

Task ID

Task ID, entry address

Count

Number of times a task is called

Time

Cumulative time of task execution
The time stamp is displayed in the form shown below.
Hours:minutes:seconds.milliseconds.microseconds.nanoseconds

Statistic

Ratio of task

Time to Go-Break execution time

Average

Average execution time per measurement performed


Disabled tasks are displayed in gray.
The acquired profile measurement results are accumulated in memory until the user clears them.
