R0E530640MCU00 User’s Manual

1. Outline

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 18 of 229



1.3.2 Names and Functions of each part of the emulator

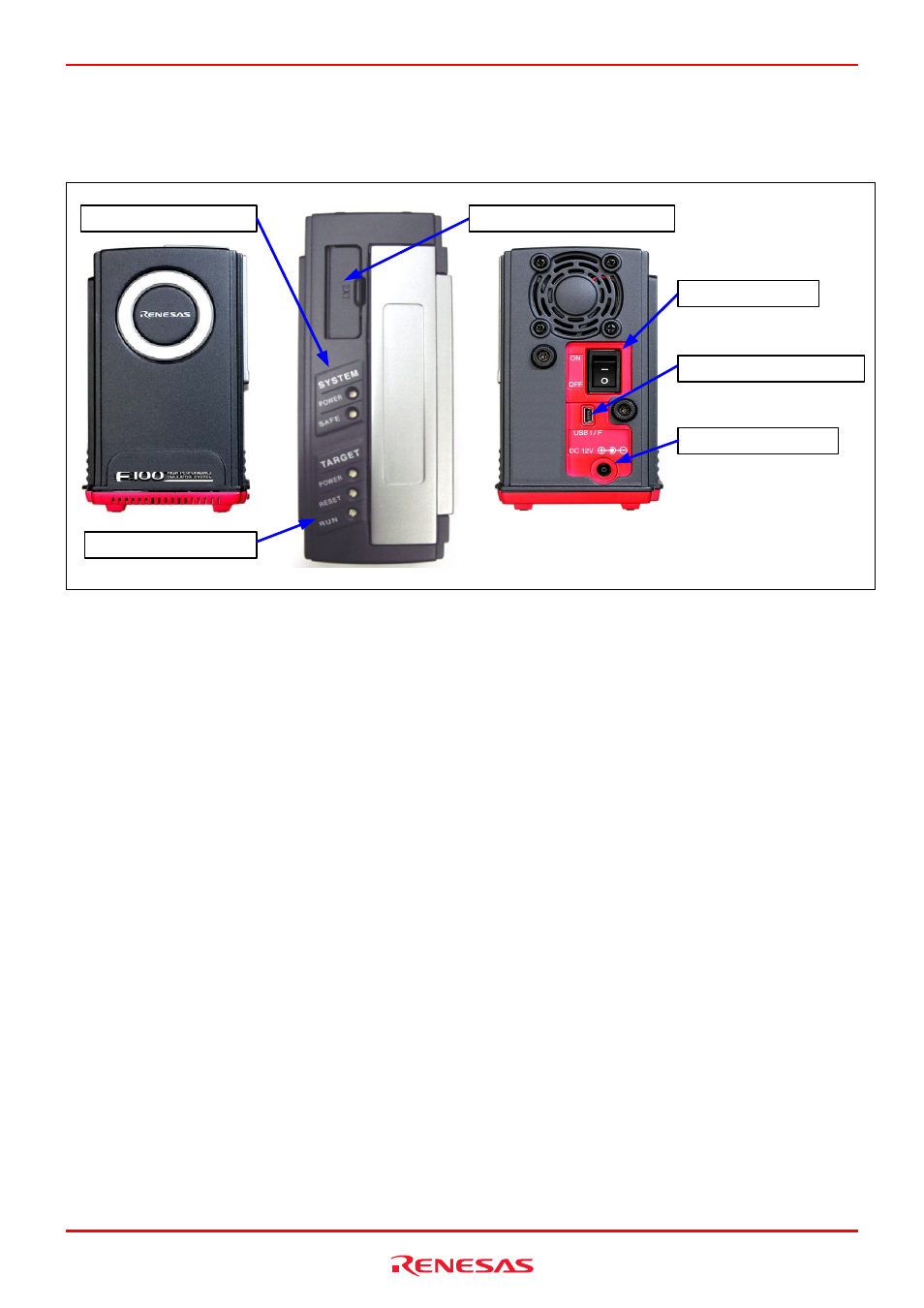

Figure 1.2 shows the names of each part of the emulator.

(1) Power switch

(2) USB cable connector

(3) Power connector

(4) External trigger connector

(5) System status LEDs

(6) Target status LEDs

Figure 1.2 Names of each part of the emulator


(1) Power switch

This is a switch to turn ON/OFF the emulator.


(2) USB cable connector

This is a connector to connect the USB cable of the emulator.


(3) Power connector

This is a connector to connect the DC cable of the AC adapter power of the emulator.


(4) External trigger connector

This is a connector to connect the external trigger cable of the emulator.
