R0E530640MCU00 User’s Manual

3. Tutorial

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 43 of 229


3.8 Altering Register Contents

Choose CPU

−> Registers from the View menu or click the Registers toolbar button

. The Register window shown below will be

displayed.

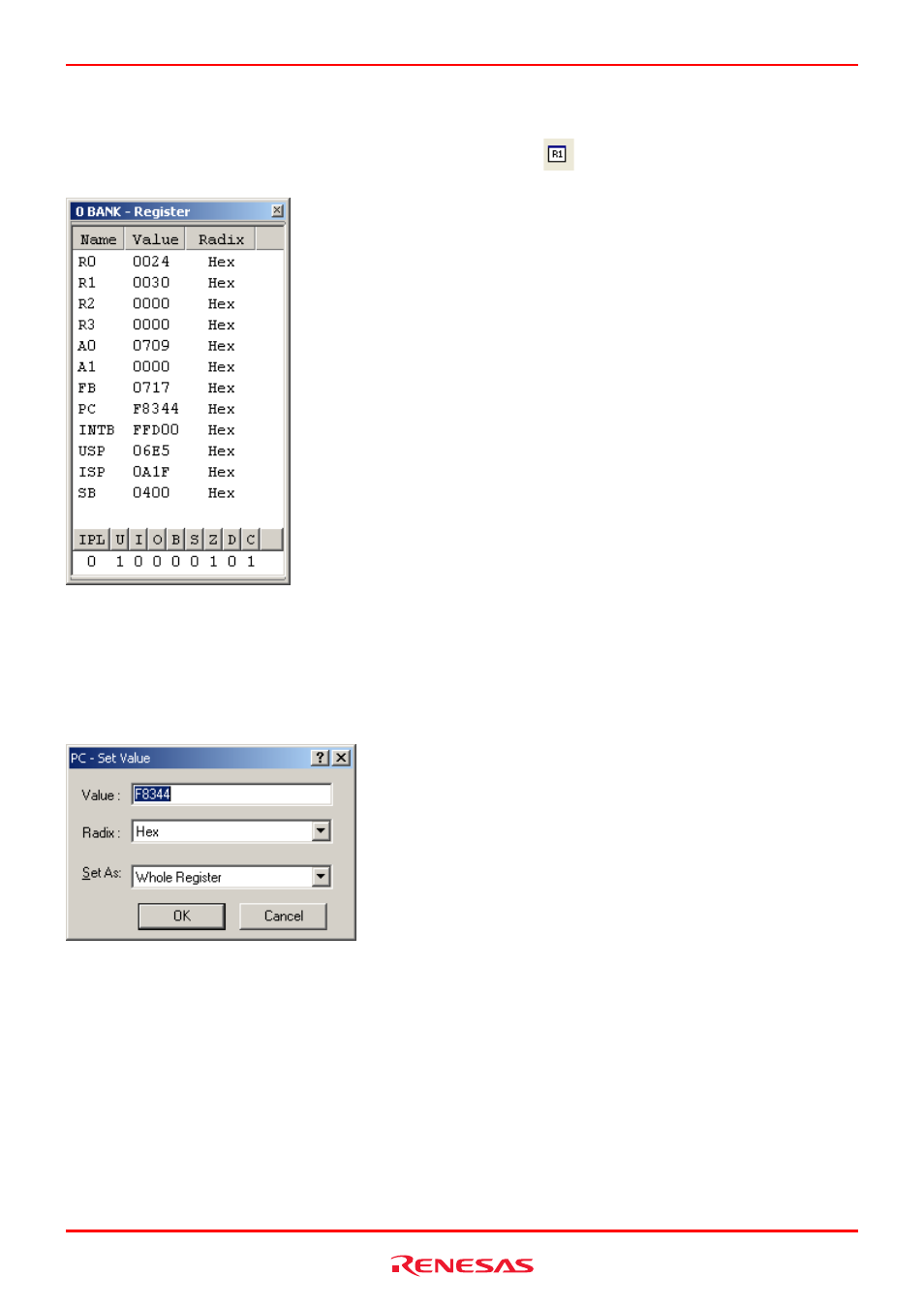

Figure 3.8 Register window


The content of any register can be altered.
Double-click the line for the register you want to alter. The dialog box shown below will be displayed, so enter a new value
with which you want to alter the register.

Figure 3.9 Set value dialog box (PC)
