2.9.2 Connecting to a 100-pin 0.5mm Pitch Foot Pattern
The following is a procedure of connecting to a 100-pin 0.5mm pitch foot pattern on the user system using the
R0E0100TNPFK00 (not included). For details on the R0E0100TNPFK00 (not included), refer to its user's manual.
(1) Attach the NQPACK100SD-ND included with the R0E0100TNPFK00 to the user system.
(2) Attach the YQPACK100SD included with the R0E0100TNPFK00 to the NQPACK100SD-ND and secure it with the YQ-
GUIDEs.
(3) Attach the R0E0100TNPFK00 to the YQPACK100SD.
(4) Attach the CN2 side of the R0E0100TNPFK00 to the CN2 side of the flexible cable.
(5) Attach the CN1 side of the R0E0100TNPFK00 to the CN1 side of the flexible cable.
(5)
(1) 100-pin 0.5mm pitch
(PLQP0100KB-A) foot pattern
No. 1 pin
User system
FLASH version
MCU, etc.
Evaluation with
actual MCU
: These four products are
available in one package.
YQPACK100SD
NQPACK100SD-ND
(2)
(3)
YQ-GUIDE (×4)
These corners
are not round.
*
HQPACK100SD
(not included)
R0E0100TNPFK00
(4)
*

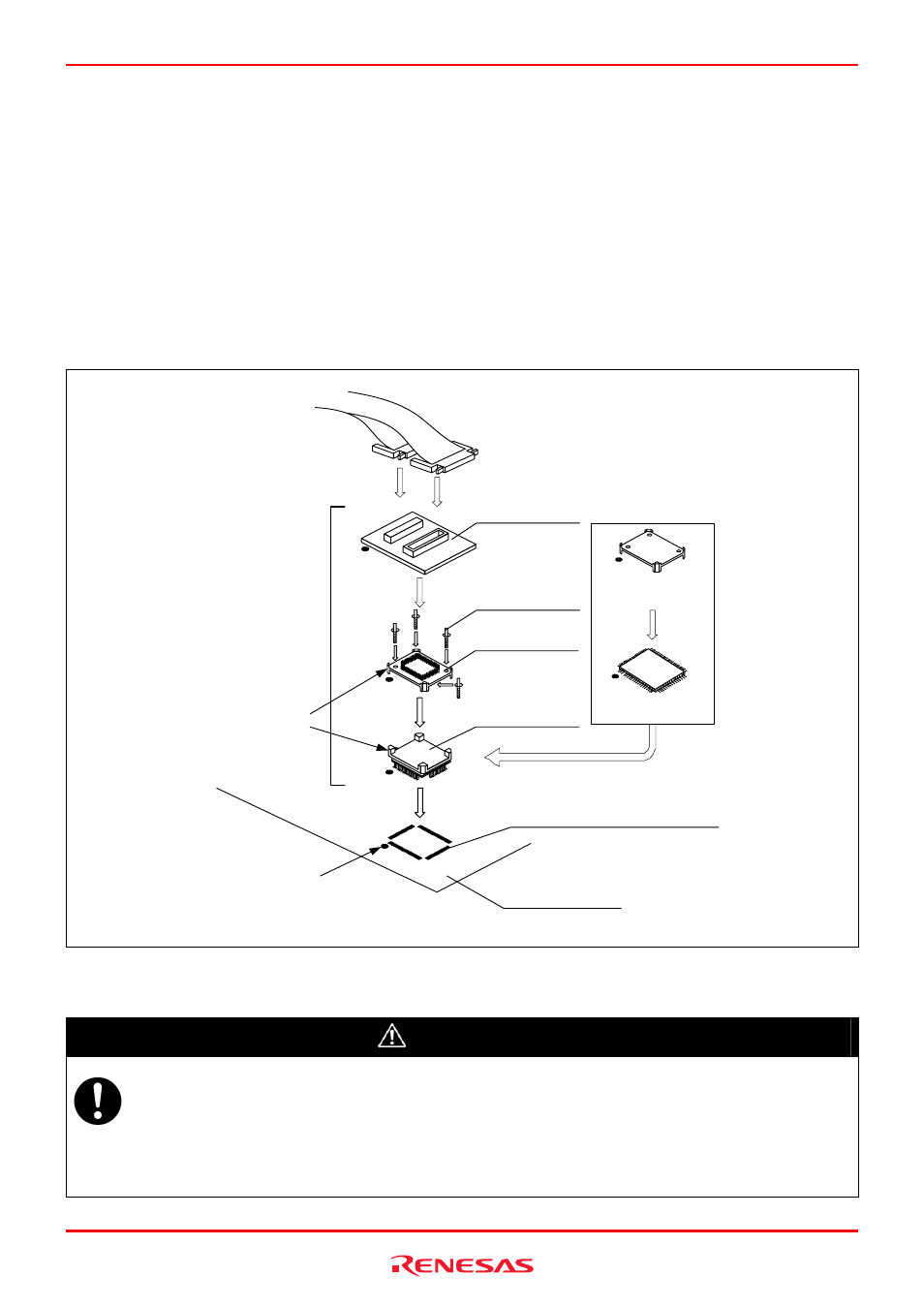

Figure 2.12 Connecting to a 100-pin 0.5mm pitch foot pattern
CAUTION
Notes on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
z The connectors of the R0E0100TNPFK00 are guaranteed for only 50 insertion/removal iterations.
z For purchasing the HQPACK100SD, contact the following:
Tokyo
Eletech Corporation http://www.tetc.co.jp/e_index.htm
