R0E530640MCU00 User’s Manual 5. Debugging Functions
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 149 of 229

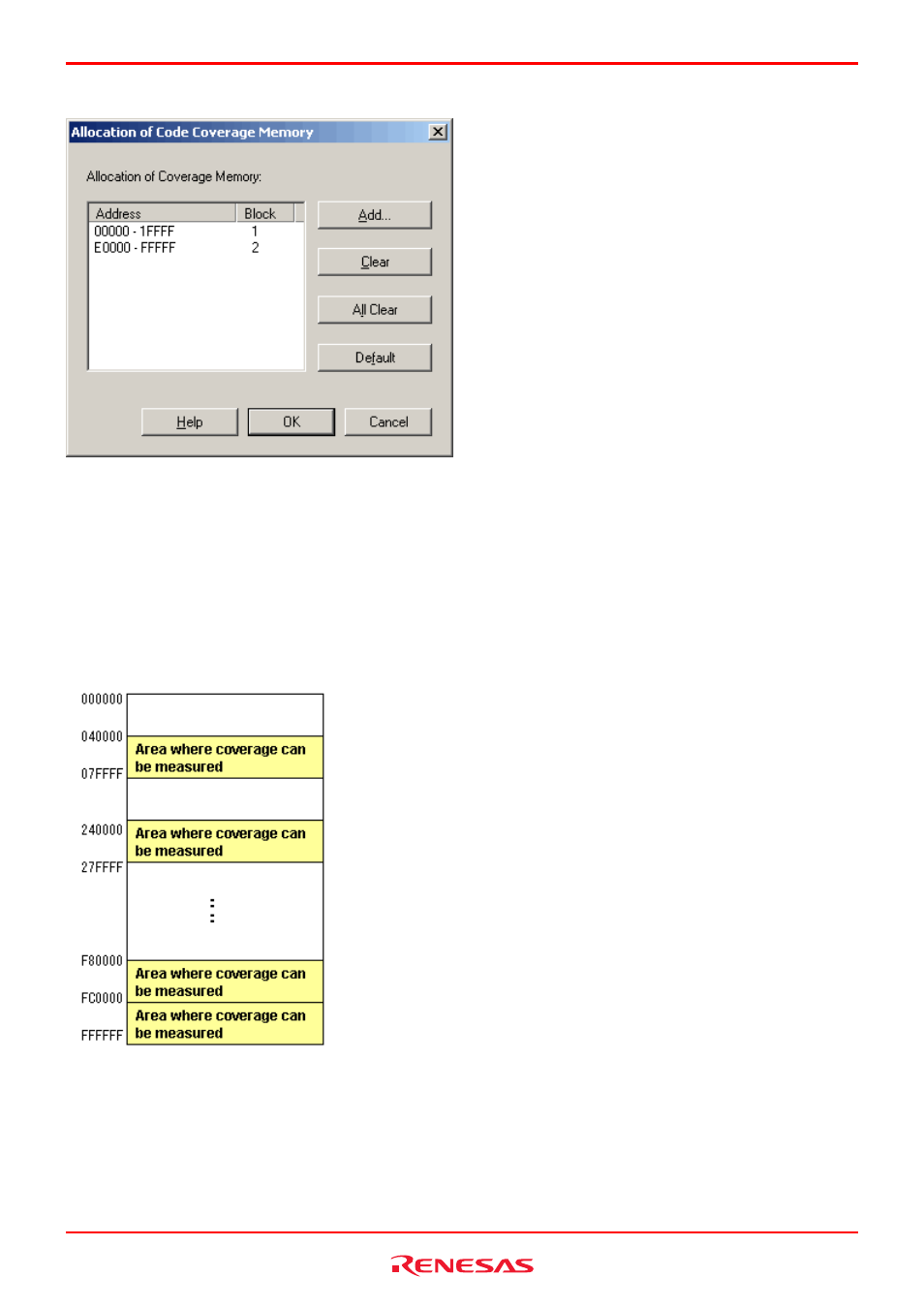

Figure 5.73 Allocation of Code Coverage Memory dialog box
When using the C0 level coverage and C1 level coverage, you can specify any of 1–8 blocks (maximum 2 Mbytes) each
beginning with the 256-Kbyte boundary and any of 1–8 blocks (maximum 1 Mbyte) each beginning with the 128-Kbyte
boundary as a code coverage measurement area respectively.
Contiguous blocks or noncontiguous blocks, either one, can be set.
With initial settings, the coverage memory is allocated to addresses in the ROM and RAM areas.
Figure 5.74 Schematic of coverage memory allocation
