R0E530640MCU00 User’s Manual 5. Debugging Functions
REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 155 of 229
3. The address range you have changed will be displayed in the upper area of the Code Coverage window.

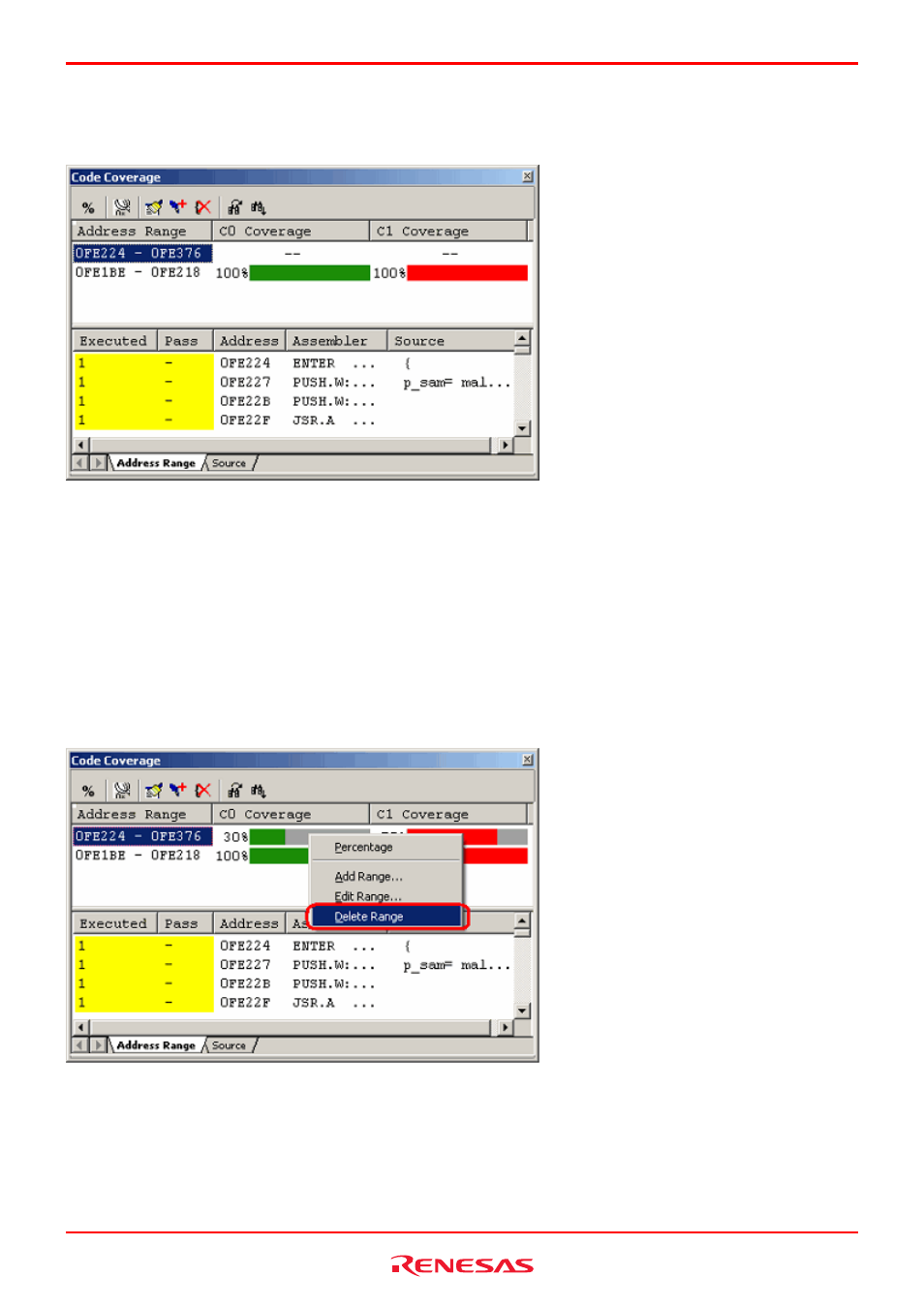

Figure 5.82 Code Coverage window
5.11.7 Removing Address Ranges
Follow the procedure described below to remove address ranges.
(1) From the Address Range sheet of the Code Coverage window
1. Select an address range you want to remove in the Address Range sheet and while holding it selected, choose Delete Range
from the context menu.
Figure 5.83 Code Coverage window
