R0E530640MCU00 User’s Manual

5. Debugging Functions

REJ10J1733-0100 Rev.1.00 Apr. 01, 2008
Page 163 of 229


(3) Clicking the C0 Coverage and the File columns in that order

The data is sorted in order of decreasing coverage separately for each file.
Example:
File Function

C0

Coverage

--------------------------------------
file1.cpp

func3 80%

■■■■■■■■

file1.cpp

func4 70%

■■■■■■■

file1.cpp

func1 40%

■■■■

file1.cpp

func2 10%

file2.cpp

func3 90%

■■■■■■■■■

file2.cpp

func2 60%

■■■■■■

file2.cpp

func1 20%

■■

file3.cpp

func2 30%

■■■

file3.cpp

func3 10%

file3.cpp

func1 0%



5.11.13 Searching for Unexecuted Lines

Search a selected address range or function for unexecuted lines. When you click the Find button

in the toolbar, the Find

dialog box shown below is displayed.

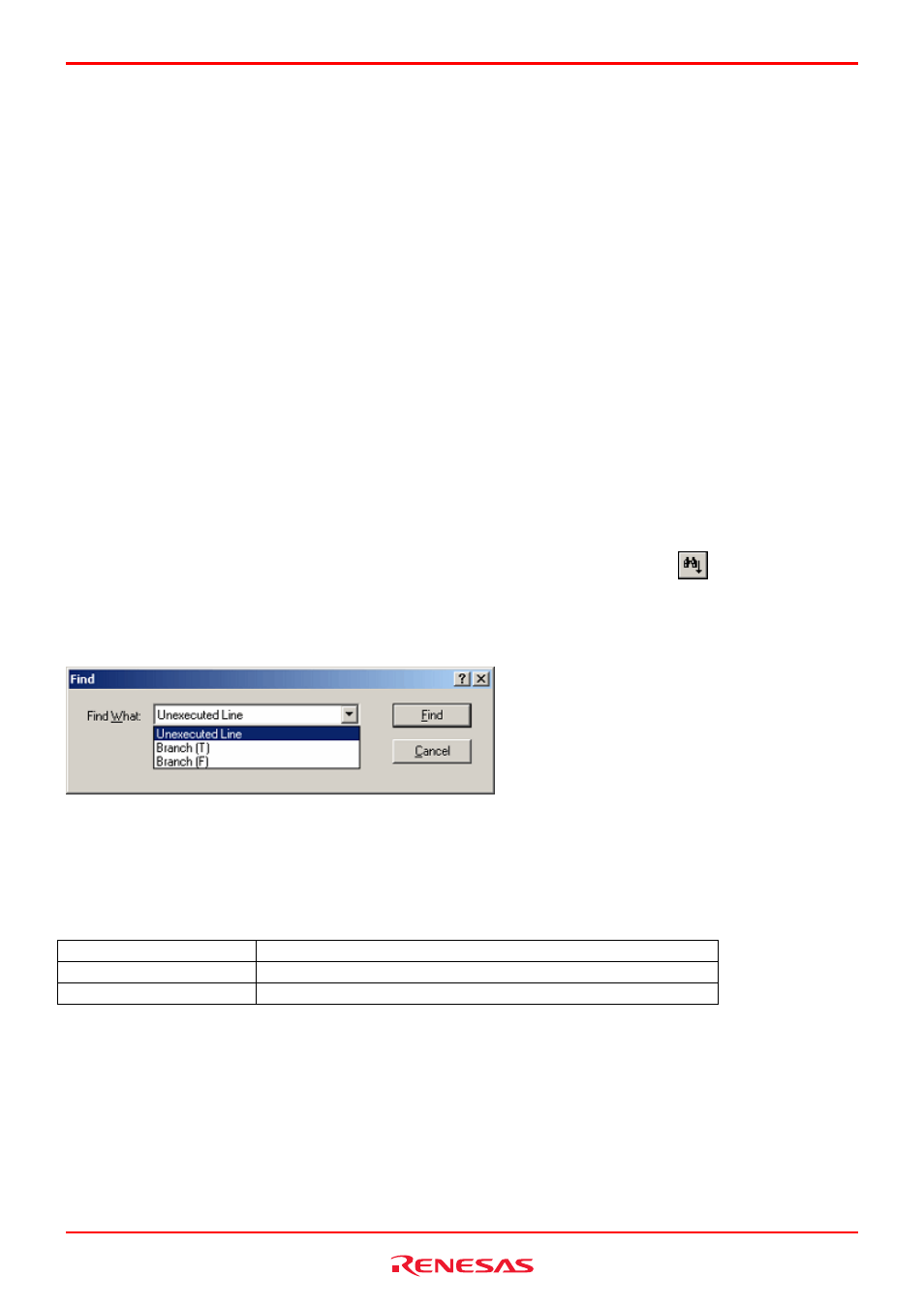

Figure 5.94 Find dialog box


Following three search options are available.

Table 5.33 Search options
Unexecuted Line

Instructions not executed yet

Branch (T)

Branch instructions that passed on only TRUE side.

Branch (F)

Branch instructions that passed on only FALSE side.


Clicking the Search button starts a search.
When a matching instruction is found, the line of that instruction is highlighted.
When no matching instructions are found, a message is displayed.
