RS232 PC-FAX EXPANDER Type 185 USER’S GUIDE
13
E
n
g
lis
h 7 RECEPTION
A RS232 PC-FAX EXPANDER Type 185 reception will be either direct, or
through the fax machine memory. The reception path is set by the fax machine's
User Parameter Switch 21 Digit 1. See section 5 for more Switch 21 information.
The Quick Start section, page 5, gives a general description of receiving fax mes-
sages. Consult your PC faxing application's user manual for specific procedures.
7.1 DIRECT RECEPTION
1. The User Parameter Switch 21 is set for PC Direct Reception.
Digit 0 is 1 and digit 1 is 0, digit 2 is 0. To program Switch 21, see page 8.
2. The PC faxing application is running and set for automatic answering so
that incoming faxes will be received without operator assistance.
If the PC can't receive the faxes the fax machine will print them automati-
cally. If the fax also can't print the faxes it will store them in fax memory. See
“Substitute Reception”, this page.

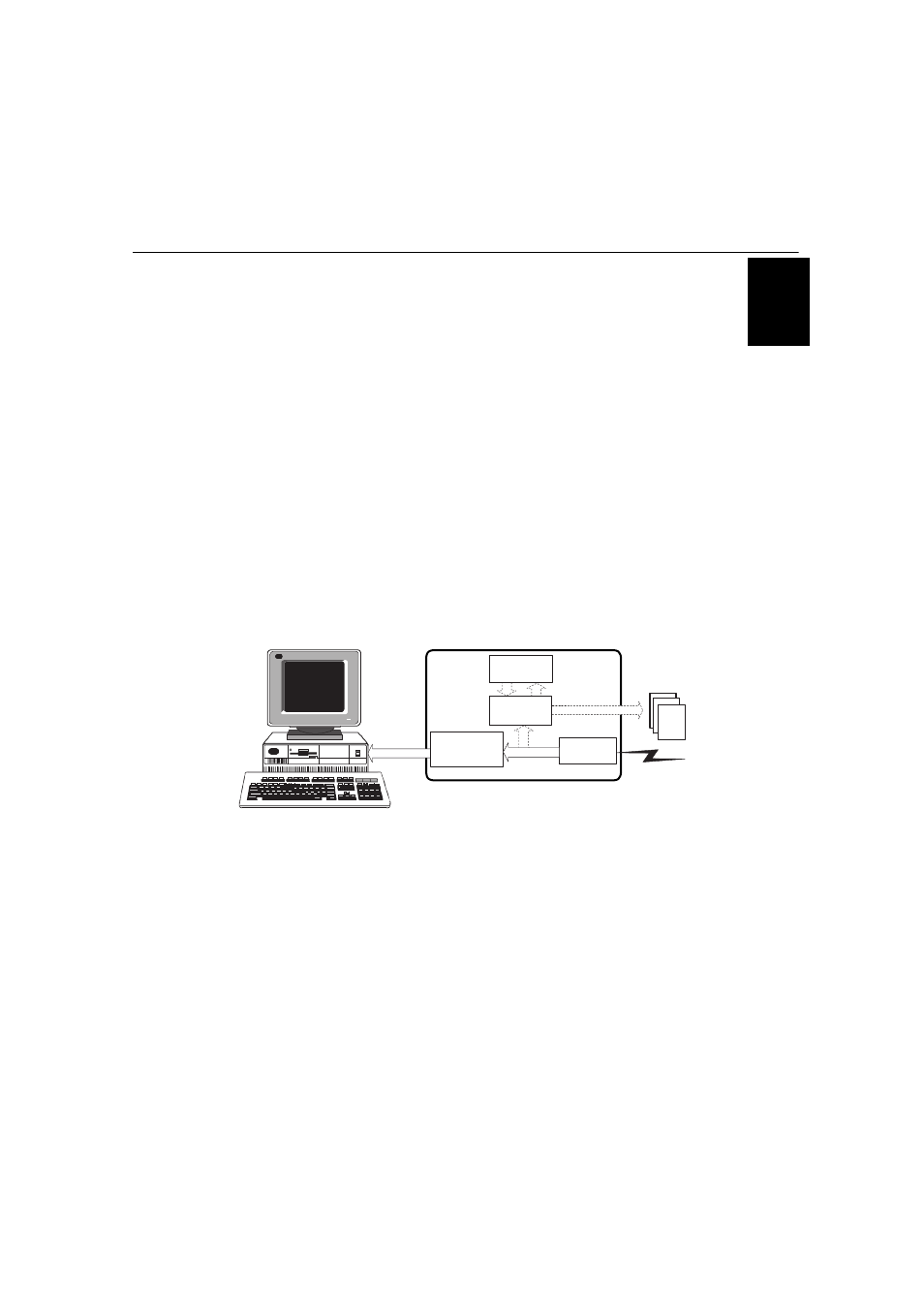

SUBSTITUTE RECEPTION
For more details, refer to “Substitute Reception” in the fax machine manual.
PRINT
SUB RX
MODEM
DIU
(RS232 Port)
DIU : The Digital Interface Unit, or RS232 Port
DCR : The Data Compression/Reconstruction Unit
FAX WITH PC-FAX EXPANDER
DCR
MEMORY
OR
