General Description 2-13

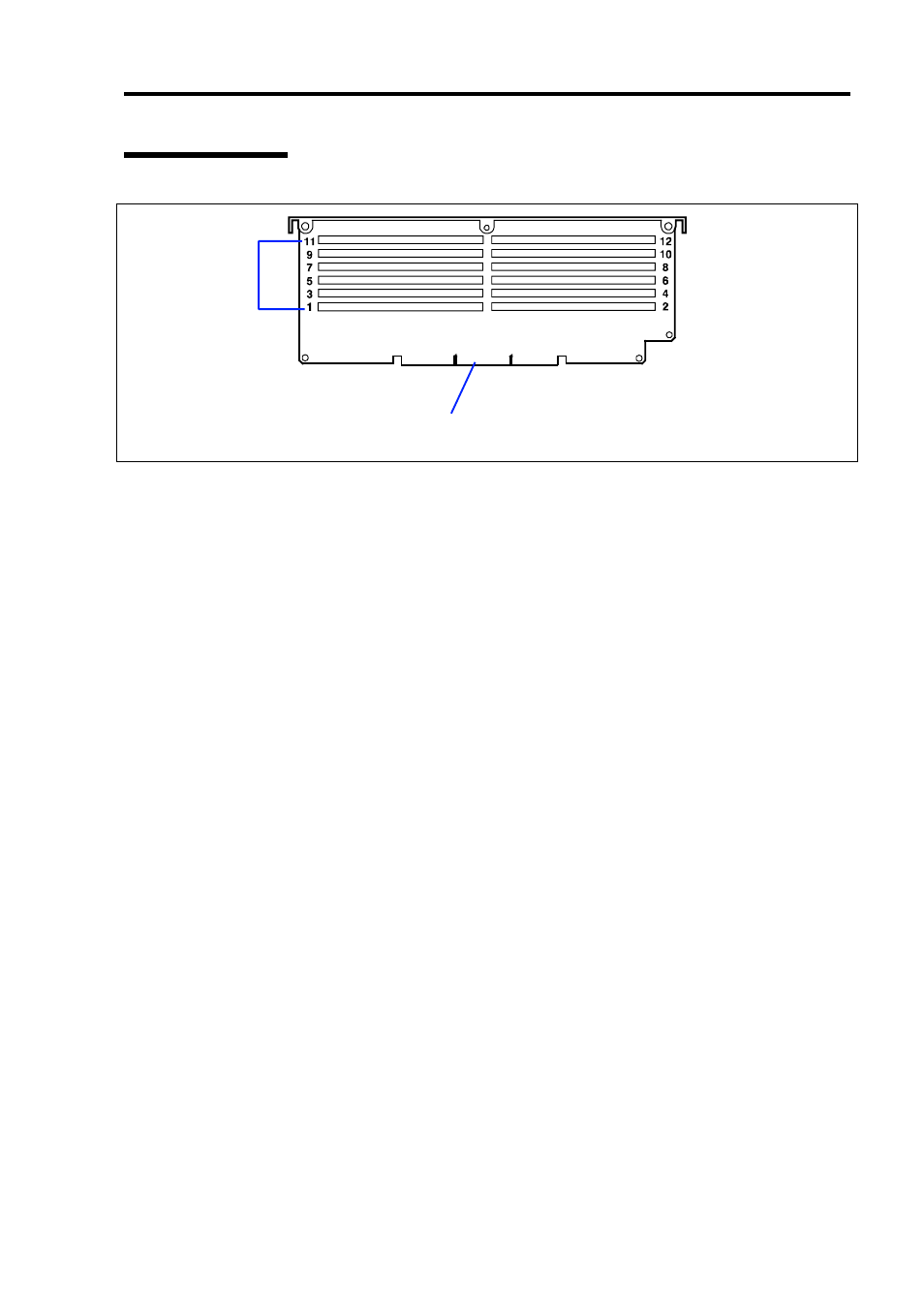

Memory Board

1

DIMM socket
The default DIMMs are installed in the sockets 1 to 4.
The optional DIMMs should be installed in the sockets 5 to 12.
To enable the online sparing / memory mirroring feature, see Chapter 9 "DIMM".

2

Processor board interface connector

1

2
