General Description 2-7

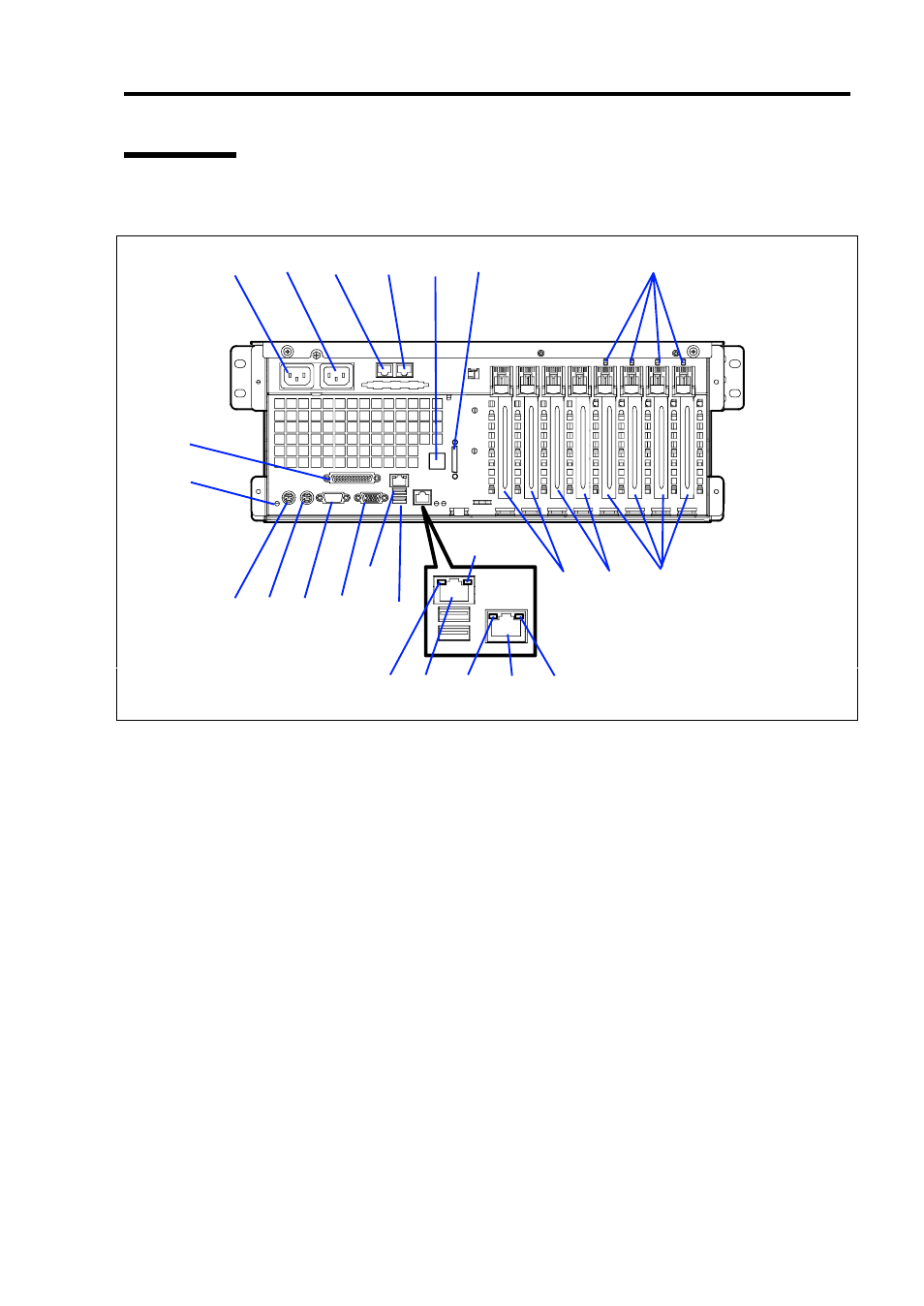

Rear View
See Chapter 8 for detail information on lamp indication.
1 AC inlet 1
The AC inlet 1 is connected with the power cord coming with the server.
2 AC inlet 2
The AC inlet 2 is used when the additional power supply unit is installed in the server.
3 ICMB-1 (left) ICMB-2 (right) connector
The ICMB connector is connected to a device having the ICMB interface.
4 Serial port B connector
The serial port B connector is used to connect the server to a device with the serial interface.
The server cannot be directly connected to a leased line through the connector.
For using this port, the rear serial cable that comes with your server should be connected to
this connector.
5 External SCSI connector
The external SCSI connector is used to connect the server to external SCSI devices. For the
connection, attached SCSI cable is necessary and some cable connections must be changed
on the baseboard.
6 PCI slot power lamp (green) (upper)
The PCI slot power lamp is lit when the power of the PCI slot being on.
6 PCI slot fault lamp (amber) (lower)
PCI slot fault lamp blinks when the hot plug PCI function is enabled with Windows 2000. The
lamp also goes on if a fault occurs in the PCI board installed into the slot or the slot itself.
7 Printer port connector
The printer port connector is connected with a printer with the Centronics interface.
