NEC Server 140Rc-4 User Manual
Page 305
Upgrading Your Server 9-19
7.

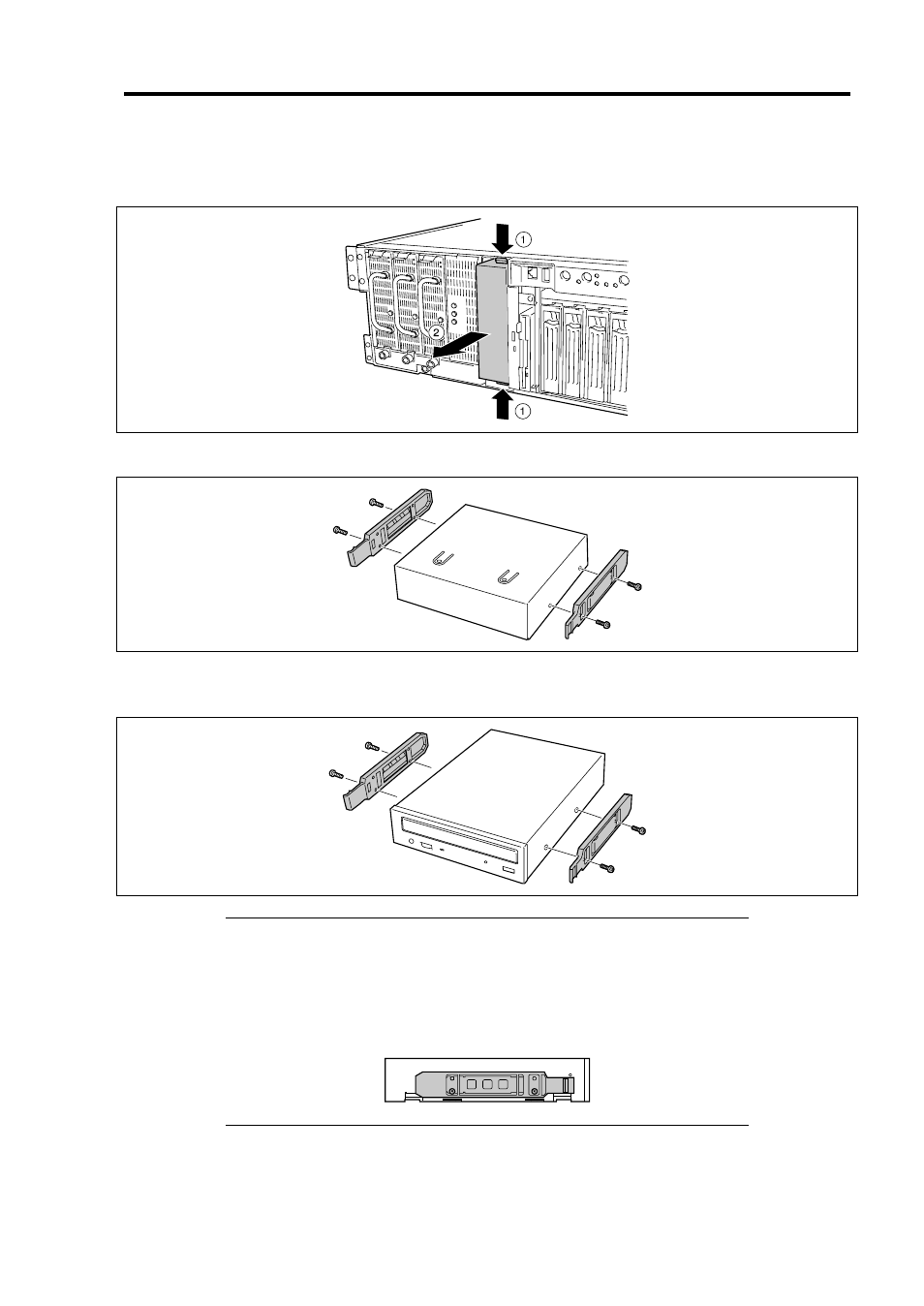

While pressing the locking tabs on the both sides of the dummy cover, pull the dummy
cover out of the server.
8.
Remove the screws securing the latching rails mounted on the dummy cover.
9.
Tighten the two mounting screws coming with the server to secure a latching rail to each
side of the drive.
IMPORTANT:
Use the bottom raw screw holes on the latching rail (see figure
below).
Always use the screws coming with the server. Using longer screws
or those of different diameter may cause the device to be broken.
