9-6 Upgrading Your Server
DEVICE INSTALLATION OR REMOVAL PROCEDURE
Install or remove a component from the server in the following procedure.
Hard Disk Drive
The server has five slots to install hard disks (Ultra 320 SCSI) in the 3.5-inch disk bay of the front
of the server.
IMPORTANT:
„ Do not use any hard disks that are not authorized by NEC. Installing
a third-party hard disk may cause a failure of the server as well as
the hard disk. Purchase hard disks of the following models:
– N8150-161F (18.1 GB, 10,000 rpm, Ultra 320)
– N8150-162F (36.3 GB, 10,000 rpm, Ultra 320)
– N8150-163F (73.2 GB, 10,000 rpm, Ultra 320)
– N8150-171F (146 GB, 10,000 rpm, Ultra 320)
– N8150-164F (18.1 GB, 15,000 rpm, Ultra 320)
– N8150-165F (36.3 GB, 15,000 rpm, Ultra 320)
– N8150-172F (73.2 GB, 15,000 rpm, Ultra 320)
„ To make array configuration, refer to the manual that comes with
the optional disk array controller board.

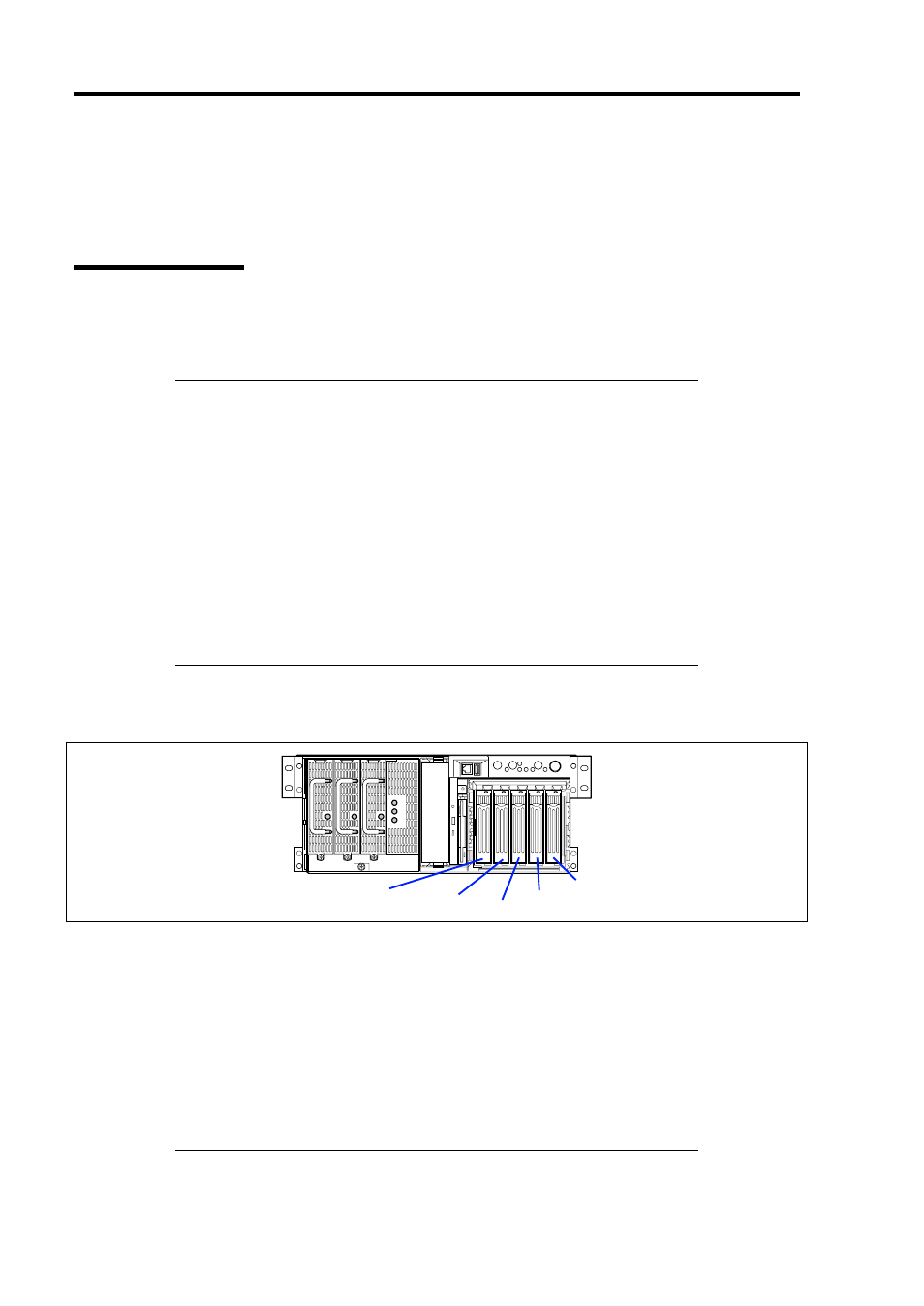

All five slots may contain a hard disk approximately 25.4 mm (1 inch) high. The SCSI IDs of ID0
through ID4 are always assigned to hard disks as shown below.
The 3.5-in. disk bay is connected to the Ultra 320 SCSI (A) connector on the baseboard when the
server is shipped.
To use the hard disk drives in a disk array configuration, reconnect the cable from the connector on
the baseboard to the disk array controller connector. In the disk array configuration, use the same
model of hard disk drives.
A dummy tray or dummy sponge is installed in the 3.5-inch disk bay. The purpose of a dummy tray
or dummy sponge is to increase the cooling effect in the server. Install a dummy tray or dummy
sponge block in slots not containing a hard disk drive.
IMPORTANT: Use the appropriate dummy tray or dummy sponge
block for this server.
SCSI ID0
SCSI ID1
SCSI ID2
SCSI ID3
SCSI ID4
