Network configuration 39

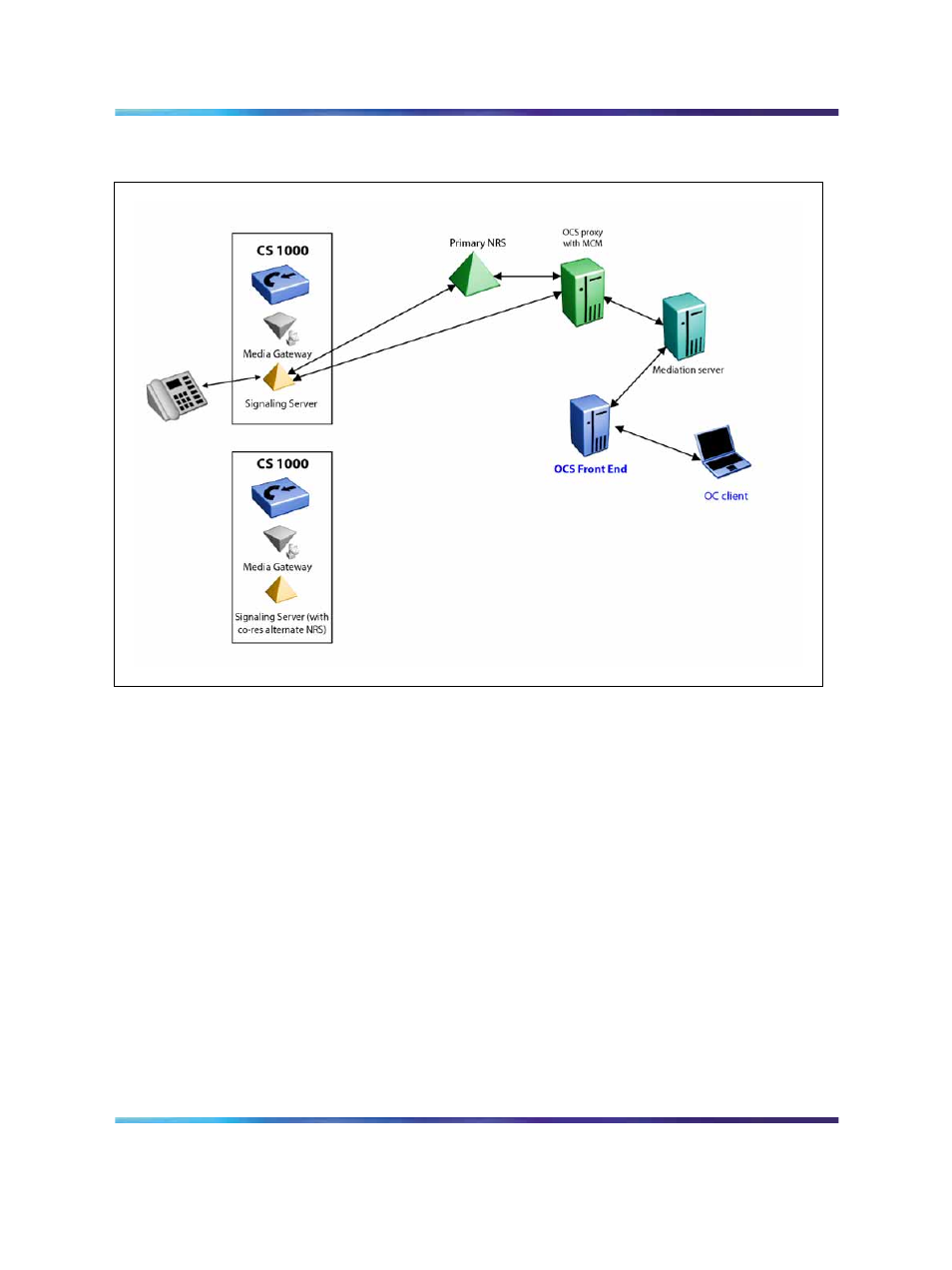

Figure 11
Medium network configuration
Large network
A large network can include the following components:
• multiple CS 1000 systems with Media Gateway and Signaling Server
• configured collaborative NRS
• redundant Primary and Alternate NRS
• more than 5000 users
• high availability with system redundancy for OCS 2007
You will need:
• an OCS 2007 Enterprise Edition server with Load Balancers to Front
End the pool of Enterprise Edition servers
• a redundant OCS Proxy servers that run MCM 3.0 (the recommended
deployment requires that MCM reside on a separate OCS Proxy server)
• Mediation servers
• Load Balancers
